Driving modes
6.4 Installing/removing the outrigger beams
Operating manual 3 302 736 en 6 - 15
GMK4090
xx.xx.xxxx
6.4 Installing/removing the outrigger beams

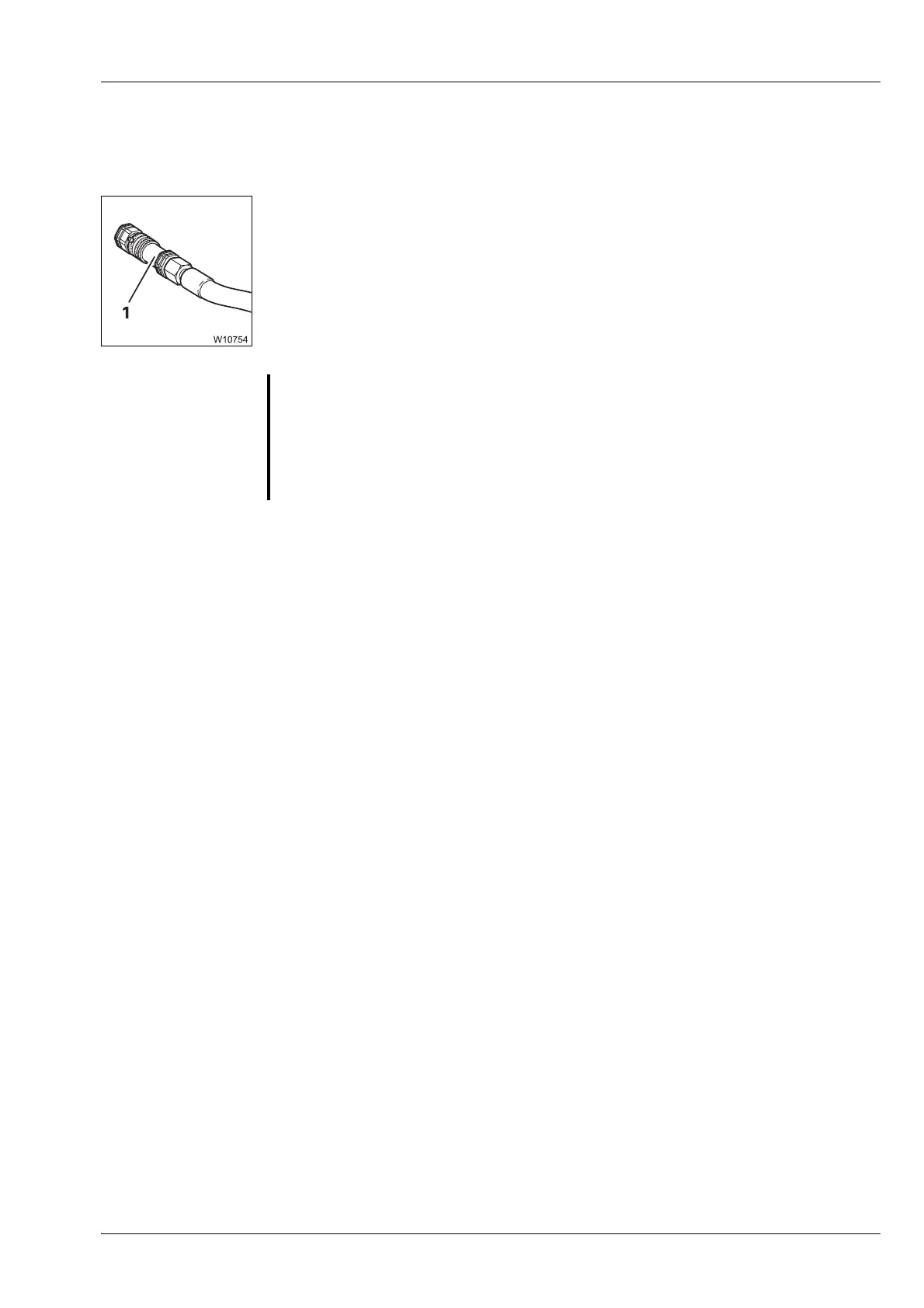

To rig the outrigger beams, the outriggers must be fitted with hydraulic con-
nections (1) which can be separated.
During rigging, each outrigger beam is removed and mounted as a com-
plete “package”, consisting of inner and outer outrigger beams, cylinders
and add-on parts.
You will require the following equipment with a sufficient load bearing
capacity:
– An auxiliary crane
– Suitable lifting gear and guide ropes
– A chain hoist
– A separate vehicle
Dimensions and weights of the outrigger beams;
à p. 1 - 10.
G
Risk of truck crane overturning if not properly supported!
Loads may only be lifted when the truck crane is supported on all outrigger
beams. The lifting capacity tables for the
Free on wheels operating position
are not designed for installation and removal of the outrigger beams.
For this reason, always use an auxiliary crane for installation and removal
of the outrigger beams.
