Rigging work
12.7 Outriggers – Overview – MAXbase slewing range type
12 - 36 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
Three / One

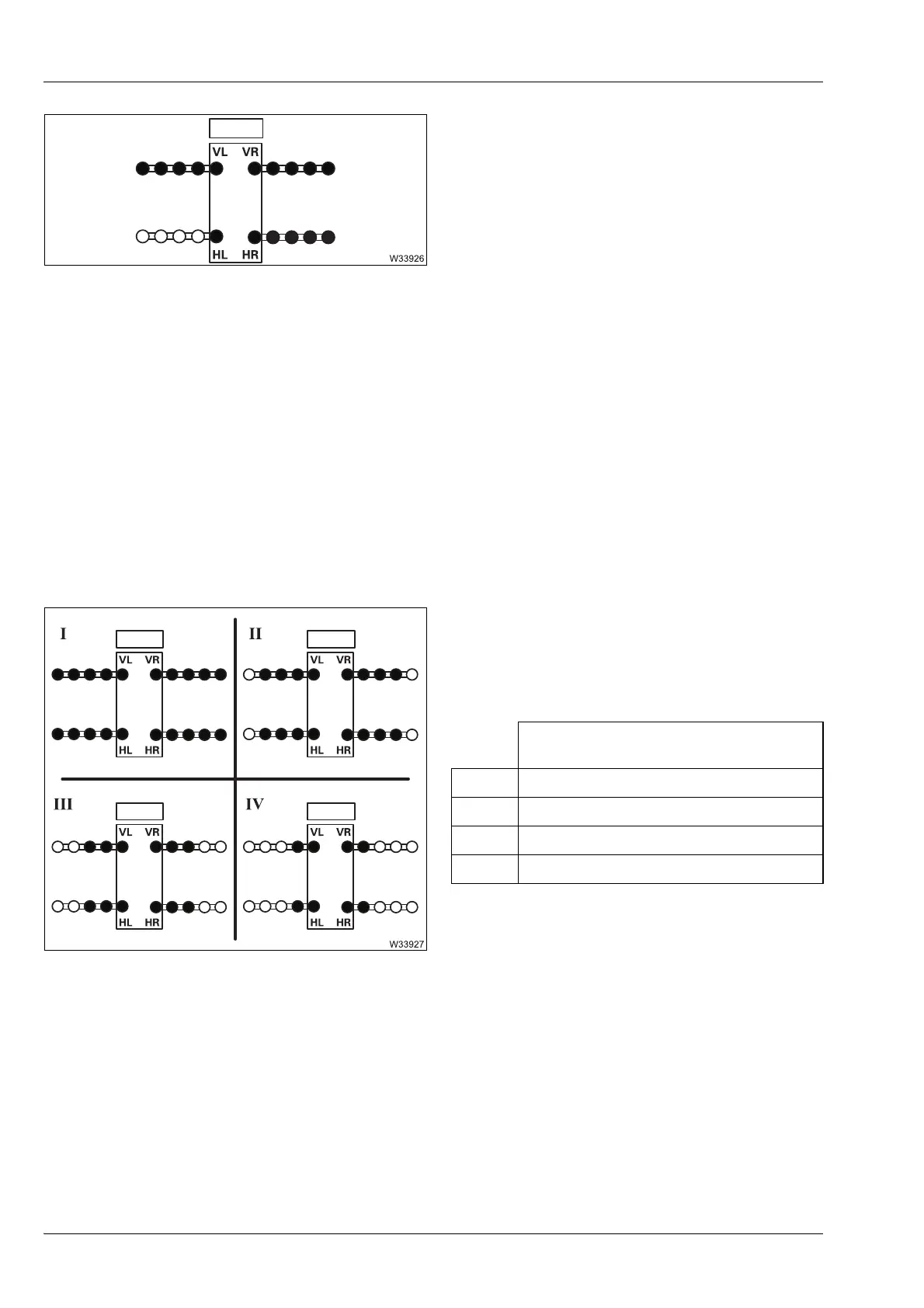

The outrigger width is the same for three out-
rigger beams and one outrigger beam is fully
retracted.
The overall width is entered once and an indi-
vidual width is entered once. For example
12.7.3 Enabled outrigger spans
Particular combinations are enabled for each type of outrigger span. This
section shows all released combinations with the associated individual
widths of the outrigger beams.
Symmetrical
The outrigger width is the same for all outrig-
ger beams. The table shows the released com-
binations.
Front outrigger
span
7.200 m (23.6 ft)
Rear outrigger
span
3.600 + 1.170 m
(11.8 + 3.8 ft)
FL / FR / RL / RR (front left / front
right / rear left / rear right)
I
3.600 m (11.8 ft)
II
3.125 m (10.3 ft)
III
2.650 m (8.7 ft)
IV
1.900 m (6.2 ft)
