Rigging work
12.7 Outriggers – Overview – MAXbase slewing range type
Operating manual 3 302 736 en 12 - 37
GMK4090
xx.xx.xxxx

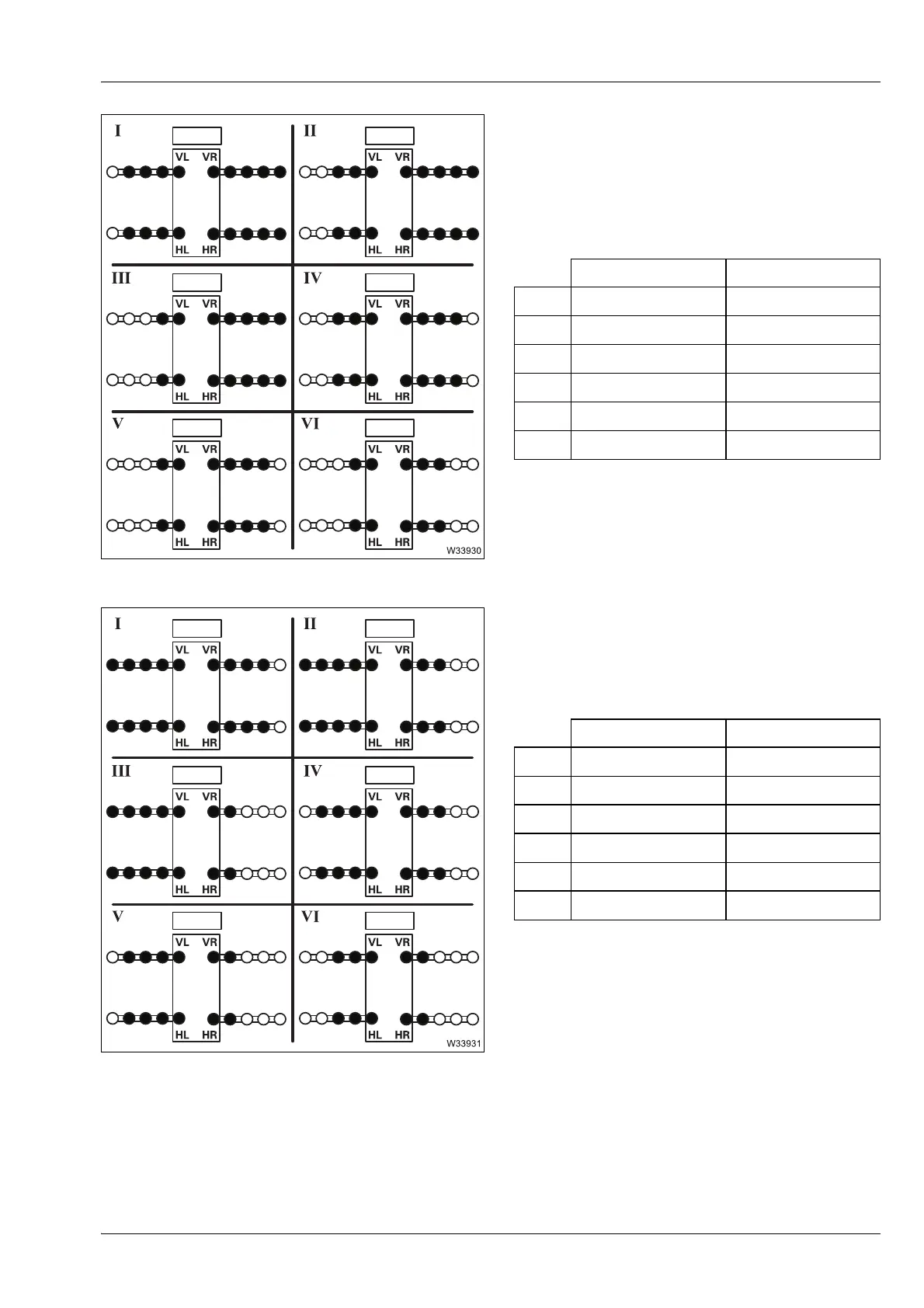

Right / Left
– Right greater than left
The outrigger width is the same at the left and
the same at the right. The table shows the per-
missible combinations.
– Left greater than right
The outrigger width is the same at the left and
the same at the right. The table shows the per-
missible combinations.
There are no separate lifting capacity tables
for this type. The lifting capacities for the
Right
greater than left
type are enabled in a corre-
spondingly mirrored slewing range;
à Lifting
capacities and slewing ranges for outrigger spans
without separate lifting capacity tables
, p. 11 - 26.
s
FR / RR FL / RL
I
3.600 m (11.8 ft) 3.125 m (10.3 ft)
II
3.600 m (11.8 ft) 2.650 m (8.7 ft)
III
3.600 m (11.8 ft) 1.900 m (6.2 ft)
IV
3.125 m (10.3 ft) 2.650 m (8.7 ft)
V
3.125 m (10.3 ft) 1.900 m (6.2 ft)
VI
2.650 m (8.7 ft) 1.900 m (6.2 ft)
FR / RR FL / RL
I
3.125 m (10.3 ft) 3.600 m (11.8 ft)
II
2.650 m (8.7 ft) 3.600 m (11.8 ft)
III
1.900 m (6.2 ft) 3.600 m (11.8 ft)
IV
2.650 m (8.7 ft) 3.125 m (10.3 ft)
V
1.900 m (6.2 ft) 3.125 m (10.3 ft)
VI
1.900 m (6.2 ft) 2.650 m (8.7 ft)
