Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 736 en 12 - 75
GMK4090
xx.xx.xxxx
12.9.4 Slinging points on the counterweight sections
•
Only use lifting gear of sufficient load bearing capacity.
Weights;
à Counterweight parts, p. 1 - 14.
Version A

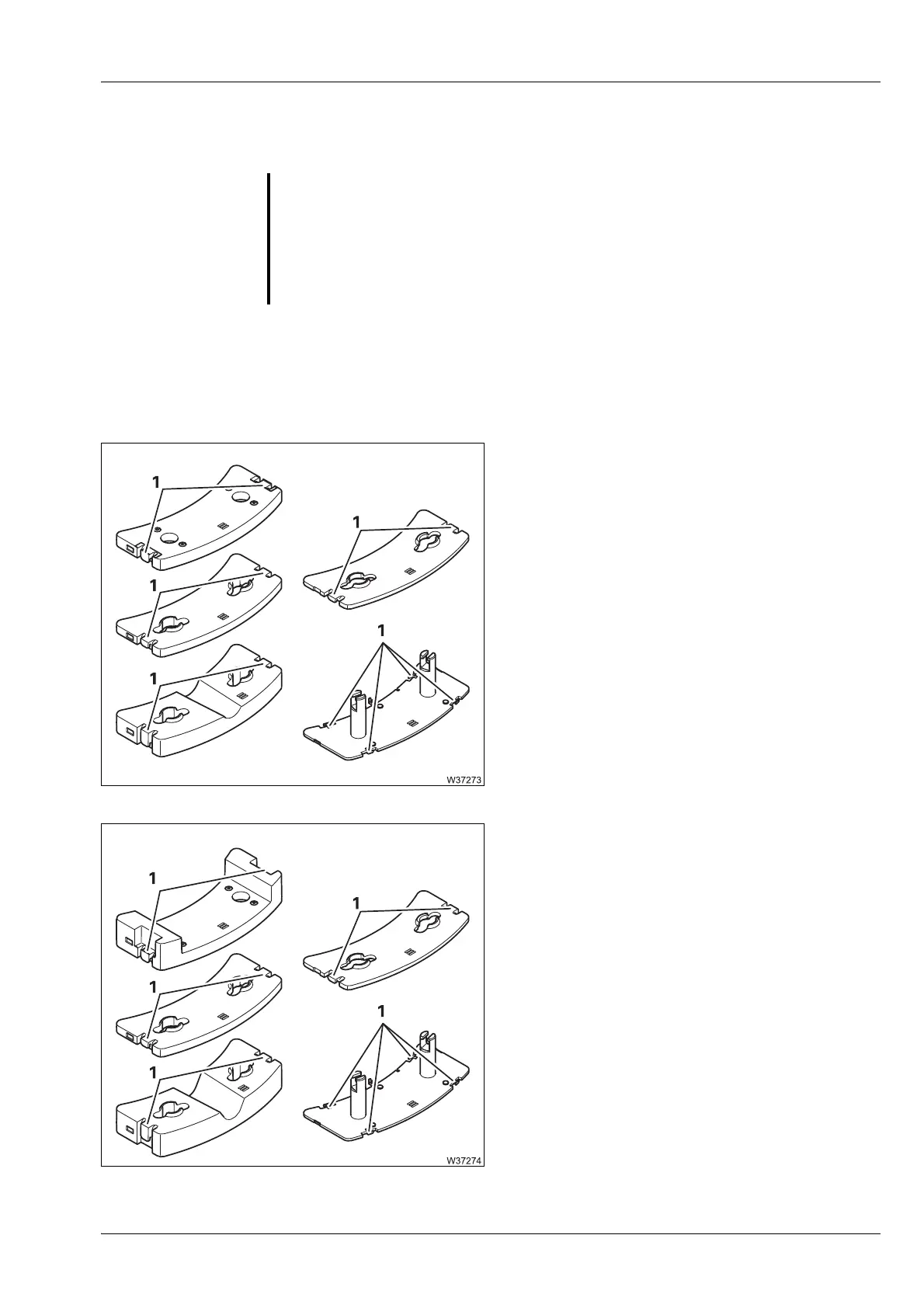

• Attach the counterweight sections at the
slinging points (1).
Raising several plates together
You may only raise the base plate and the
1.15 t plate individually!
Version B
• Attach the counterweight sections at the
slinging points (1).
G
Risk of accident if used improperly
Attach the lifting gear to various counterweight section only at the appro-
priate slinging points. Ensure the lifting gear has sufficient load bearing
capacity.
Only lift the sections one by one, since the slinging points are not designed
for lifting stacked sections.
