Crane operation
11.10 CraneSTAR system
11 - 156 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
11.10 CraneSTAR system
11.10.1 Overview
Your truck crane is equipped with the CraneSTAR system.
The CraneSTAR system is used to transmit crane data via mobile phone,
thus allowing remote diagnostics and localisation of the truck crane.
The CraneSTAR system works automatically, no controls must be operated.
This sections shows only the location of the associated components.
The CraneSTAR system will be activated only at the request of the crane
operator.
Information on viewing the transmitted data in the Internet can be found in
the separate
CraneSTAR Operating instructions and at:
www.cranestar.net – here, you will find all the information about activating
the CraneSTAR system.
11.10.2 Position of the components
The CraneSTAR system includes an antenna and a TCU control unit
(Telematic Control Unit = data transfer control unit).

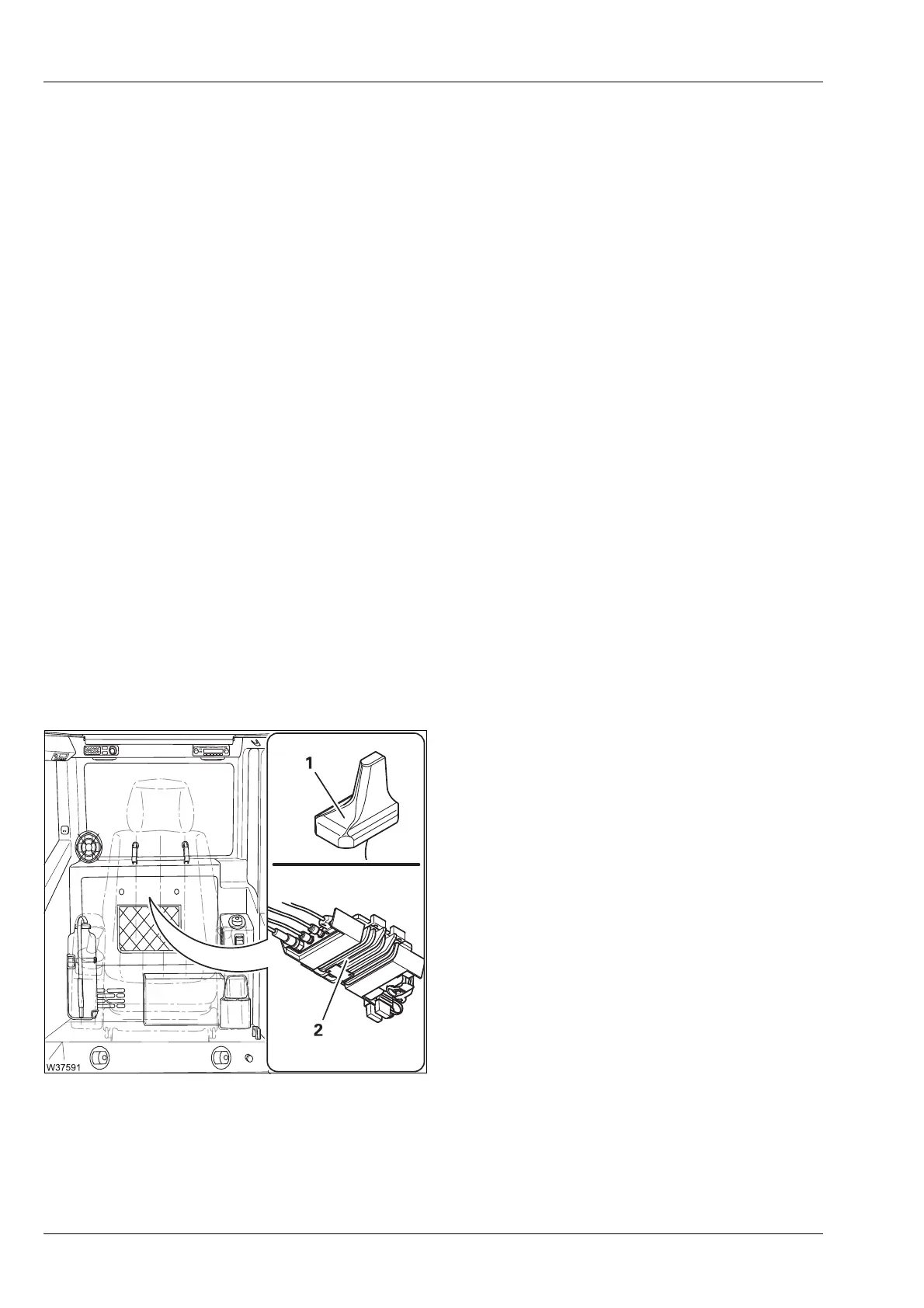

The antenna (1) is a combined GSM/GPS
antenna for transmission via mobile phone
(GSM) and for receiving positioning data
(GPS).
The antenna is connected to the
TCU (2) con-
trol unit.
In the case of a malfunction;
à p. 14 - 24.
