Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 736 en 11 - 47
GMK4090
xx.xx.xxxx
11.4.6 Display during the crane operation
Various different information is shown on the RCL display and CCS display.
This section describes only the displays that change during crane operation.
On the
RCL dislay All displays are shown in the Monitoring menu.

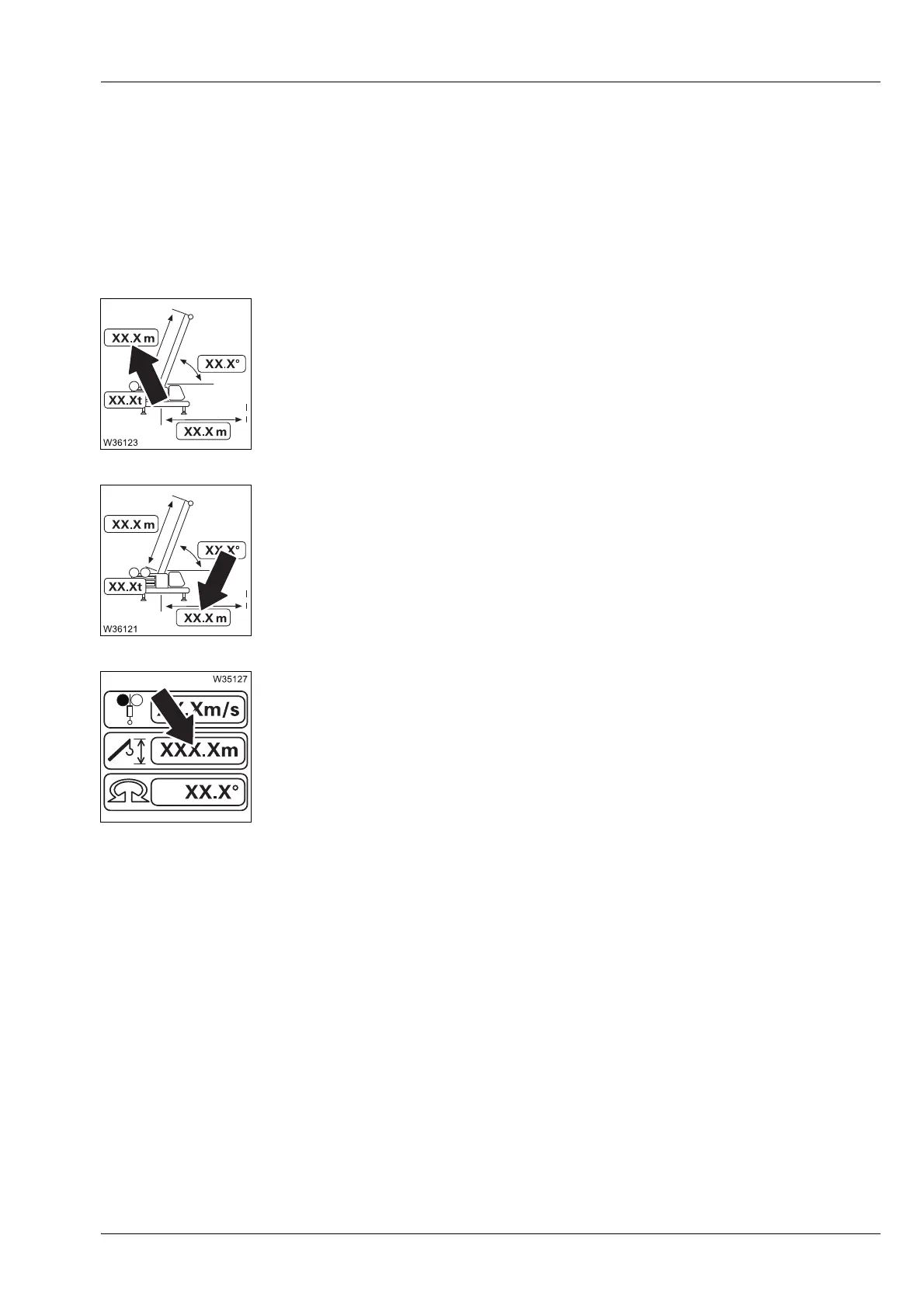

Display of current main boom length
Shows the current main boom length in metres (m) or feet (ft).
Current working radius display
Shows the current working radius = horizontal distance between the turnta-
ble axis and hook block axis in metres (m) or feet (ft).
The displayed value is calculated on the basis of the telescoping and the
main boom or lattice extension angle.
Current overall height display
Overall height = vertical distance between the lower edge of the outrigger
pad and the highest point of the main boom or lattice extension. The dis-
played value applies to fully extended outrigger cylinders on the largest out-
rigger span.
The value is displayed either in metres (m) or in feet (ft), depending on the
setting.
