Operating elements for crane operation
9.1 Overview of the operating elements
9 - 12 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

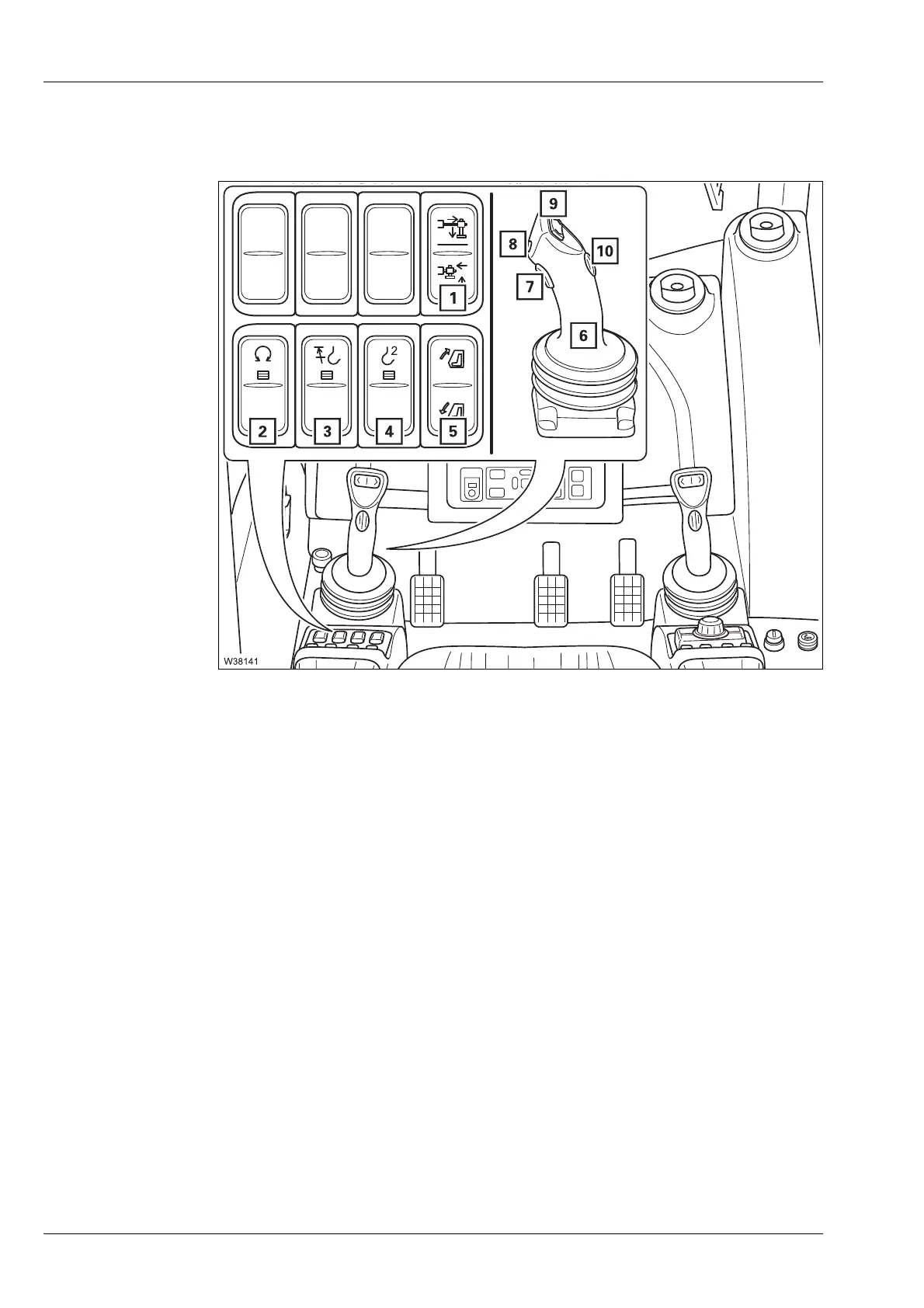

9.1.3 Control panels
Left
1 Moving the outrigger à p. 9 - 100
2 Slewing gear on/off
à p. 9 - 116
3 – Lifting limit switch override
– Override slewing gear shutdown
– Correct the counterweight rigging mode
à p. 9 - 114
à p. 9 - 114
à p. 9 - 114
4 Auxiliary hoist
1)
on/off à p. 9 - 114
5 Inclining the crane cab
à p. 9 - 126
6 Left-hand control lever (configuration varies
depending on the version)
à p. 9 - 14
7 Dead man's switch
à p. 9 - 92
8 Slewing gear freewheel
à p. 9 - 117
9 Depending on which function is switched on, button for:
– Derricking gear high-speed mode
– Telescoping mechanism high-speed mode
– Economy Mode step 3 switch on
1)
à p. 9 - 119
à p. 9 - 121
à p. 9 - 90
10 Auxiliary hoist slewing indicator
à p. 11 - 79
1)
Additional equipment
