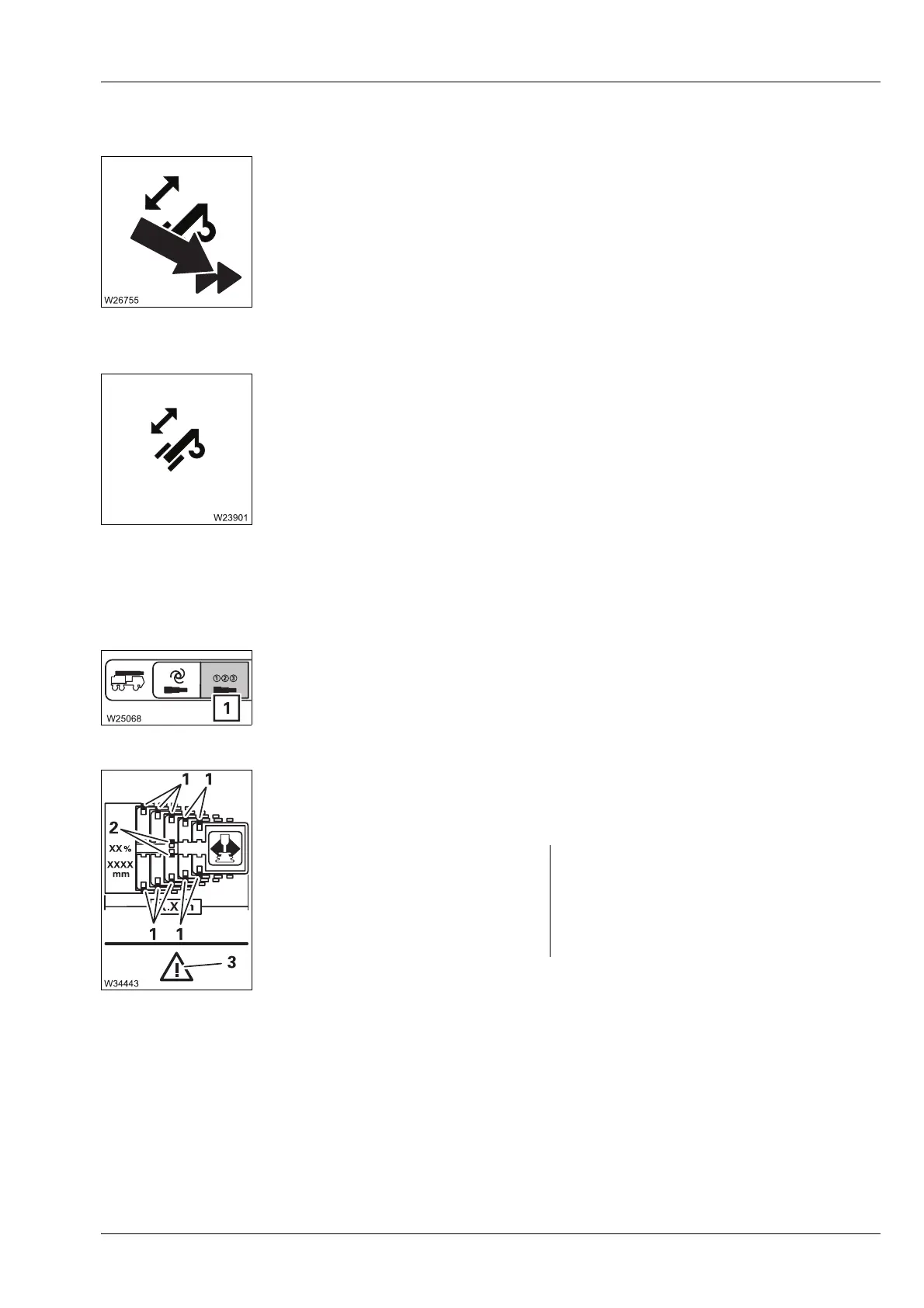

Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 736 en 9 - 121
GMK4090
xx.xx.xxxx
CCS display
Telescoping mechanism high-speed mode inspection
Power units display
Telescoping semi-
automation menu
Open menu
Telescope diagram display
Current relation of the telescopic sections to each other – section of top
view.
s
– Lights up: High-speed mode on
– Go out: High-speed mode off
à p. 11 - 111
– Green: Telescoping mechanism on
–Red: Telescoping mechanism off
Opening: Select symbol (1) and confirm – menu is opened
Locking pin Display 1 and 2
1 On the telescopic section – Green: Locked
2 On the telescoping cylinder – Yellow: Intermediate position
3 Error –Red: Unlocked
à p. 11 - 100
