Operating elements for crane operation
9.2 Short description of the operating elements
9 - 122 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

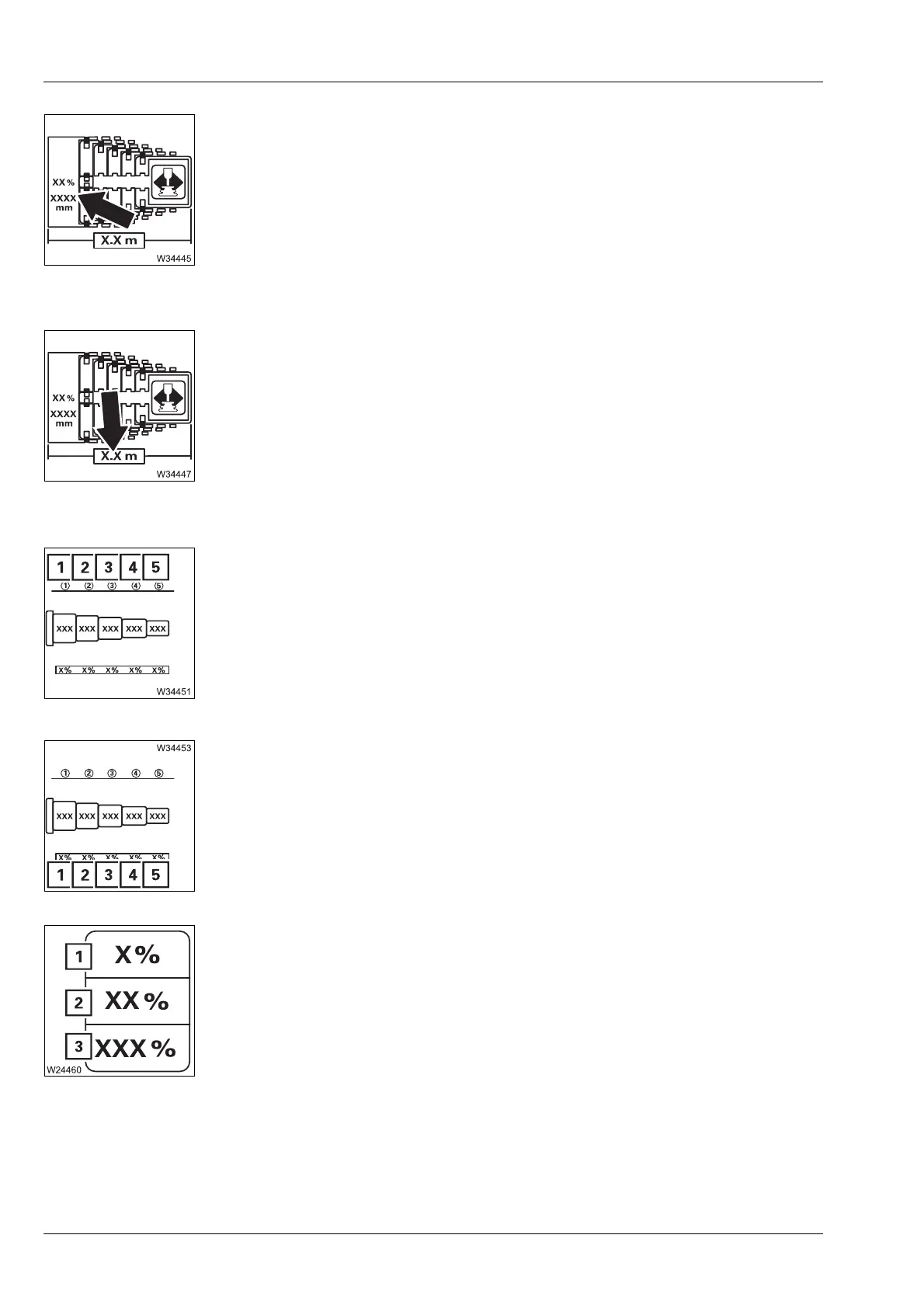

Telescoping cylinder length display
Main boom length display
Telescopic sections display
Current telescope status display
Extended length of the telescopic sections in percentage
Pre-selection for all telescopic sections
–Display: Current extended length of the telescoping cylinder
– Unit of
measurement:
Displayed in % (per cent) and, depending on setting,
mm (millimetres) or ft (feet)
à p. 11 - 108
–Display: Current extended length of the main boom
– Unit of
measurement:
Displayed depending on setting, mm (millimetres) or
ft (feet)
à p. 11 - 108
1 - 5 Display of telescopic sections 1 to 5
1 - 5 Display of telescopic sections 1 to 5
1 Pre-selection telescoping 0%
2 Pre-selection telescoping 50%
3 Pre-selection telescoping 100%
