Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 736 en 9 - 123
GMK4090
xx.xx.xxxx

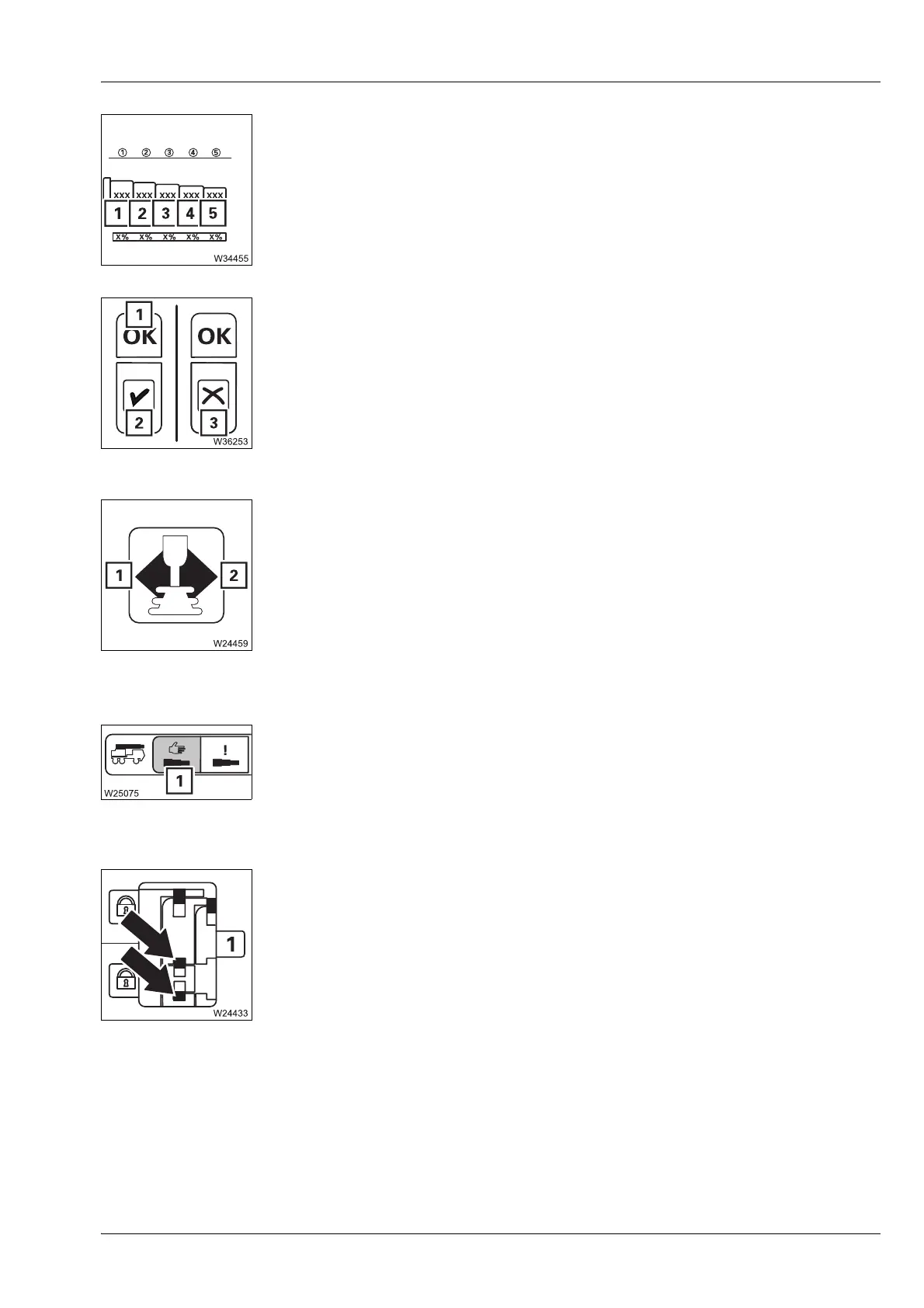

Pre-selection individual telescopic sections
Confirm pre-selection
Teleautomation direction display
Manual
telescoping menu
Telescoping cylinder locked/released
s
1 - 5 Display of telescopic sections 1 to 5
1 Confirm pre-selected telescoping
2 Telescoping permitted display
3 Telescoping not permitted display
à p. 11 - 108
1 Start telescoping full automation with
Retract
2 Start telescoping full automation with Extend
à p. 11 - 108
Opening: Select symbol (1) and confirm – menu is opened
– Display Yellow: Locking pins intermediate position
Green: Telescoping cylinder locked
Red: Telescoping cylinder unlocked
