Crane operation
11.5 Crane operation with main boom
11 - 100 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
Current telescoping

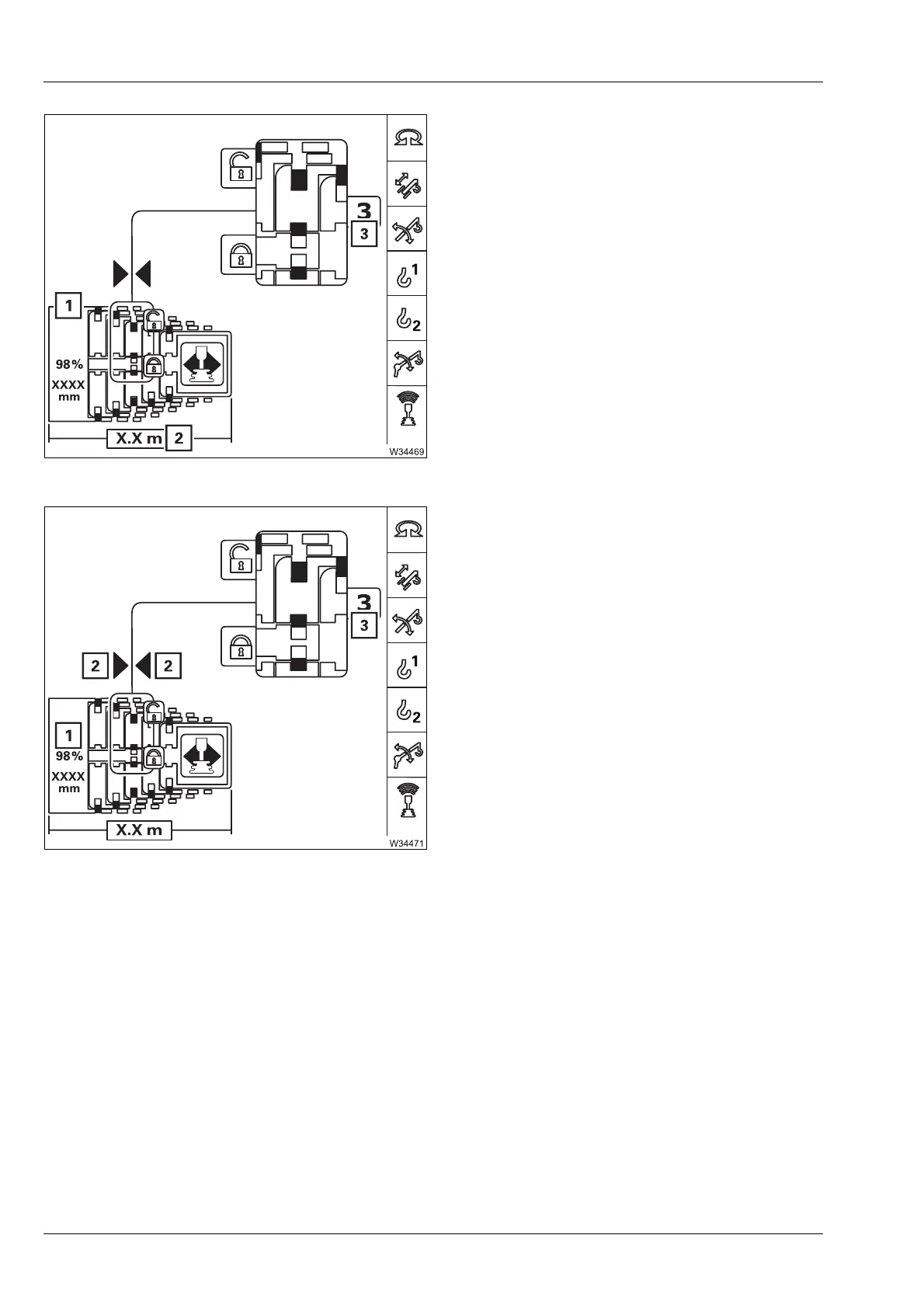

The display (1) shows how far the telescoping
cylinder is extended, for example, 98%.
The display (2) shows the current main boom
length.
The display (3) shows the corresponding tele-
scopic section, for example, telescopic
section
3.
Position of the telescoping cylinder
The display (1) shows how far the telescoping
cylinder is extended, for example, 98%.
If the telescoping cylinder is near a locking
point:
–The display (3) shows the corresponding tel-
escopic section, for example, telescopic sec-
tion
3.
– The display (2) shows one or two arrows,
depending on the distance to the locking
point.
