Operating elements for crane operation

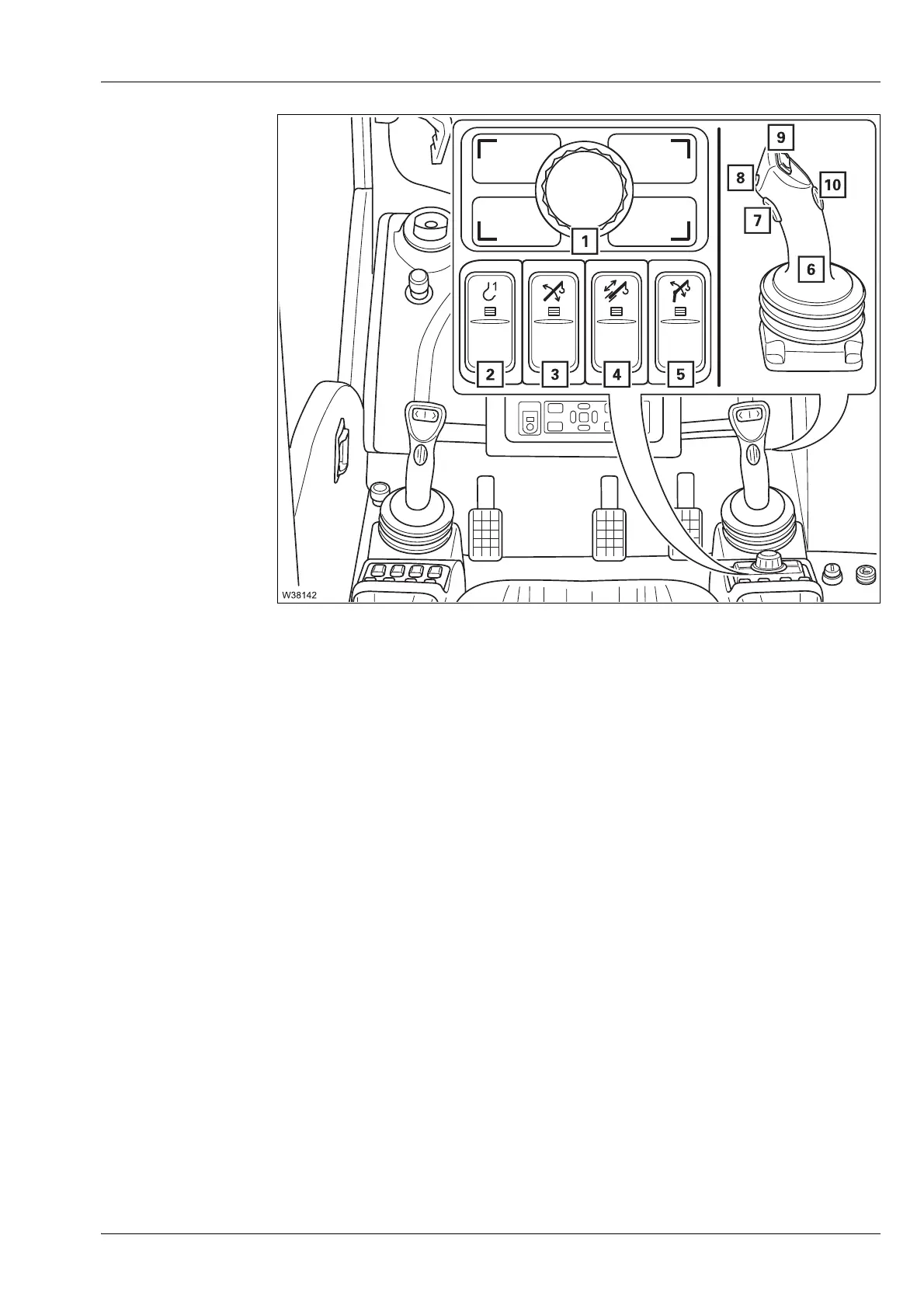

9.1 Overview of the operating elements
Operating manual 3 302 736 en 9 - 13
GMK4090
xx.xx.xxxx
Right
1 Jog dial (rotary push button)
à p. 9 - 93
2 Main hoist on/off
à p. 9 - 112
3 Derricking gear on/off
à p. 9 - 118
4 Telescoping mechanism on/off
à p. 9 - 120
5 Lattice extension derricking gear
1), 2)
6 Right-hand control lever (configuration depends on
version)
à p. 9 - 14
7 Dead man's switch
à p. 9 - 92
8 Horn
à p. 9 - 147
9 Depending on which function is switched on, button for:
– Hoist high-speed mode on/off
– Steering in normal steering mode
à p. 9 - 112
10 Main hoist slewing indicator
à p. 11 - 75
1)
Additional equipment
2)
à Lattice extension operating manual
