Crane operation
11.3 MAXbase slewing range type
11 - 24 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

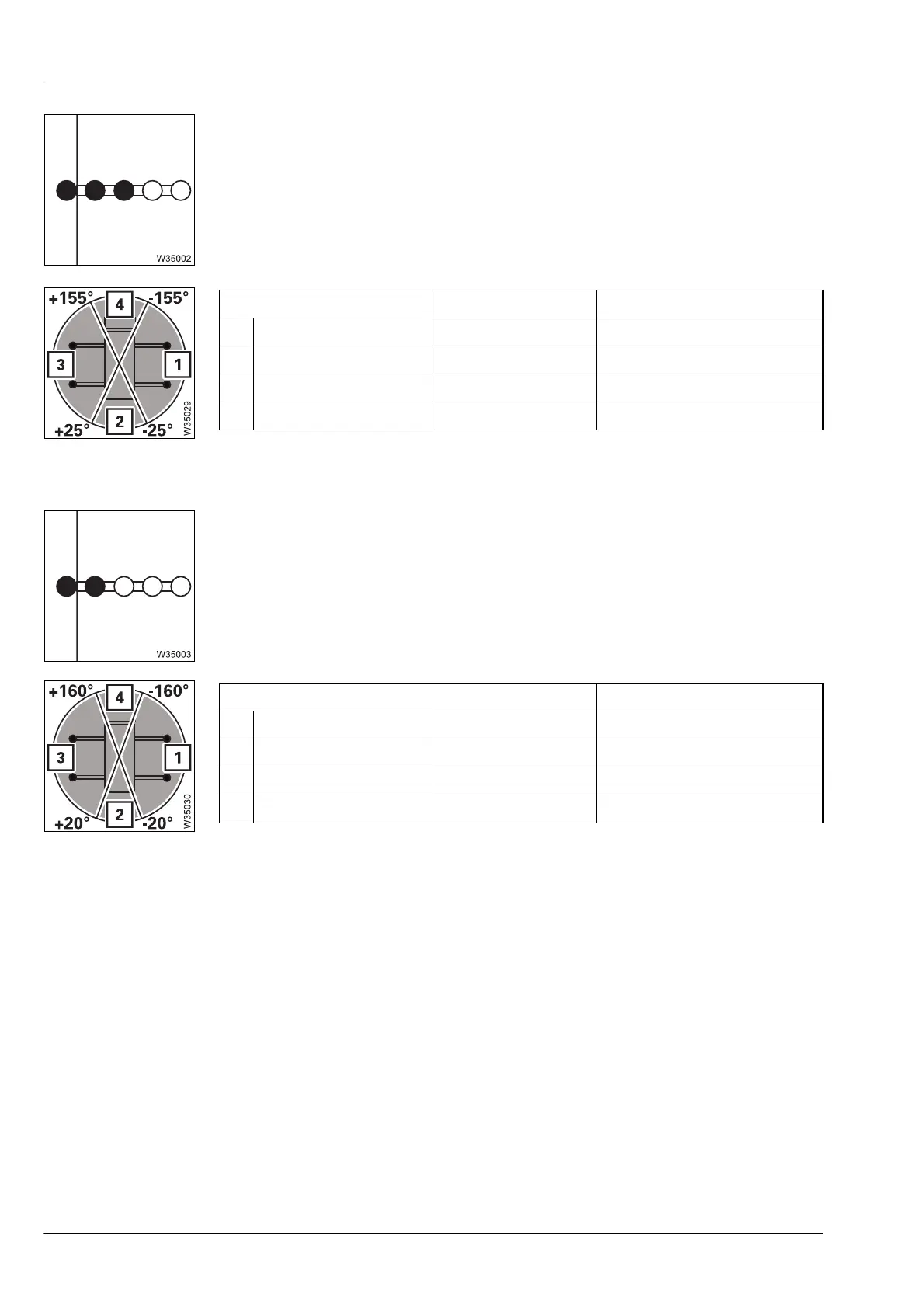

Smallest individual width 2.650 m (8.7 ft)
This case applies when one or more outrigger beams is extended to a span
of 2.650 m (8.7 ft) and all other outrigger beams are extended to larger
spans.
Smallest individual width 1.900 m (6.2 ft)
This case applies when one or more outrigger beams is extended to a span
of 1.900 m (6.2 ft) and all other outrigger beams are extended to larger
spans.
Positional reference Angular range Enabled slewing range
1 To the right ±65° -155° to -25°
2 Backwards ±25° -25° to +25°
3 To the left ±65° +25° to +155°
4 Forwards ±25° +155° to -155°
Positional reference Angular range Enabled slewing range
1 To the right ±70° -160° to -20°
2 Backwards ±20° -20° to +20°
3 To the left ±70° +20° to +160°
4 Forwards ±20° +160° to -160°
