Crane operation
11.3 MAXbase slewing range type
Operating manual 3 302 736 en 11 - 23
GMK4090
xx.xx.xxxx

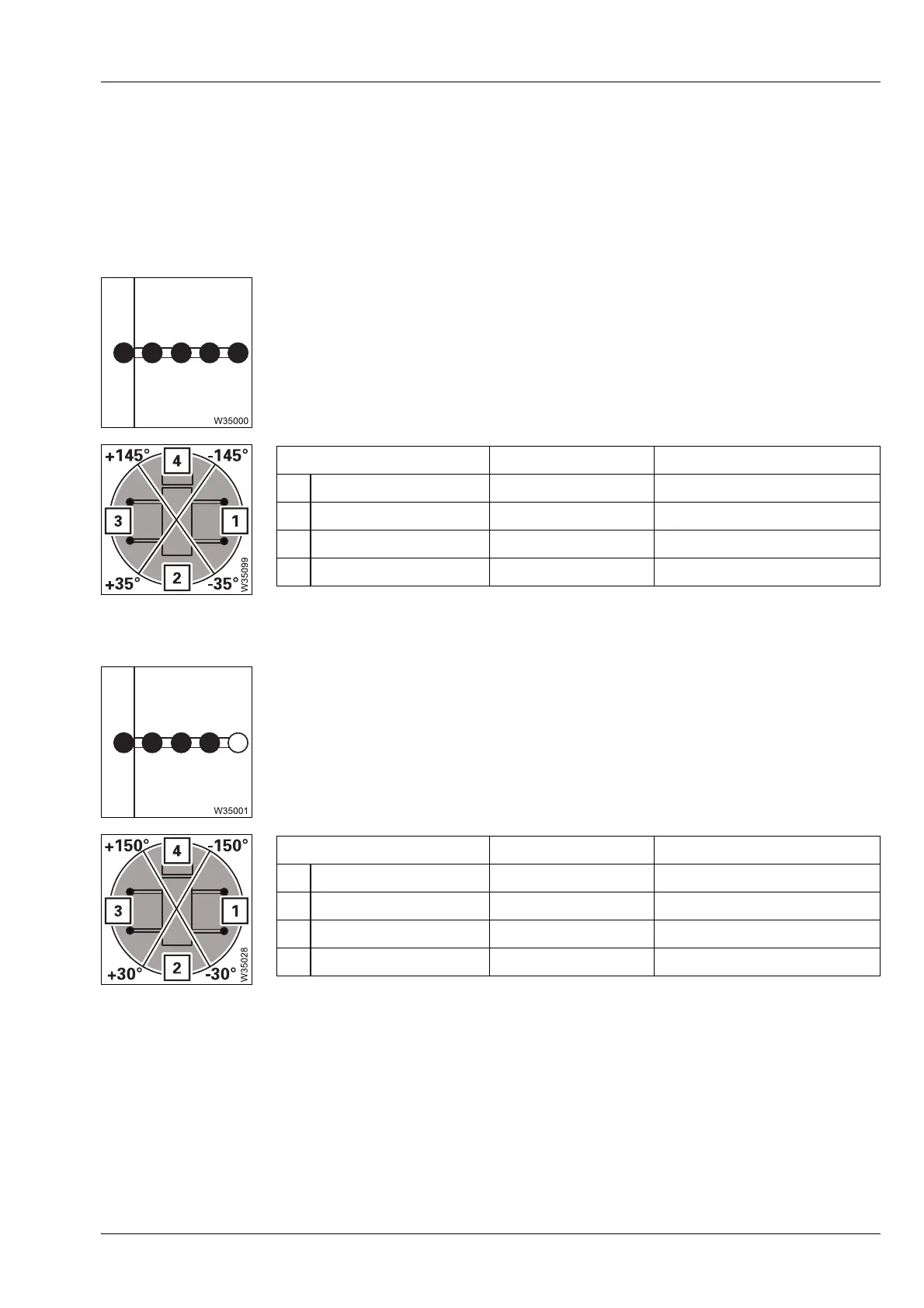

11.3.2 Enabled slewing ranges
The enabled angular ranges around the starting point are specified in the
Lifting capacity table. This section provides an overview of where the enabled
slewing ranges begin and end for each slewing angle.
Smallest individual width 3.600 m (11.8 ft)
This case applies only to a symmetrical outrigger span with a span of
7.200 m (23.6 ft).
Smallest individual width 3.125 m (10.3 ft)
This case applies when one or more outrigger beams is extended to a span
of 3.125 m (10.3 ft) and all other outrigger beams are extended to larger
spans.
s
Positional reference Angular range Enabled slewing range
1 To the right ±55° -145° to -35°
2 Backwards ±35° -35° to +35°
3 To the left ±55° +35° to +145°
4 Forwards ±35° +145° to -145°
Positional reference Angular range Enabled slewing range
1 To the right ±60° -150° to -30°
2 Backwards ±30° -30° to +30°
3 To the left ±60° +30° to +150°
4 Forwards ±30° +150° to -150°
