Operating elements for driving
3.2 Short description of the operating elements
3 - 58 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

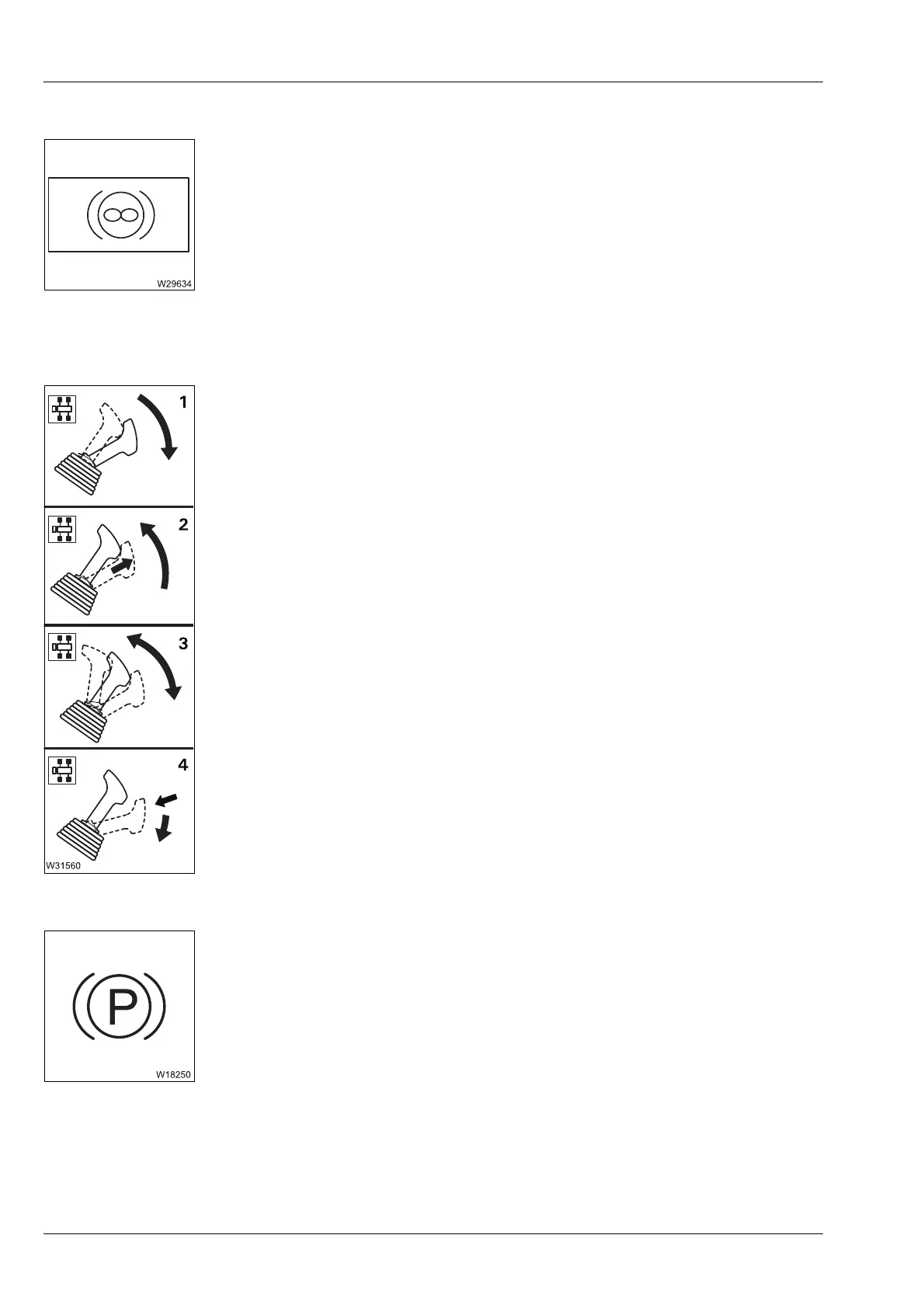

Instrument panel
Additional brake indicator lamp
Parking brake
Parking brake indicator lamp
–Lit: Additional brake on
– Go out: Additional brake off
– Flashing: – Ignition on – Multipurpose switch not in position 0
– Engine is running – retarder power reduced
1 To engage the
parking brake:
Pull the lever down until it locks into place
2 To release the
parking brake:
Lift the lever and push it up until it latches into
place
3 Operating as
auxiliary brake:
Shift the lever to intermediate position
The braking force is increased continuously by
moving the lever from top to bottom.
4 Test position for
towing a trailer:
– Push the lever backwards and downwards until it
locks into place
– Press in the lever and pull it further downwards
The parking brake for the trailer is released;
à p. 5 - 86.
–Lit: Parking brake applied
– Go out: Parking brake released
