Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 736 en 3 - 77
GMK4090
xx.xx.xxxx

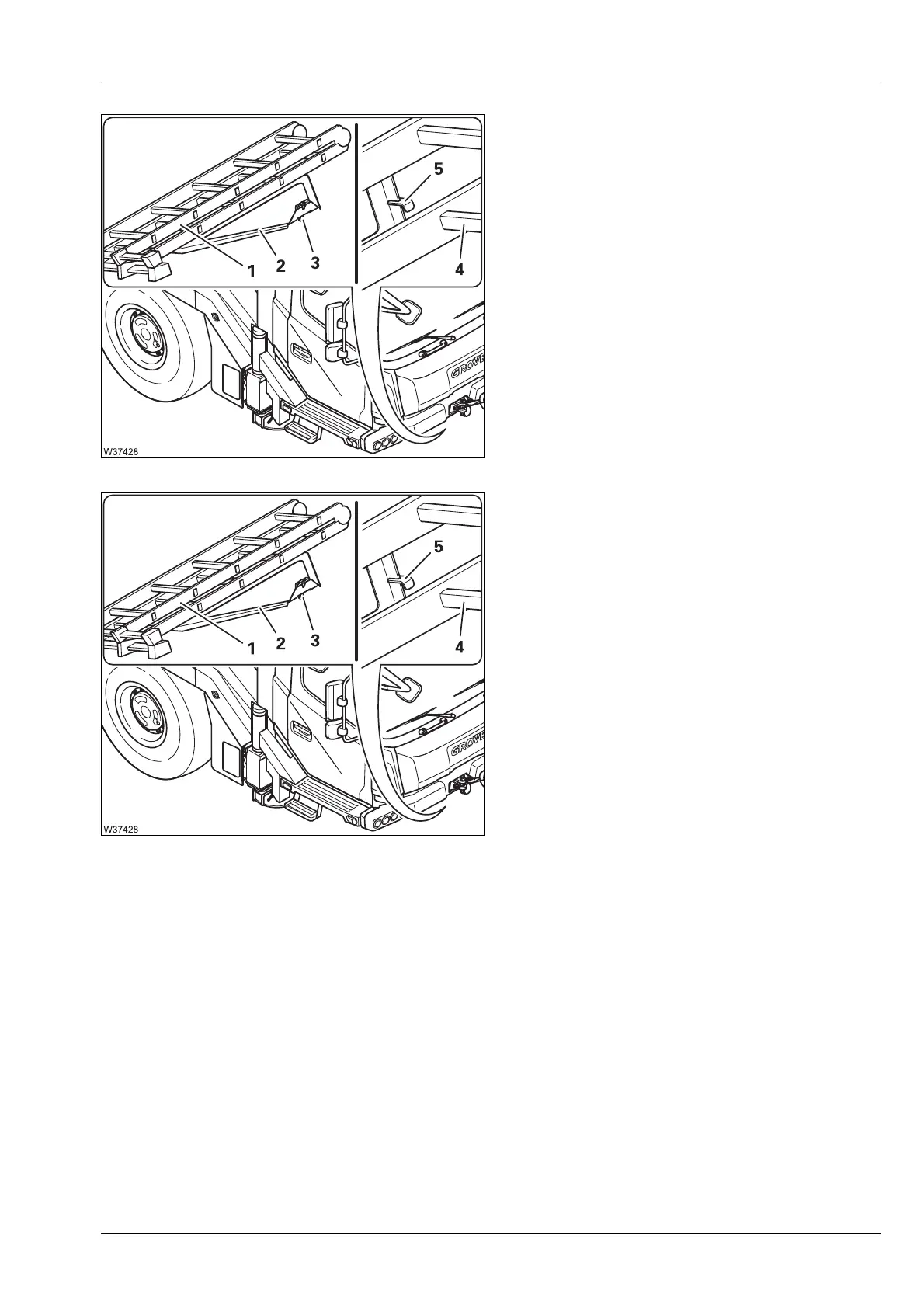

Folding ladder – shelf under the driver's cab
For the shelf on the rear of carrier;
à p. 3 - 76.
– For the use
Ladder (1) – to erect and fold out.
• Hold the clamp (2) and open the lock (3).
• Fold down the clamp (2).
• Take out the ladder.
• Fold the clamp (2) upwards until it
engages.
– For driving/crane operation
• Fold together the ladder (1).
• Place the ladder in the centre of the
clamp (2).
• Push the ladder back so that the holder (5)
engages on a rung (4).
• Fold the clamp (2) upwards until it
engages.
Always secure the holder (2) before driving,
even if no ladder is being transported.
