Driving
5.1 Before driving
Operating manual 3 302 736 en 5 - 21
GMK4090
xx.xx.xxxx

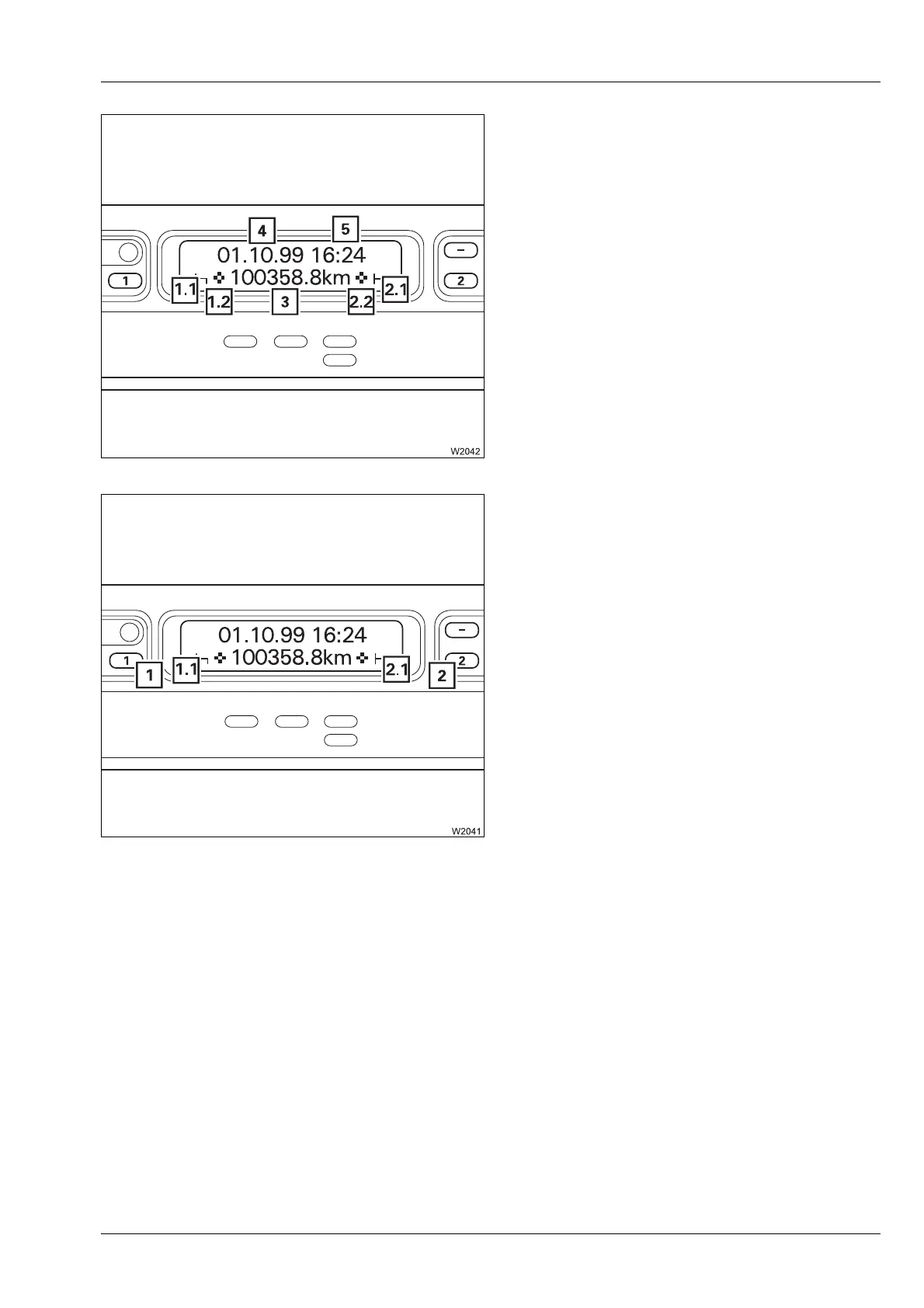

Display
If no malfunction has occurred, the
Tachograph
display now shows the basic display:
– Date (4) and time (5)
– Driver 1 time group (1.1)
– Driver 1 diagram sheet inserted (1.2)
– Total kilometres of the truck crane (3)
– Driver 2 time group (2.1)
– Driver 2 diagram sheet inserted (2.2)
Time groups, setting
Set the time group for driver 1 using the but-
ton (1).
The set time group is shown with the
symbol (1.1).
Set the time group for driver 2 using the but-
ton (2).
The set time group is shown with the
symbol (2.1).
s
