Driving modes
6.4 Installing/removing the outrigger beams
Operating manual 3 302 736 en 6 - 17
GMK4090
xx.xx.xxxx

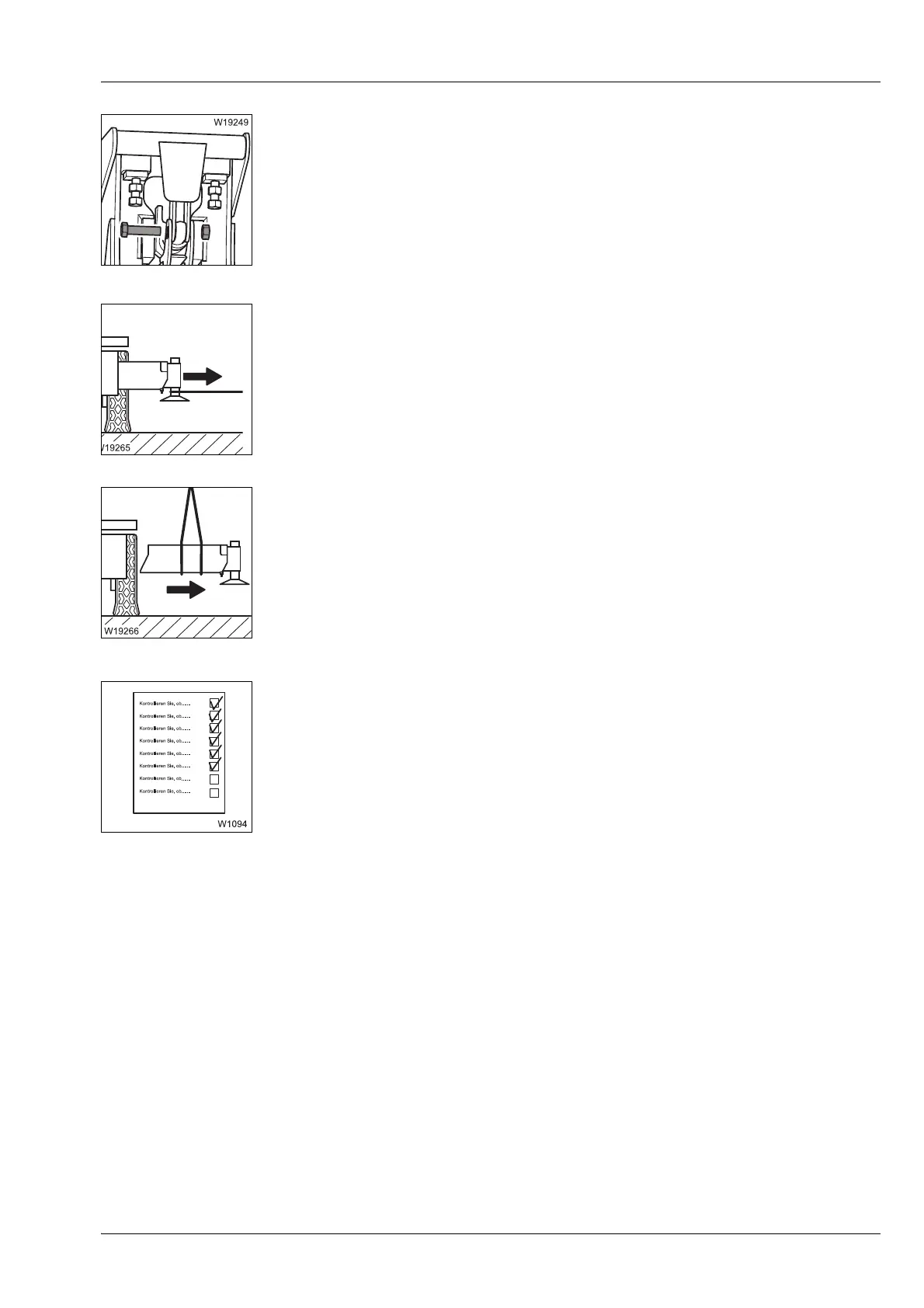

6. Disconnect the connection to the support box; Ã p. 6 - 28.
7. Sling the outrigger beam and pull it out of the outrigger box until it
reaches the centre of gravity;
à p. 6 - 28.
8. – Sling the outrigger beams in the centre of gravity and pull them out
of the outrigger box.
– Lift the outrigger beams onto the separate vehicle.
– Attach the connecting elements on the outrigger box.
à Extending the outrigger beam, p. 6 - 28
à Transporting the outrigger beams, p. 6 - 32
9. Remove all necessary outrigger beams in the same way in accordance
with this checklist.
