Driving modes
6.4 Installing/removing the outrigger beams
Operating manual 3 302 736 en 6 - 23
GMK4090
xx.xx.xxxx

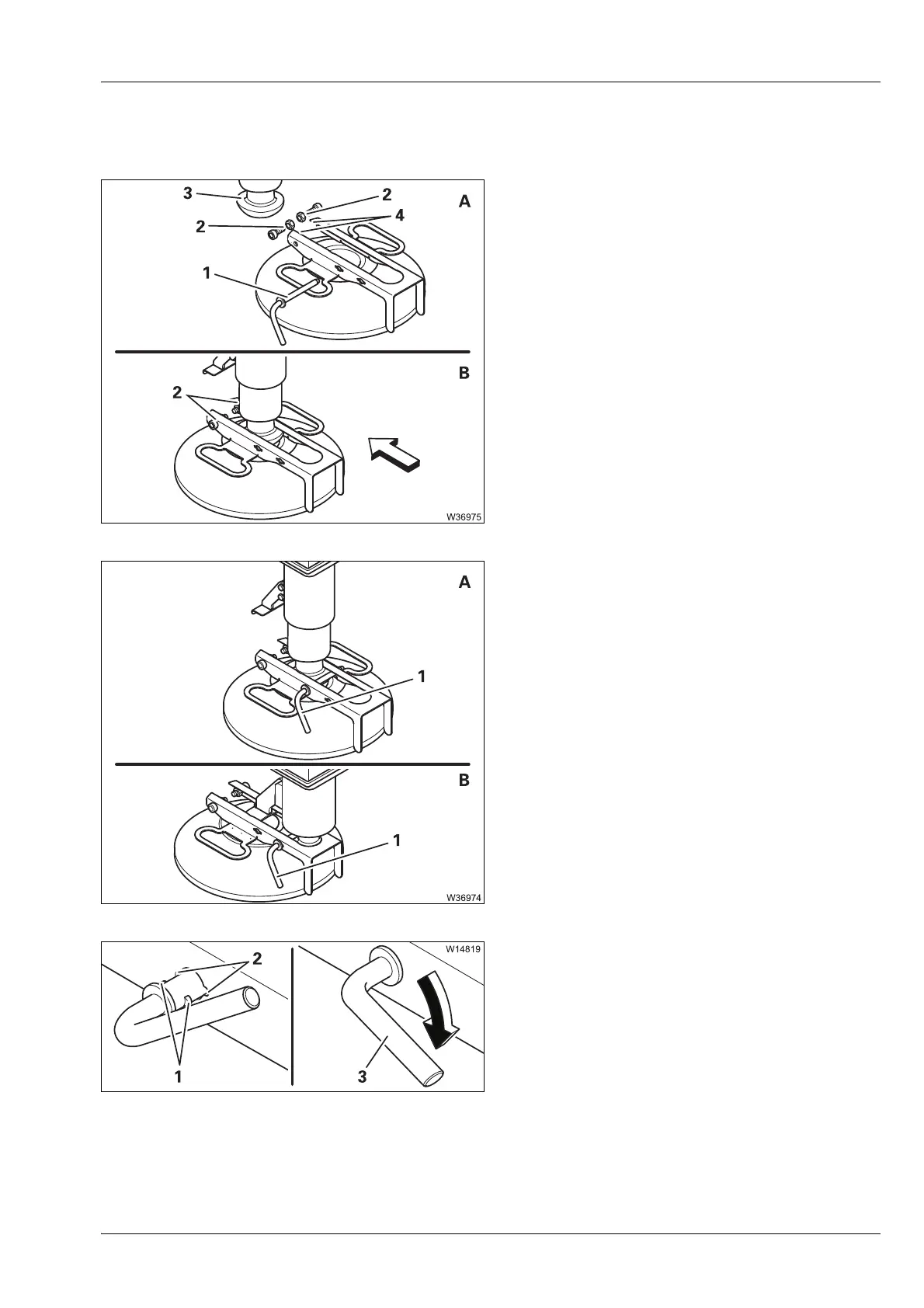

Attaching the
outrigger pads
After mounting the outrigger beam, you must attach the outrigger pad.
• (A) – Remove the pin (1).
• Remove the bolts/nuts (2).
• Extend the outrigger cylinder far enough so
that the bearing surface (3) is below the
guide (4).
• (B) – Push the outrigger pad onto the outrig-
ger cylinder.
• Fasten the bolts/nuts (2) – Tightening torque
35 Nm (25.7 lbft).
• Move the outrigger pad into required
position.
– On site, move it to the working position (A).
– If you need to drive to the site, in driving
position (B).
• Insert the pin (1) and secure it.
Securing pin
• Plug the pin with the peg (1) through the cut-
out (2).
• Turn the grip (3) downward.
• Position the other outrigger pads in the
same way.
