Manitowoc GROVE GMK4090 User Manual

Operating elements for crane operation
9.1 Overview of the operating elements
9 - 38 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

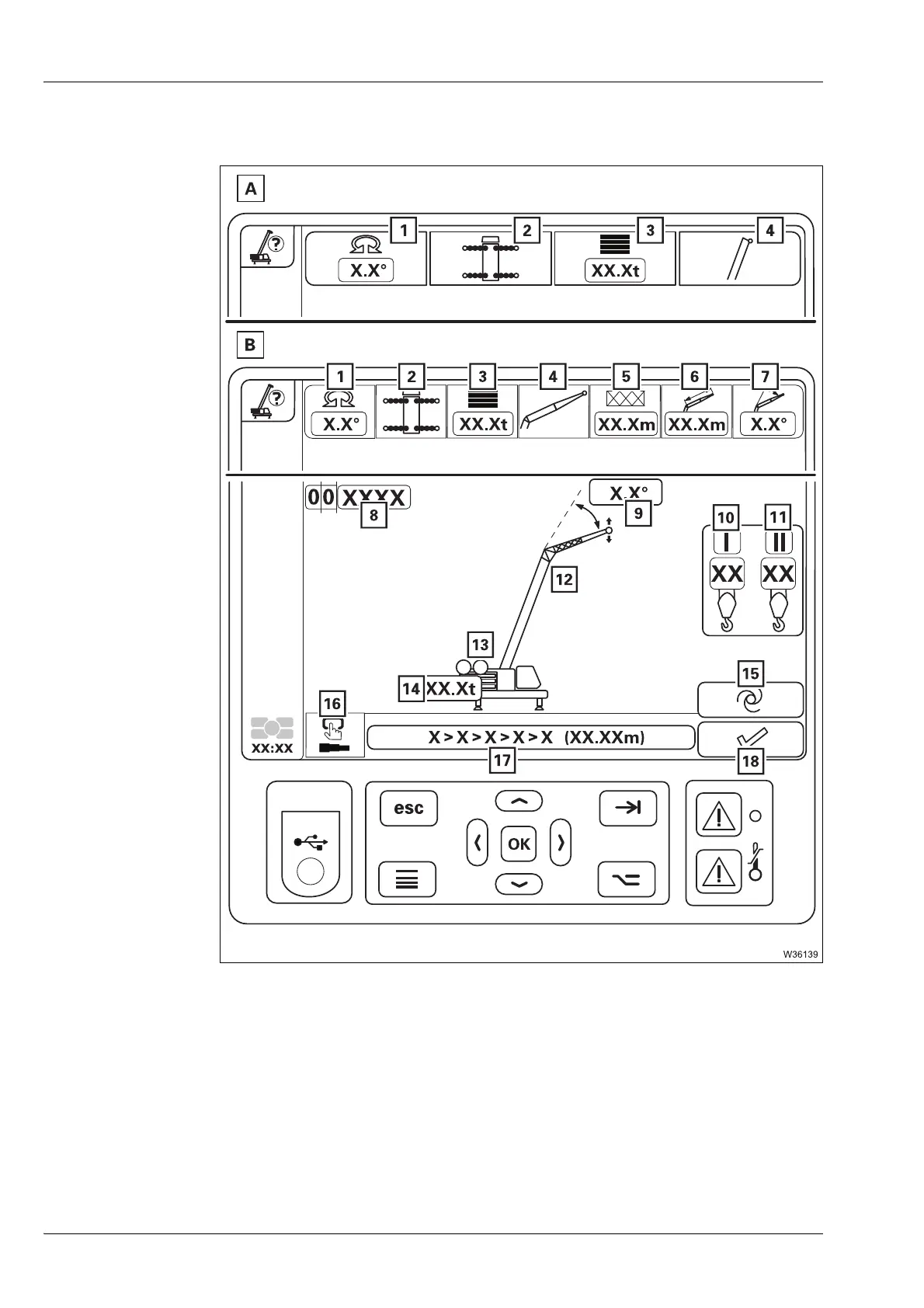

Menu enter
rigging mode/
telescope
–For the Standard slewing range type
H
Depending on the version, the top view (2) is shown rotated by 180°. The
representation occurs in the same manner as in the RCL
Monitoring menu;
à p. 9 - 78.
A For the Main boom boom system
B For the
Lattice extension boom system
