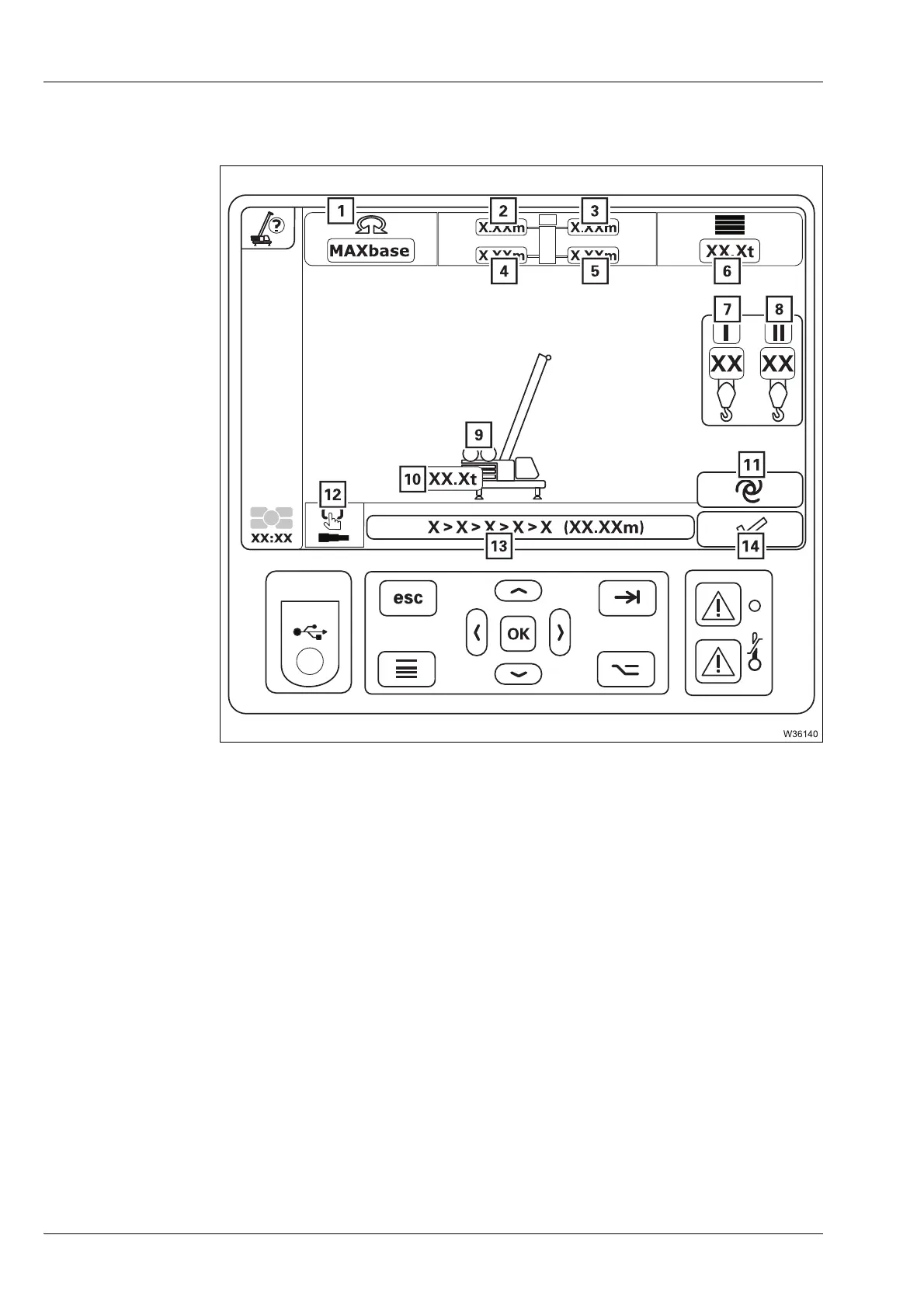

Operating elements for crane operation
9.1 Overview of the operating elements
9 - 40 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
–For the MAXbase slewing range type
1)
H
Depending on the version, the top view (2) to (5) is shown rotated by 180°.
The representation occurs in the same manner as in the RCL
Monitoring
menu;
à p. 9 - 78.
1)
Additional equipment
