Manitowoc GROVE GMK4090 User Manual

Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 736 en 9 - 53
GMK4090
xx.xx.xxxx

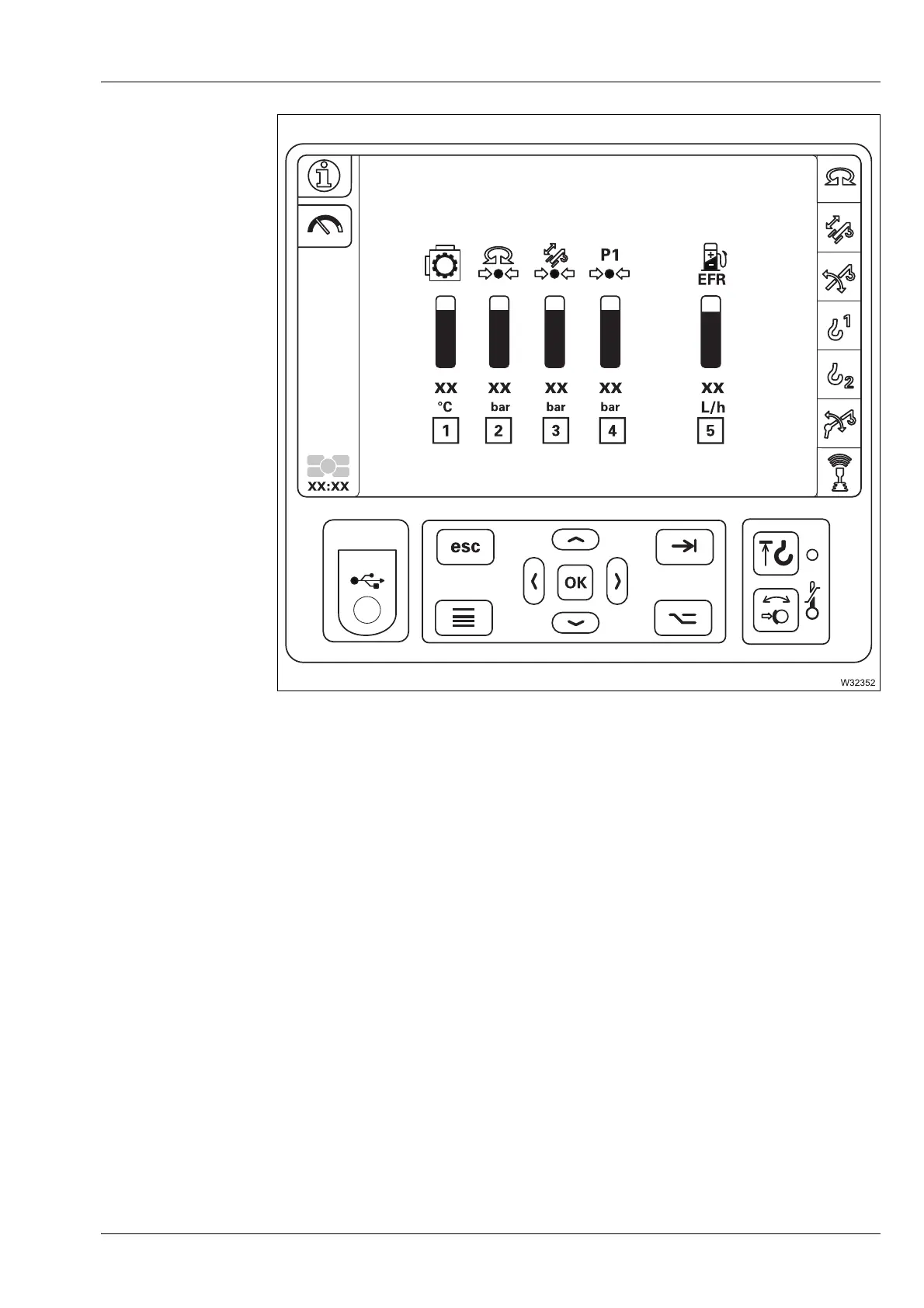

Hydraulic pressure
and fuel
consumption
menu
1 Angle gear temperature display à p. 9 - 126
2 Slewing gear hydraulic circuit pressure display
à p. 9 - 126
3 Telescoping cylinder pressure display
à p. 9 - 126
4 Hydraulic circuit pressure display
à p. 9 - 126
5 Display of consumption in litres per hour
1)
1)
Additional equipment
