Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 736 en 9 - 67
GMK4090
xx.xx.xxxx

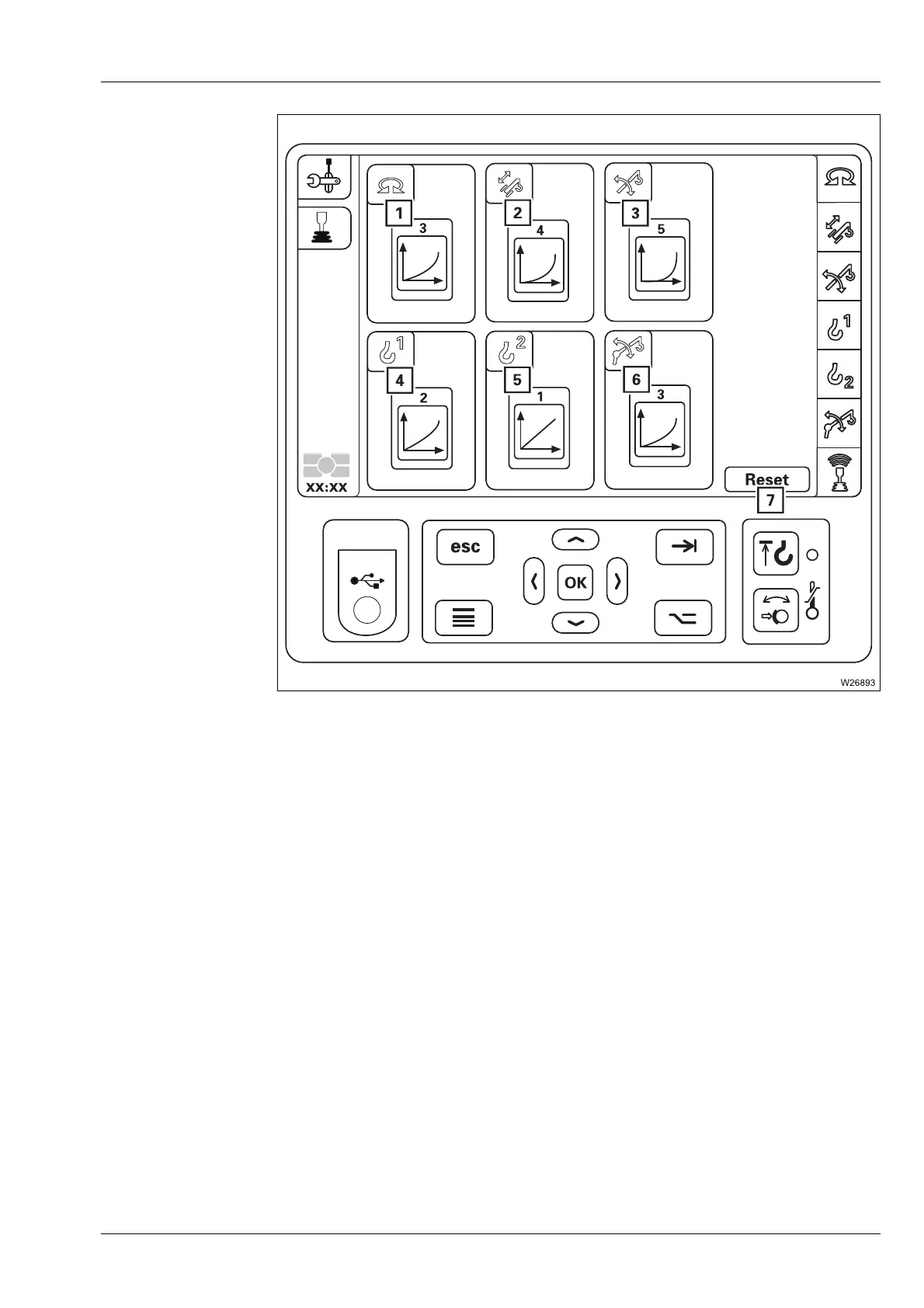

Set control lever
characteristic
curve menu
s
1 Characteristic curve slewing gear
à p. 11 - 127
2 Characteristic curve telescoping mechanism
3 Characteristic curve derricking gear
4 Characteristic curve main hoist
5 Auxiliary hoist
1)
characteristic curve
6 Lattice extension
1)
characteristic curve
7 Setting Reset characteristic curve
1)
Additional equipment
