Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 736 en 9 - 91
GMK4090
xx.xx.xxxx

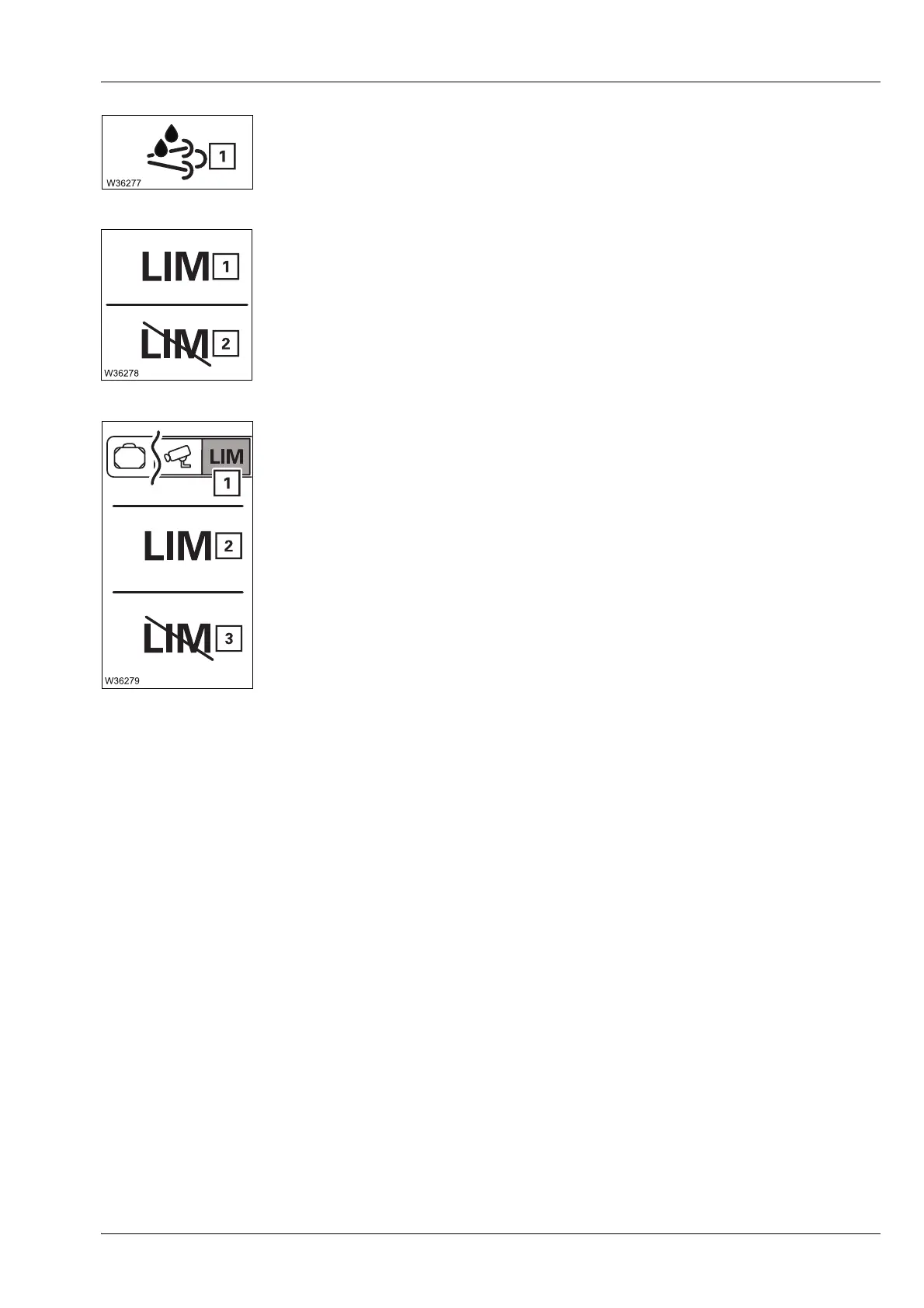

AdBlue system fault
Torque reduction indicator lamp
Override torque reduction
1 – Lights up:
à Faults on the Adblue system, p. 8 - 21
1 – Lights up: Reduction in torque the next time the engine is
started
1 – Go out: Torque reduction off or overridden
2 – Lights up: Torque reduction on
Symbol (2) is displayed
1 – Select and confirm: Torque reduction overridden for
30 minutes – symbol (3) displayed
after 30 minutes
1 – Select and confirm: Torque reduction overridden for
30 minutes – symbol (3) displayed
after 30 minutes
1 – Select and confirm: Torque reduction overridden for
30 minutes – symbol (3) displayed –
after this, symbol (1) without function
until the next engine restart
à Overriding torque reduction, p. 11 - 130
