Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 736 en 9 - 115
GMK4090
xx.xx.xxxx

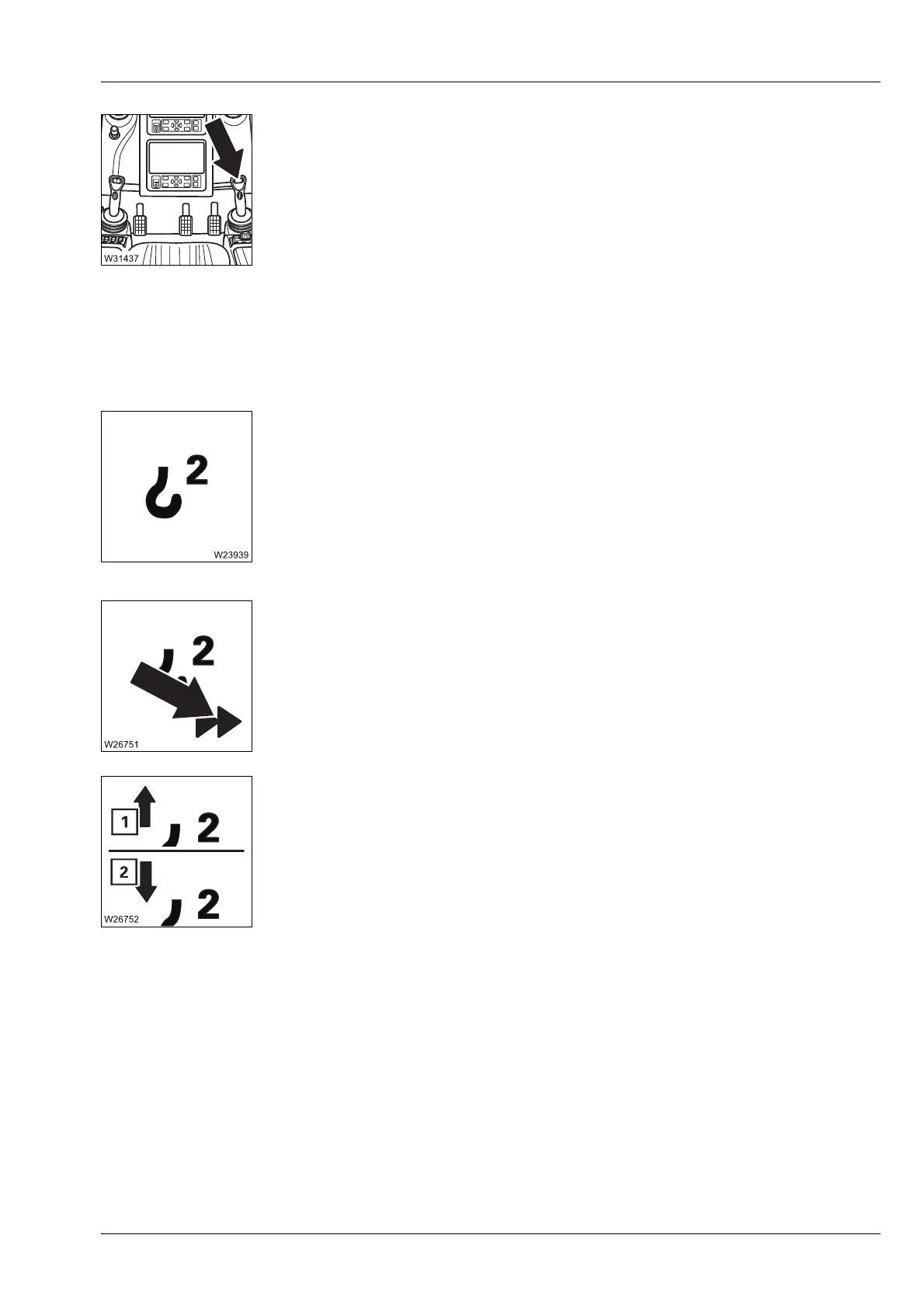

Hoist high-speed mode on/off
The parking brake is engaged.
CCS display
Power units display
High speed monitoring for the hoists
Lift/lower the hoist display
s
–Left: High-speed mode on, off when released
– Once to the
right:
High-speed mode on – continuous operation
– Once to right
or once to left:
High-speed mode off
à p. 11 - 111
– Green: Auxiliary hoist on
–Red: Auxiliary hoist off
– Lights up: High-speed mode on
– Go out: High-speed mode off
à p. 11 - 111
– Symbol (1): Lifting
– Symbol (2): Lowering
à p. 11 - 111
