Additional pages GMK4080-2/4090
3 302 829 en
1
19.11.2018
•

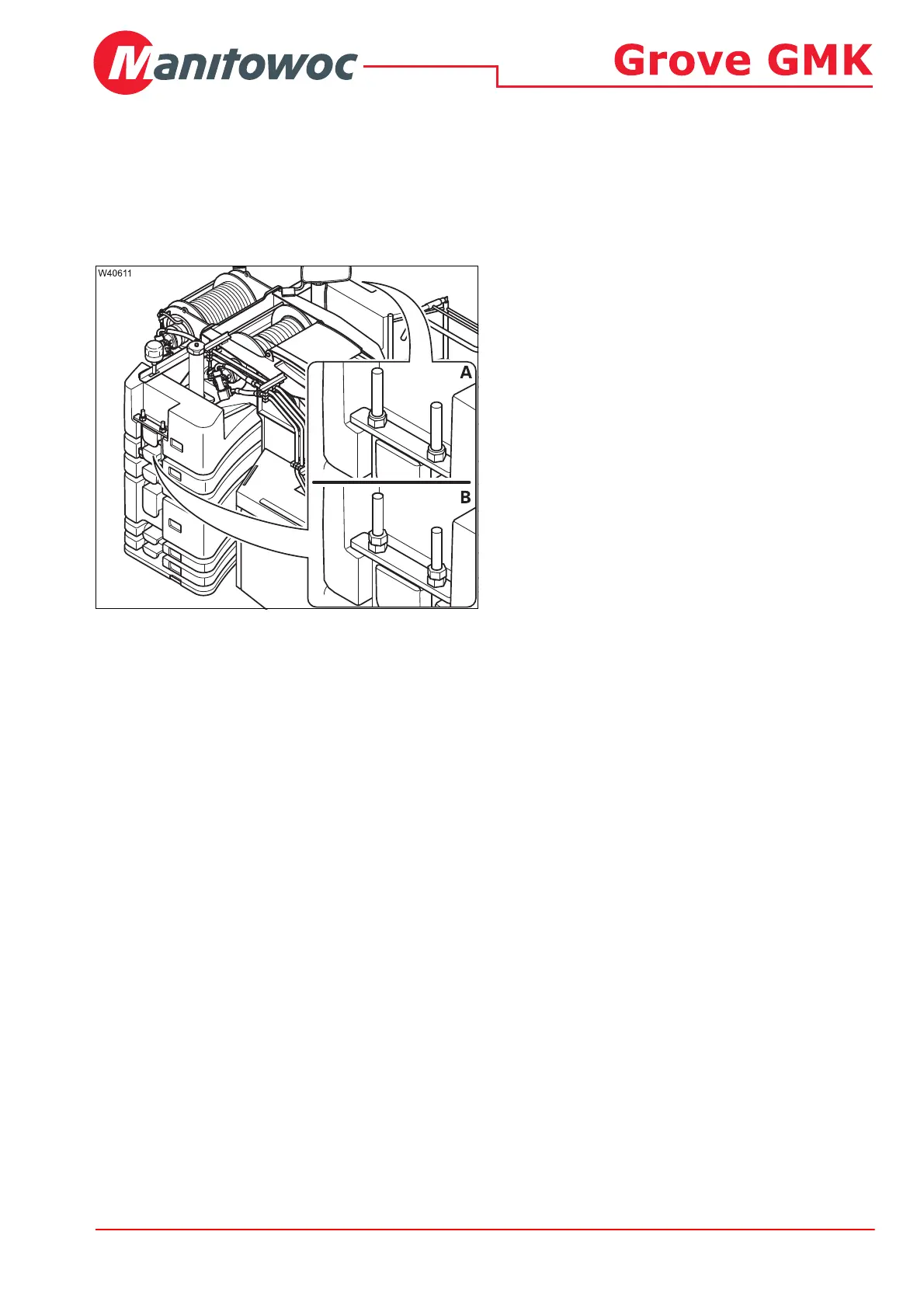

Fasten the counterweight on the turntable
(
A
) – with a self-locking nut
or
(
B
) – with two nuts.
Tightening torque: 100 Nm
Mounting counterweight
on the turntable
