Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 736 en 9 - 129
GMK4090
xx.xx.xxxx
Houselock à Switching the houselock on/off, p. 11 - 16.

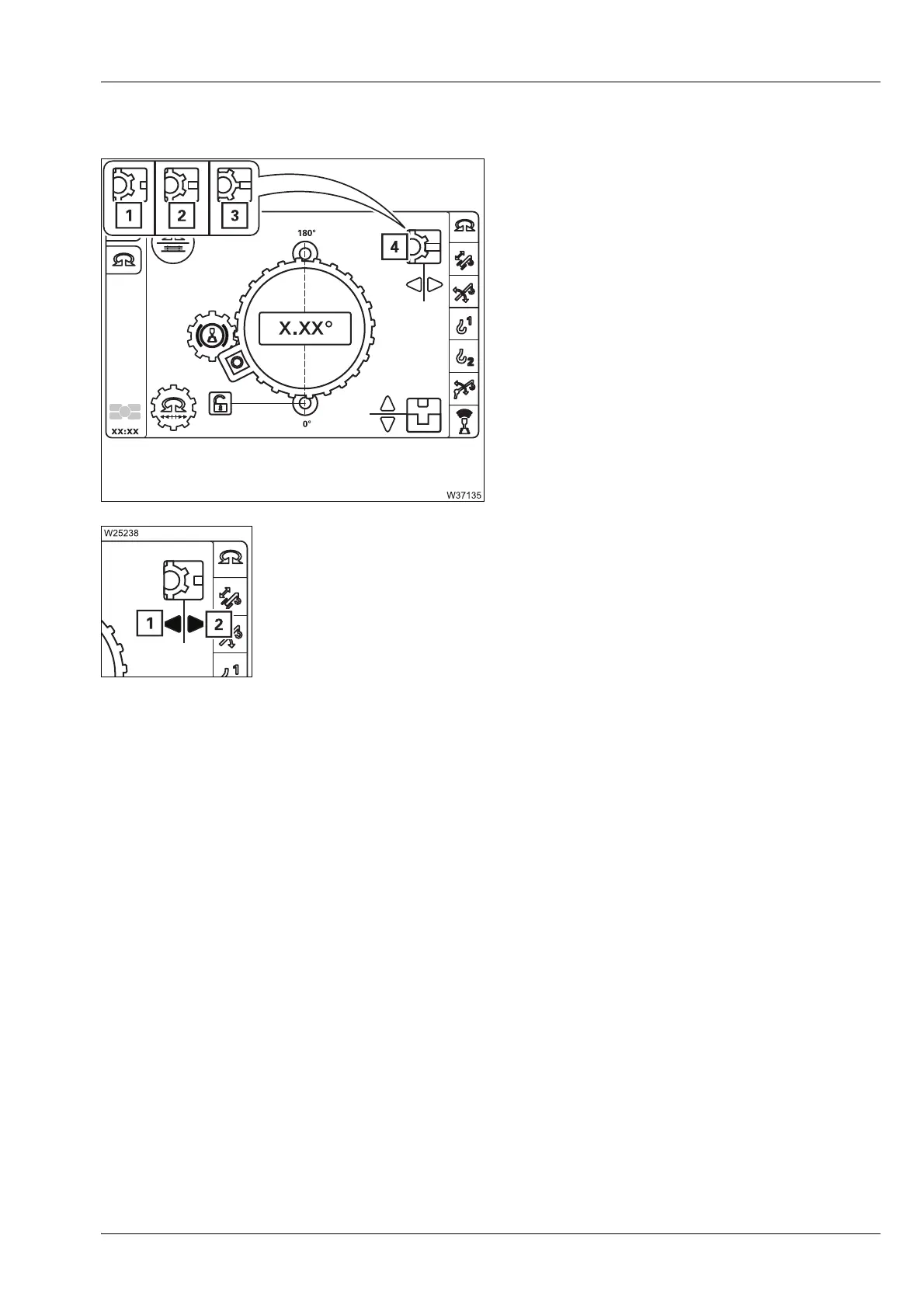

Locking status displays
The current position of the locking pin is
shown by different symbols:
House lock on/off
1 Unlocked
2 Intermediate position
3 Blocked, locking pin in front of a tooth
4 Locked
à p. 11 - 16
Switch on: Symbol (1) – Pin extends
Switch off: Symbol (2) – Pin retracts
à p. 11 - 16
