Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 736 en 9 - 153
GMK4090
xx.xx.xxxx

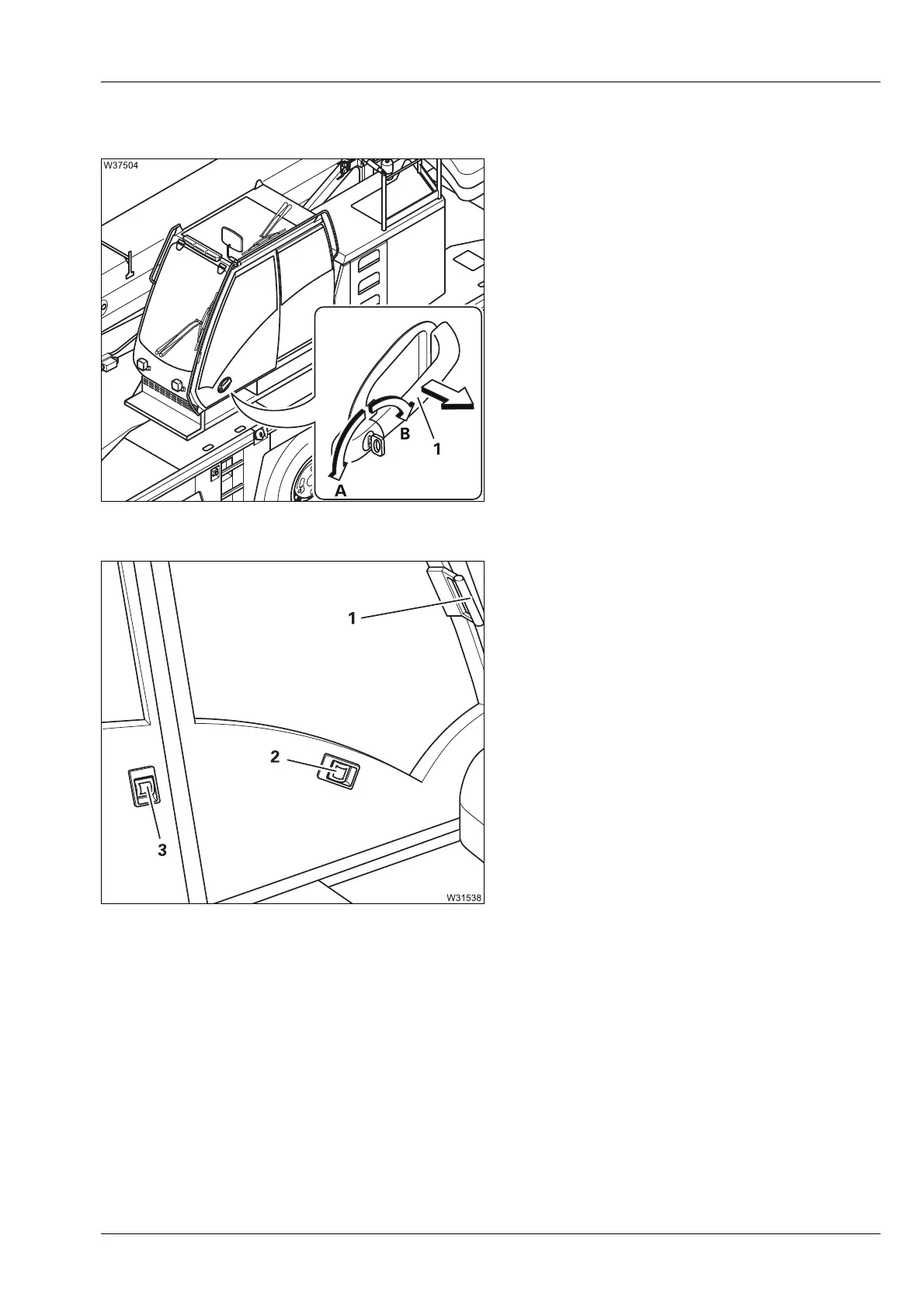

Crane cab door
From outside
Unlocking
• Turn the key in direction A.
Locking
• Turn the key in direction B.
Open/close
• Pull the handle (1).
• Slide the door.
From inside
–Closing
Pull unlocking lever (3), push door forwards
by handle (1) – engages.
Locking from inside not possible.
– Opening
Pull unlocking lever (2), push door back by
handle (1) – latches.
