Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 736 en 11 - 45
GMK4090
xx.xx.xxxx
Hoist checking You must check that the RCL uses the correct reeving data.
The RCL always uses the reeving data for the first hoist to be switched on.

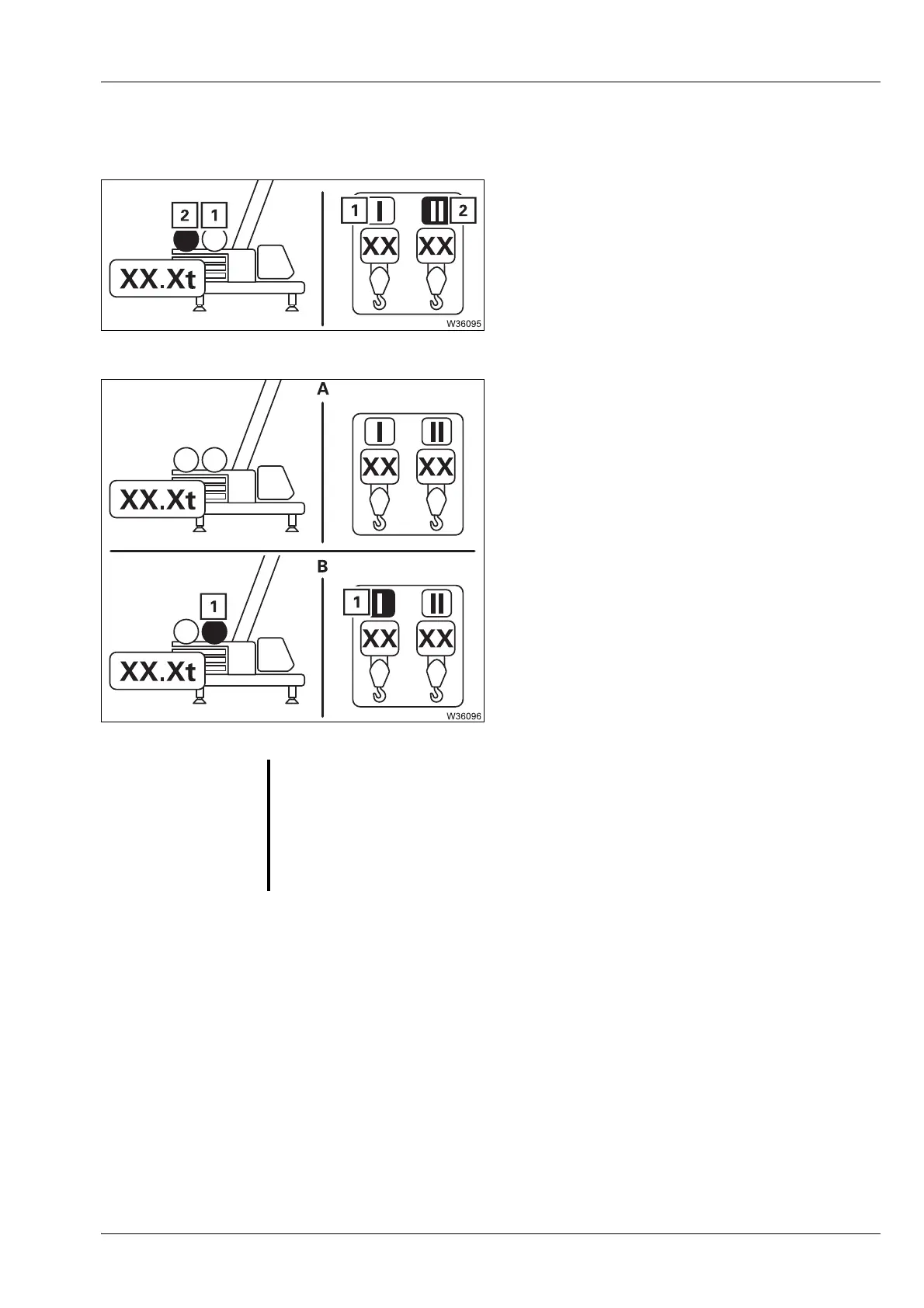

• Check the symbol (1) or (2) for the hoist with
which you wish to lift the load. The symbol
must be orange.
If the symbol is grey, for example, the sym-
bol (1) for the main hoist, then you must
switch over the display.
Switching over the display
• (A) – Switch off both hoists – both symbols
become grey.
• (B) – Switch on the hoist with which you
wish to lift the load.
The corresponding symbol becomes
orange, for example, the symbol (1) for the
main hoist.
If you wish to also lift a load with the other hoist during subsequent crane
operation then you must first switch over the display appropriately.
G
Risk of accidents due to incorrectly entered reeving
Check the displayed reeving after each switch over and enter the current
reeving if necessary.
In this way, you prevent the RCL from making calculations based on an
incorrect reeving value and the truck crane from becoming overloaded or
from overturning.
