Crane operation
11.4 Operation of the rated capacity limiter
11 - 68 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

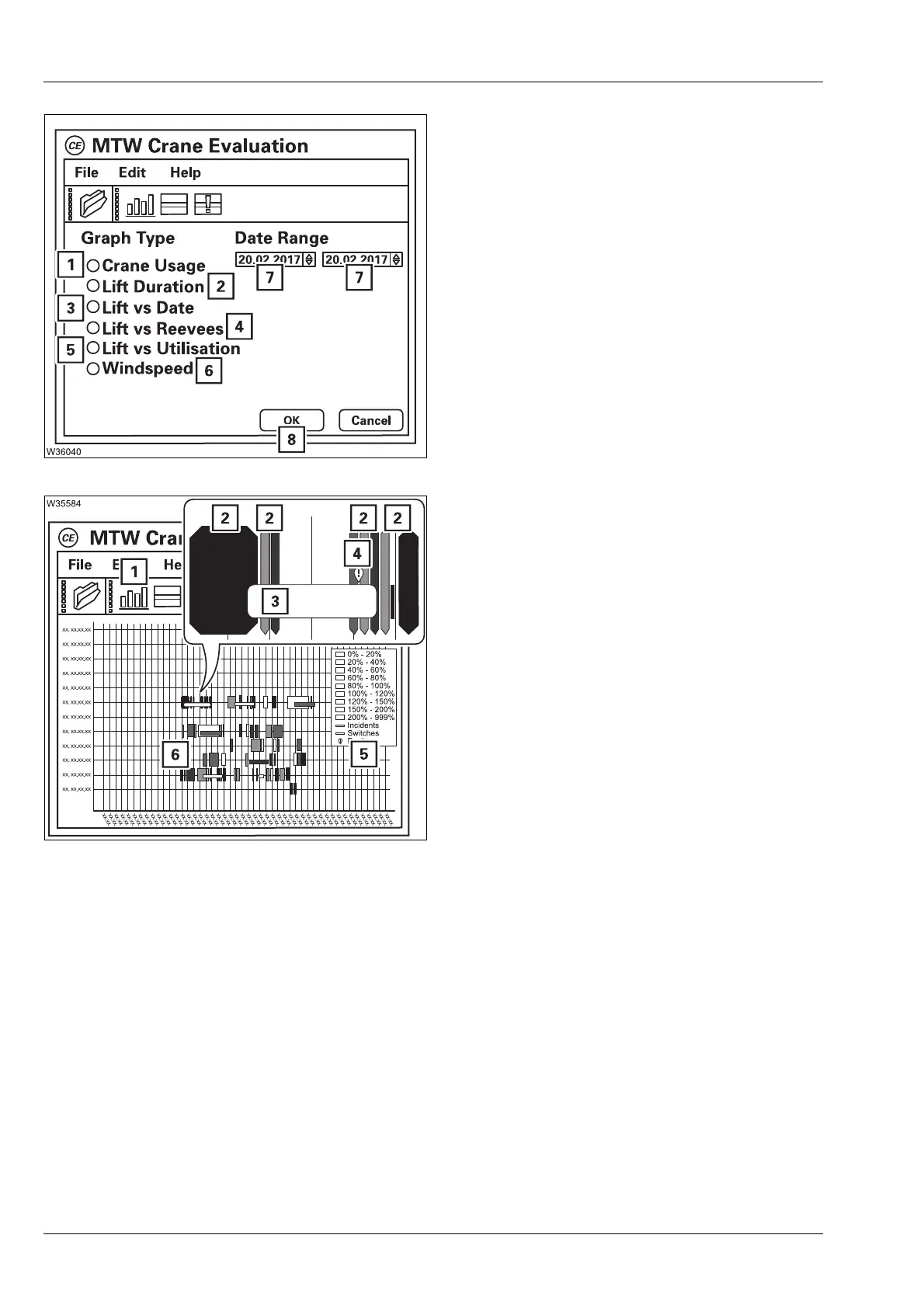

Displaying the graphic
• Select the desired period (7) and desired
graphic.
• Confirm the selection via the symbol (8).
The selected graphic is displayed, for exam-
ple, the
Crane use graphic.
All lifts are shown as bars (2) – coloured
according to the utilisation area. Events and
actuates switches are shown as narrow,
framed bars (3). Errors are shown as
symbols (4).
The legend (5) defines the assignments of the
colours and symbols. You can hide and reveal
symbols in the graphic by clicking in the leg-
end.
Clicking with the left mouse button provides
more details (6) on an element.
Use the symbol (1) to open the graphic selec-
tion window.
1 Crane use (offers the greatest variety of
information)
2 Lifting duration per utilisation area
3 Number of lifts per day
4 Number of lifts per reeving
5 Number of lifts per utilisation area
6 Wind speed for each day
