Crane operation
11.5 Crane operation with main boom
11 - 92 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
Assignment for
display

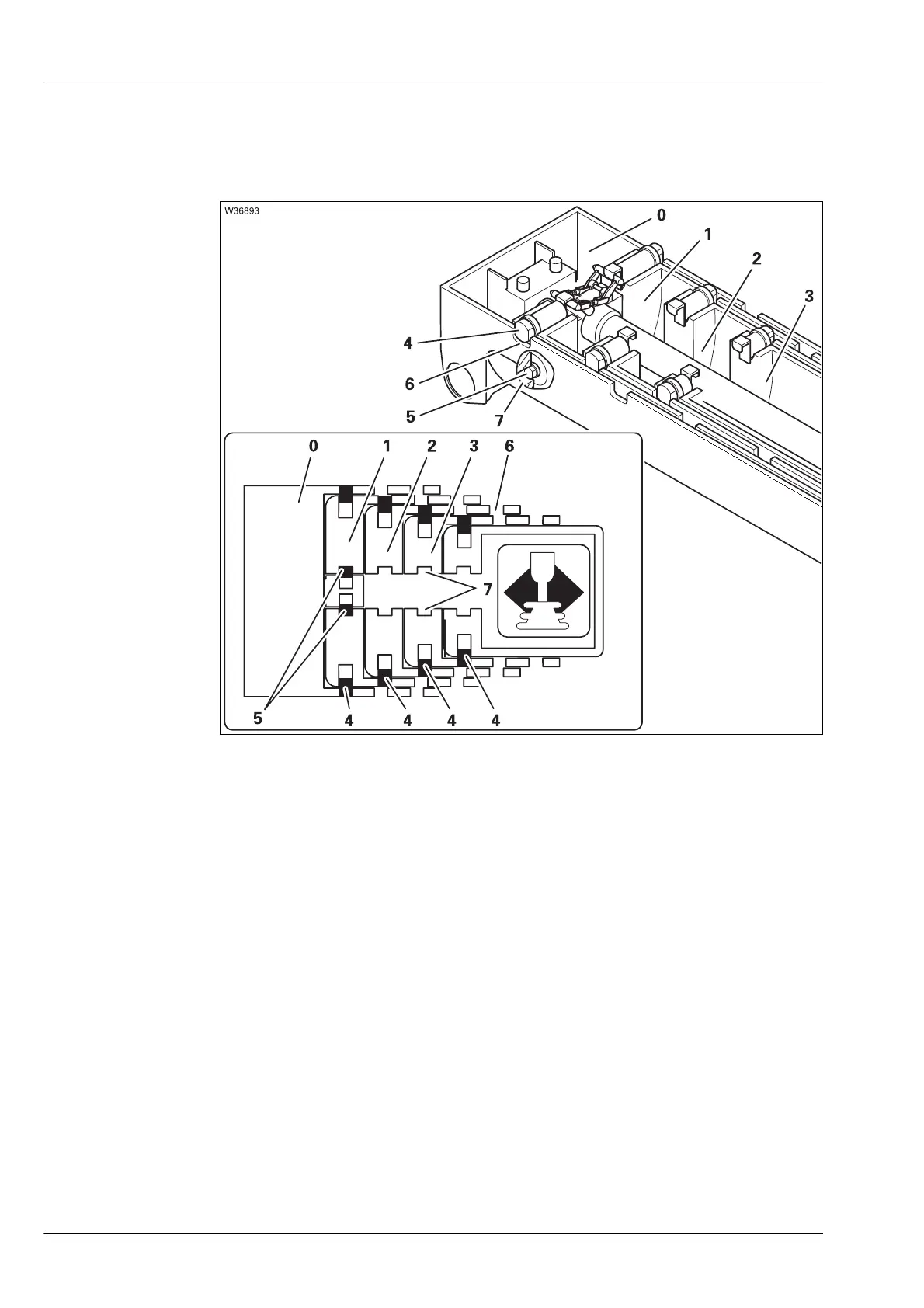

The CCS display shows a sectional view of the main boom in the menus.
The following elements are displayed:
0 Basic section
1 Telescopic section
I
2 Telescopic section II
3 Telescopic section III
4 Locking pin on the telescopic section
5 Locking pins on the telescoping cylinder
6 Cutouts, external
7 Cutouts, internal
