Crane operation
11.5 Crane operation with main boom
11 - 102 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

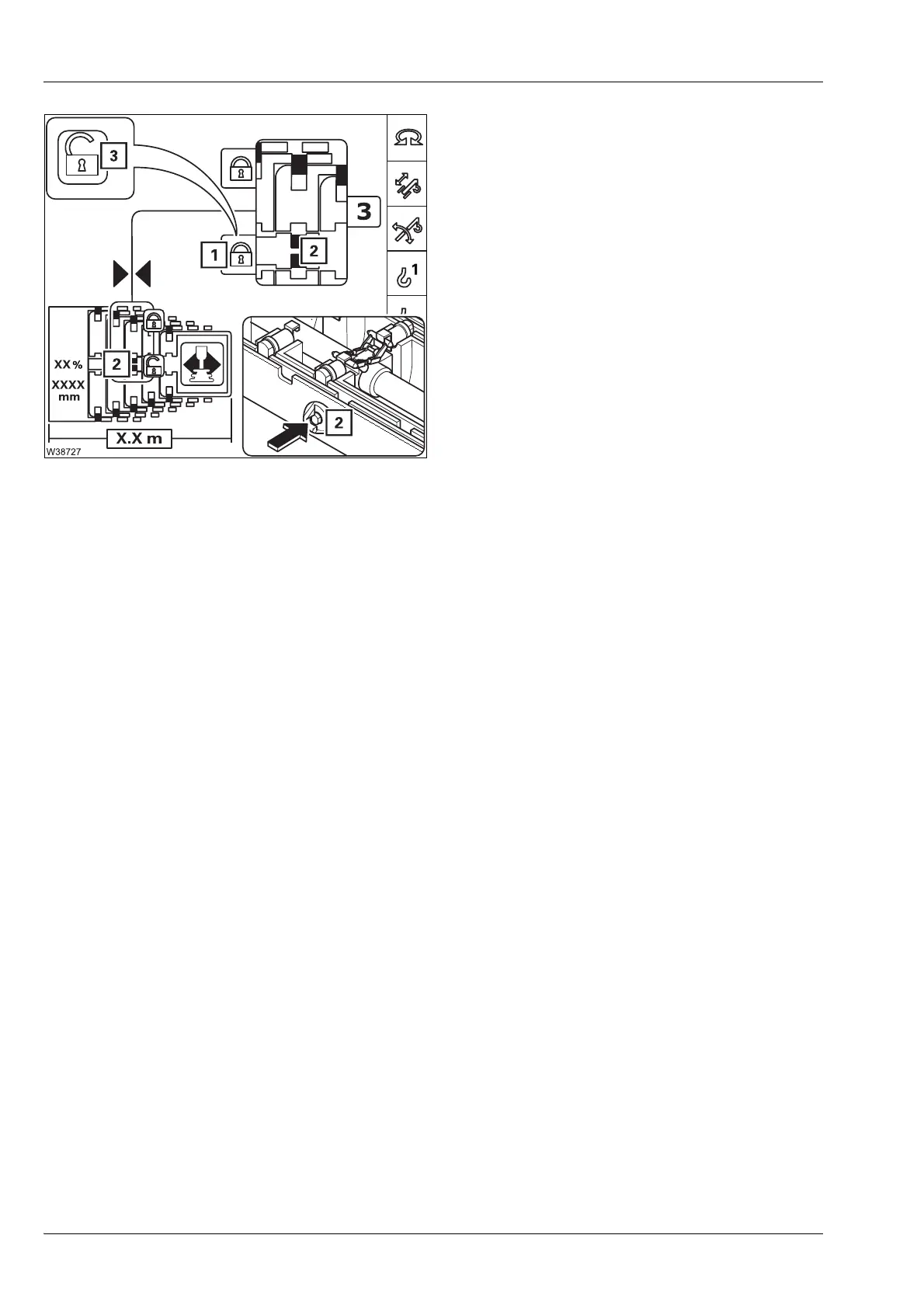

Unlocking
• Select and confirm the symbol (1).
The locking pins (2) retract.
–Yellow:Intermediate position
–Red: unlocked – symbol (3) displayed
