Crane operation
11.9 Heating and air-conditioning system
11 - 150 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

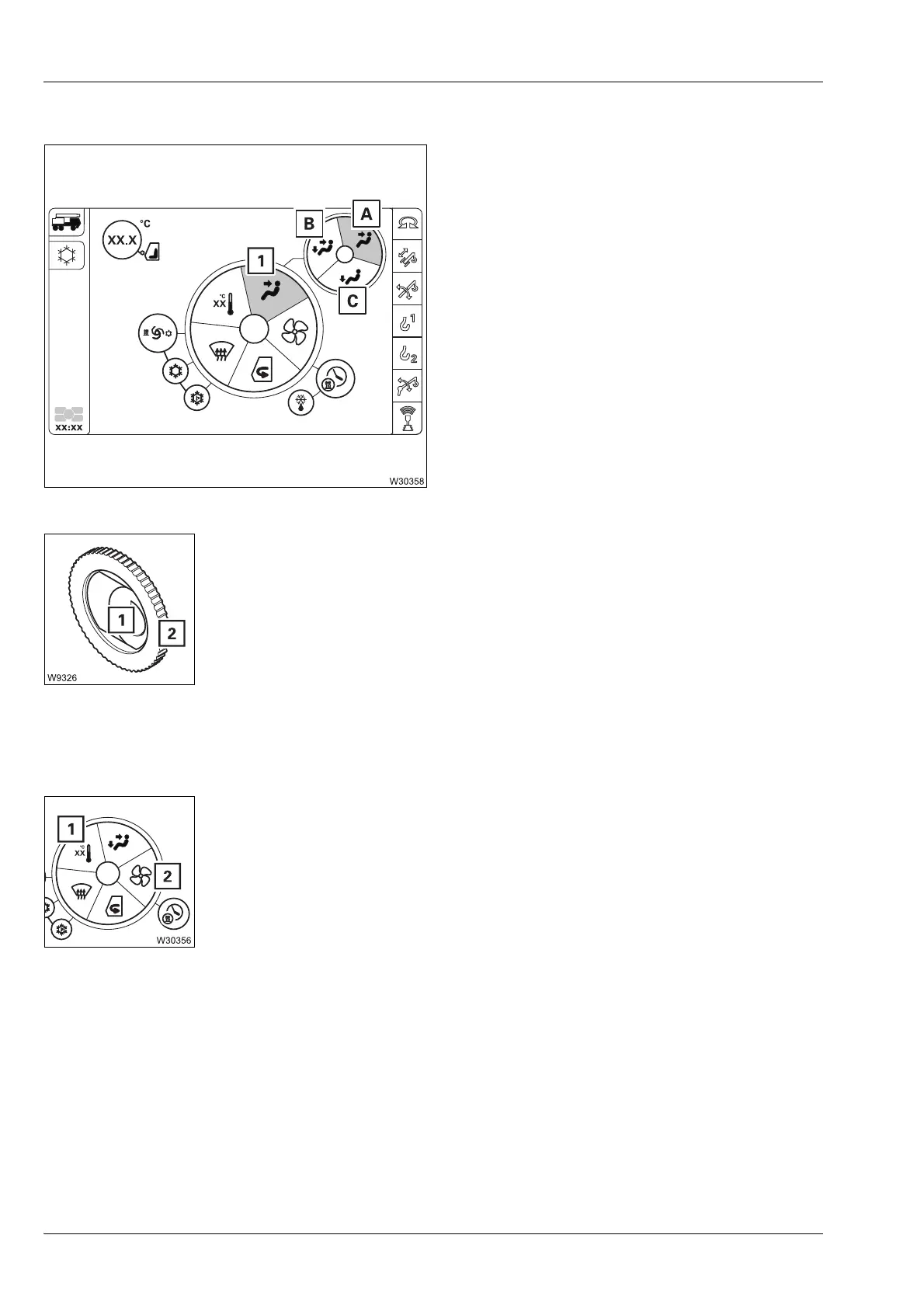

Air distribution You can direct the air to flow out of various air vents.
• Select the corresponding symbol (1) for the
desired air vents.
Adjusting the air vents
Switching off
Switching off the heating system
• Reduce the temperature – symbol (1).
Switching off the ventilation
• Switch off the ventilation – symbol (2).
A Top only
B Top and bottom
C Bottom only
1 – To open: Press in and position lengthwise
– To close: Position crosswise
– To direct the air
flow:
In intermediate position
2 – To direct the air
flow:
Slewing
