Rigging work
12.8 Outrigger operation
Operating manual 3 302 736 en 12 - 57
GMK4090
xx.xx.xxxx
From the control
units
Starting the engine
• Start the engine, either
– from the driver's cab;
à p. 4 - 14
or
– from the control units;
à p. 12 - 27.

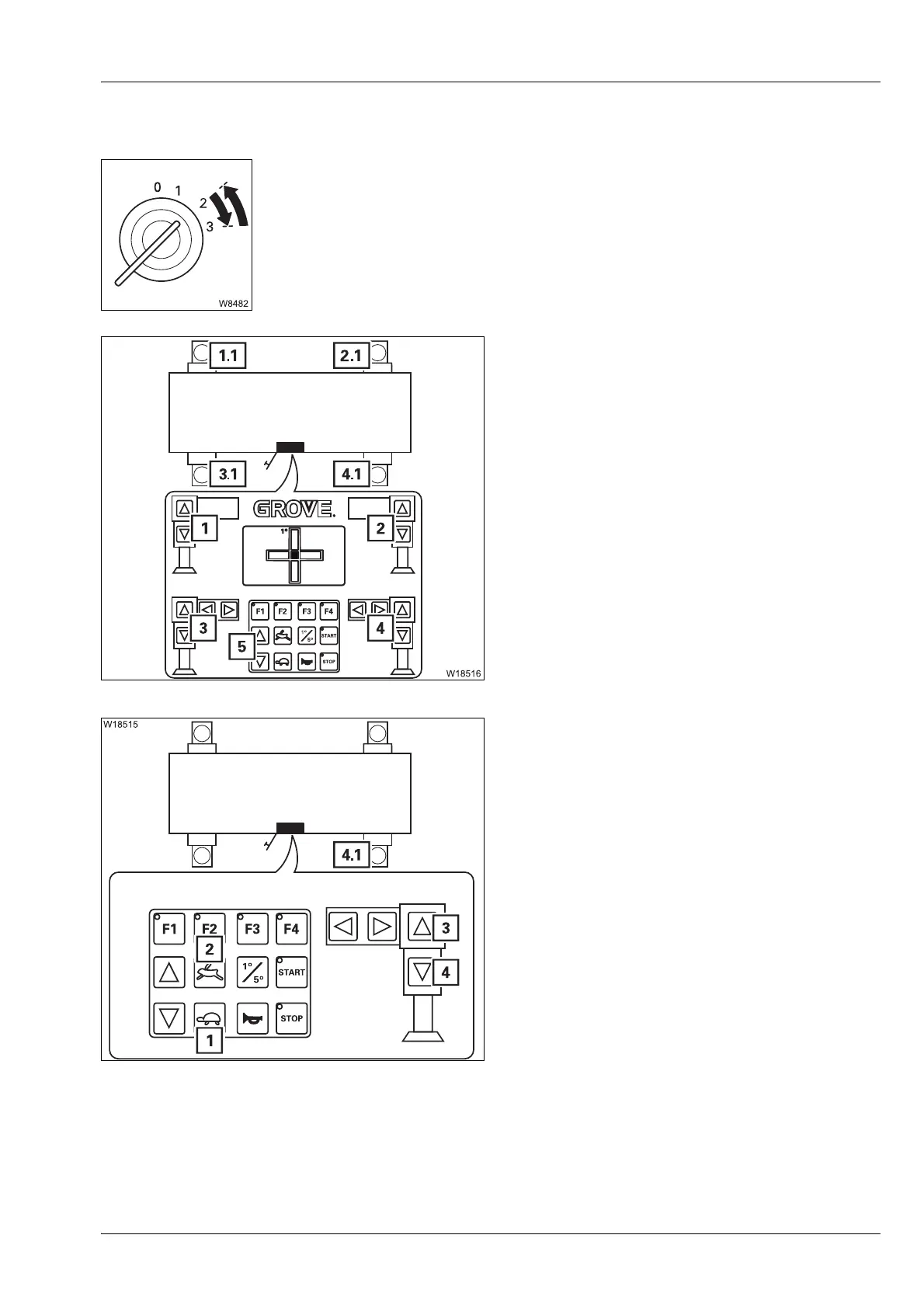

Moving the supporting cylinders
Assignment of buttons:
• Observe the safety instructions for operat-
ing the supporting cylinders;
à p. 12 - 56.
The operation is the same for all supporting
cylinders.
• Press the button
• Also press the button for the desired sup-
porting cylinder, e.g. for 4.1.
You can also operate several supporting cylin-
ders at the same time.
The supporting cylinders move until you let go of the respective button or
until the respective end position has been reached.
s
1 Supporting cylinder 1.1
2 Supporting cylinder 2.1
3 Supporting cylinder 3.1
4 Supporting cylinder 4.1
5 All supporting cylinders (1.1) to (4.1)
1 For normal speed
2 For high-speed mode.
3 For retracting
4 For extending
