Rigging work
12.9 Rigging/unrigging the counterweight
12 - 80 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
Setting down the 1.1 t base plate

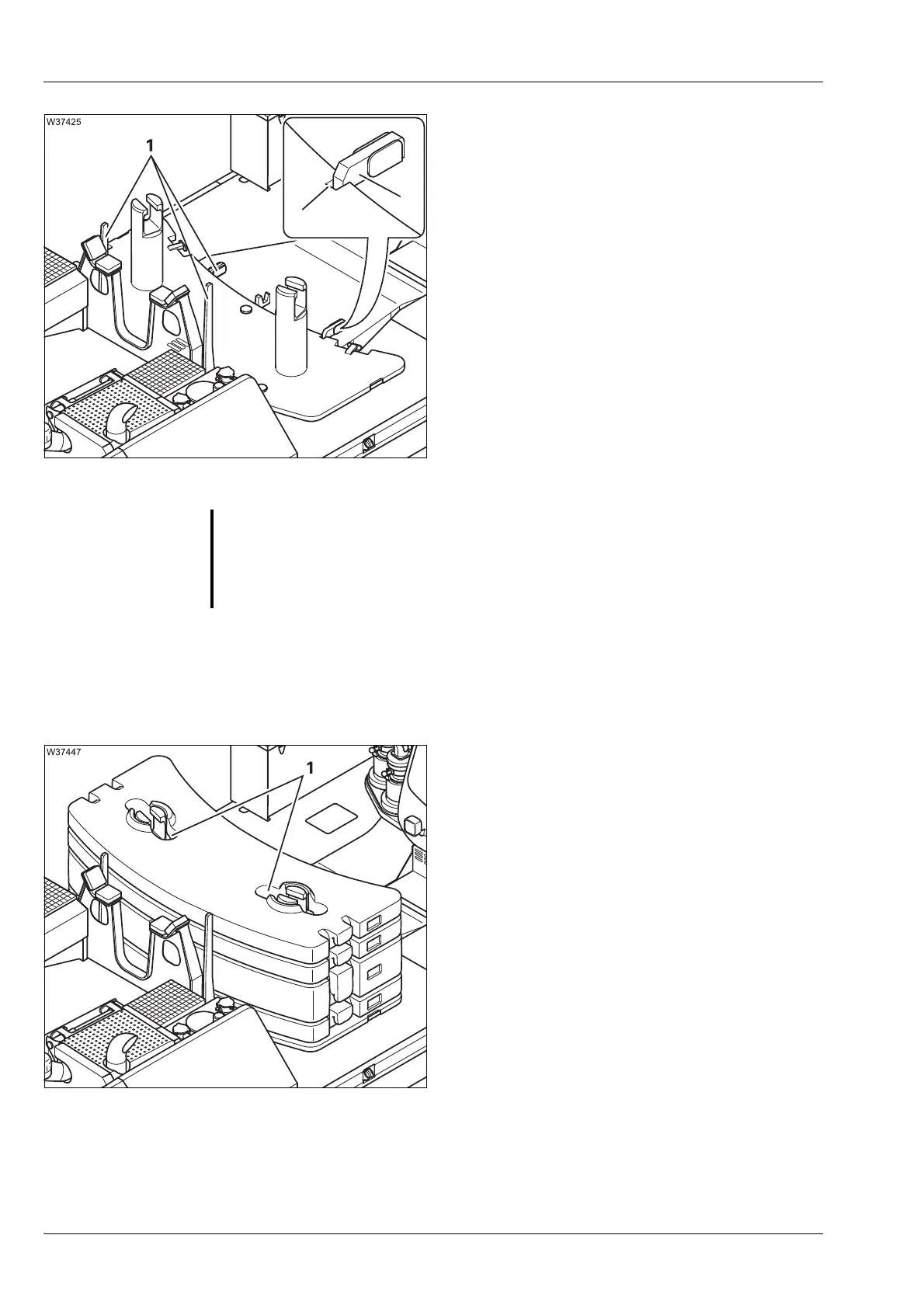

There are four retaining sheets (1) on the
counterweight platform which are used to
bring the 1.1 t base plate into the right position
for rigging.
• Put the 1.1 t base plate between the retain-
ing sheets.
For larger counterweight combinations, now
set additional counterweight sections onto the
1.1 t base plate.
Setting down the
top counterweight
section
Always place a plate with cutouts (1) as the
uppermost counterweight section.
Only then can the lifting cylinder be rotated
into the 1.1 t base plate.
S
Risk of damage to the counterweight
Always place one plate with cutouts at the top. This prevents the lifting cyl-
inders and counterweight being damaged while rigging.
