Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 736 en 12 - 103
GMK4090
xx.xx.xxxx
• The tables specify which counterweight sections are needed for the
respective counterweight combination.

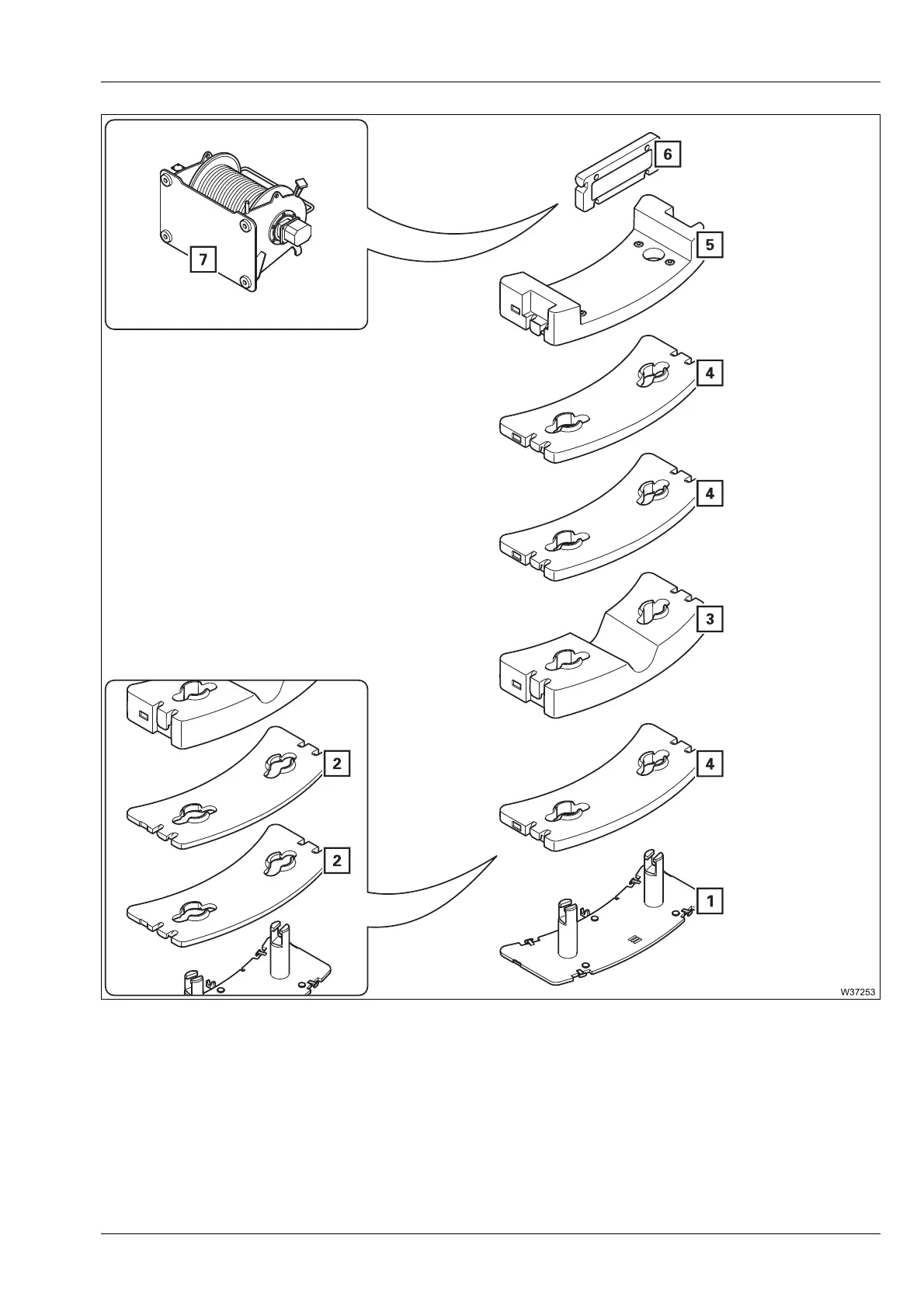

• Lift the counterweight sections onto the base plate one after the other in
the specified sequence
2 to maximum 5.
