Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 736 en 12 - 109
GMK4090
xx.xx.xxxx
Switch on automatic mode

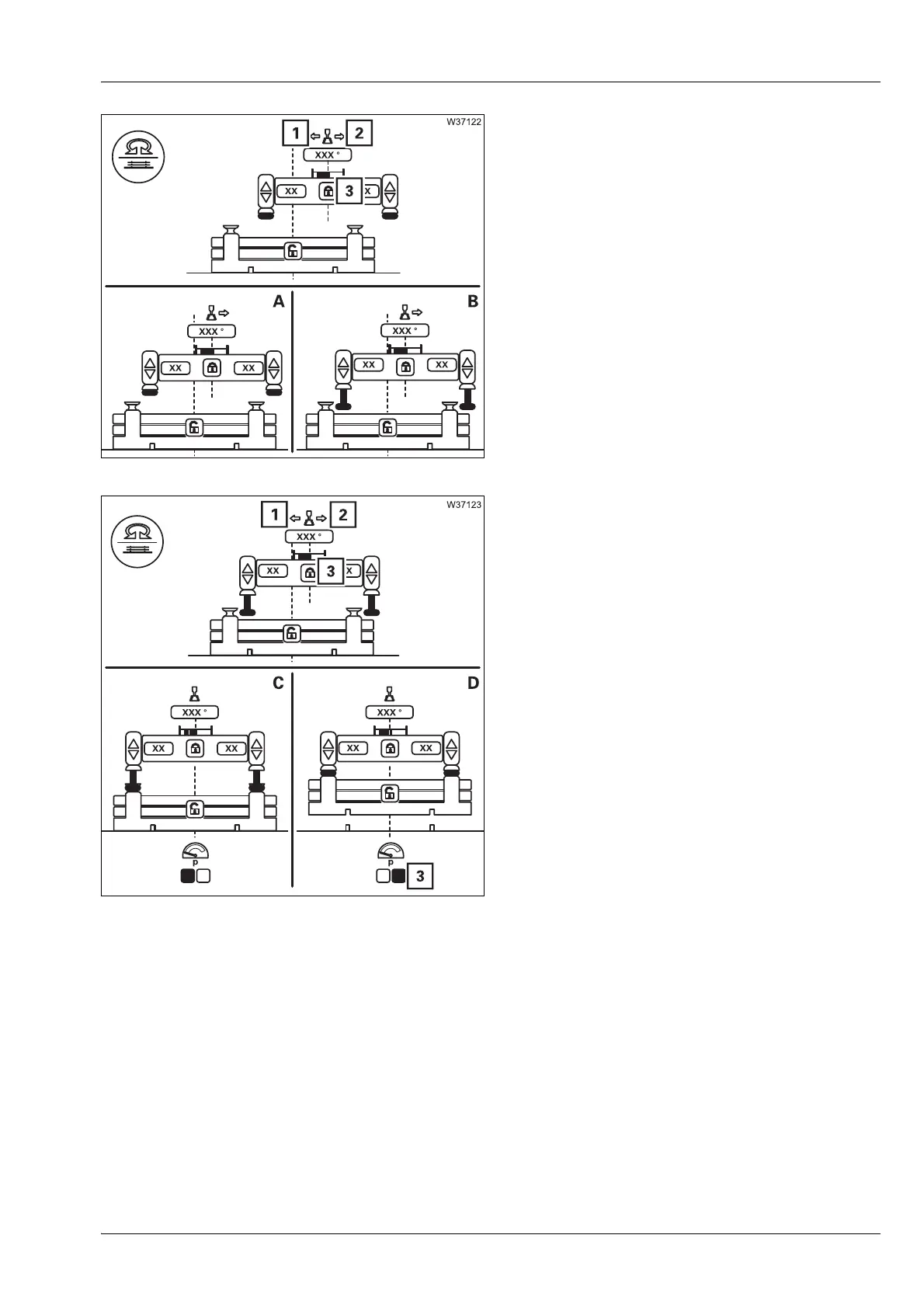

• Select and confirm the symbol (3).
Execute the automatic mode.
• Move the slewing control lever in the dis-
played direction (1) or (2) – the automatic
mode starts.
– The superstructure turns into position (A).
– The lifting cylinders are extended (B).
• Release the control lever.
• Move the slewing control lever in the dis-
played direction (1) or (2) – the automatic
mode continues.
– The superstructure turns into position (C).
– The lifting cylinders are retracted (D).
– The counterweight is pre-charged – sym-
bol (3) green.
• Release the control lever.
