Rigging work
12.9 Rigging/unrigging the counterweight
12 - 114 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
For driving with axle loads greater than 12 t

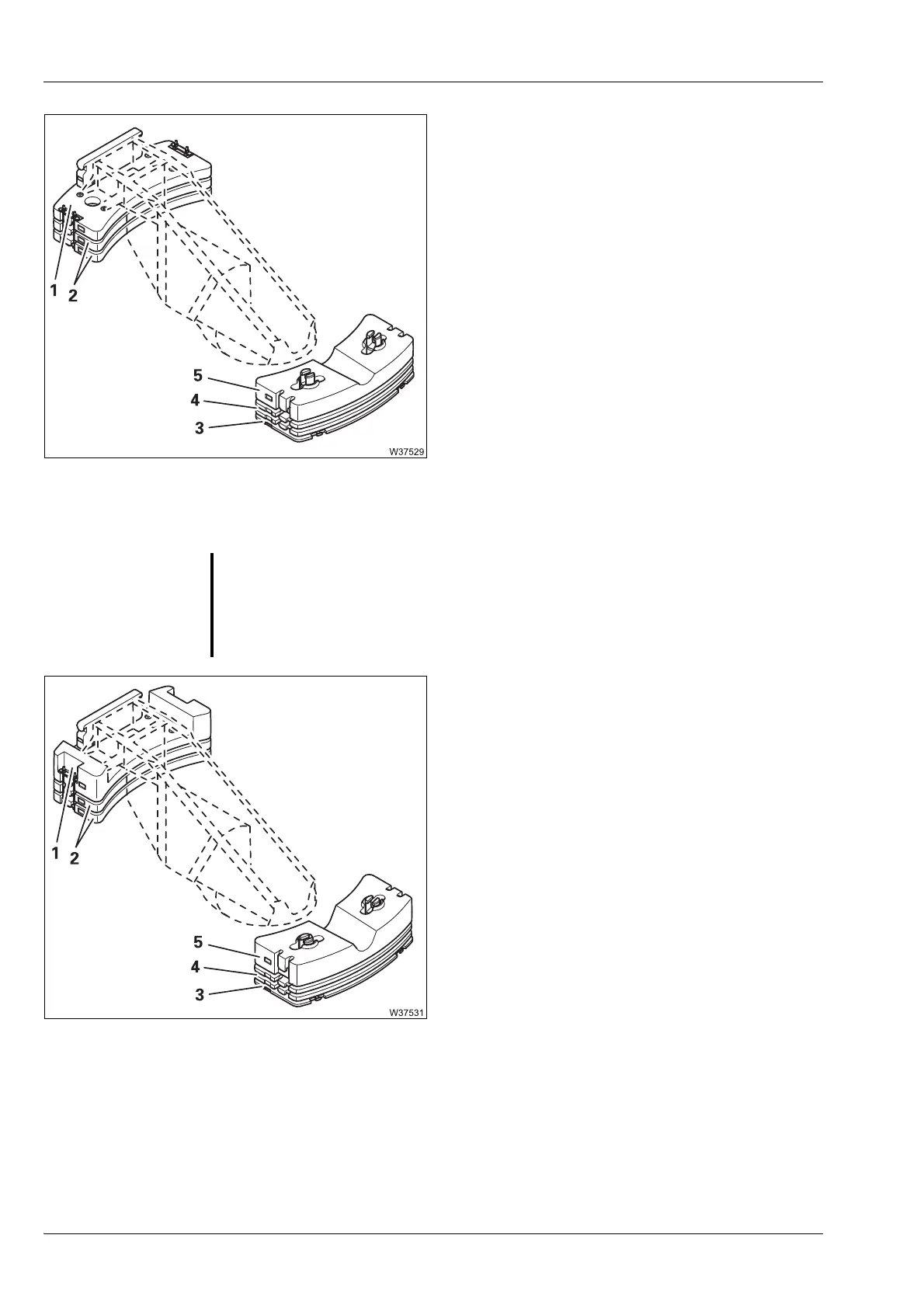

The 2.9 t plate (1) and two 2.3 t plates (2) are
mounted on the turntable
On the counterweight platform:
– The 1.1 t base plate (3)
– Two 1.15 t plates or one 2.3 t plate (4),
– One 4.6 t plate (5)
Version B
For driving with axle loads greater than 12 t
The 4.0 t plate (1) and two 2.3 t plates (2) are
mounted on the turntable
On the counterweight platform:
– The 1.1 t base plate (3)
– Two 1.15 t plates or one 2.3 t plate (4)
– One 5.8 t plate (5)
S
Risk of damage to the derricking cylinder
Set down only the 5.8 t plate on the 1.15 t plate or the 2.3 t plate.
In this way you can prevent the derricking cylinder being pushed against an
incorrectly assembled counterweight combination and becoming damaged
when the main boom is being set down.
