Manitowoc GROVE GMK4090 User Manual

Rigging work
12.10 Rigging work on the main boom
Operating manual 3 302 736 en 12 - 145
GMK4090
xx.xx.xxxx

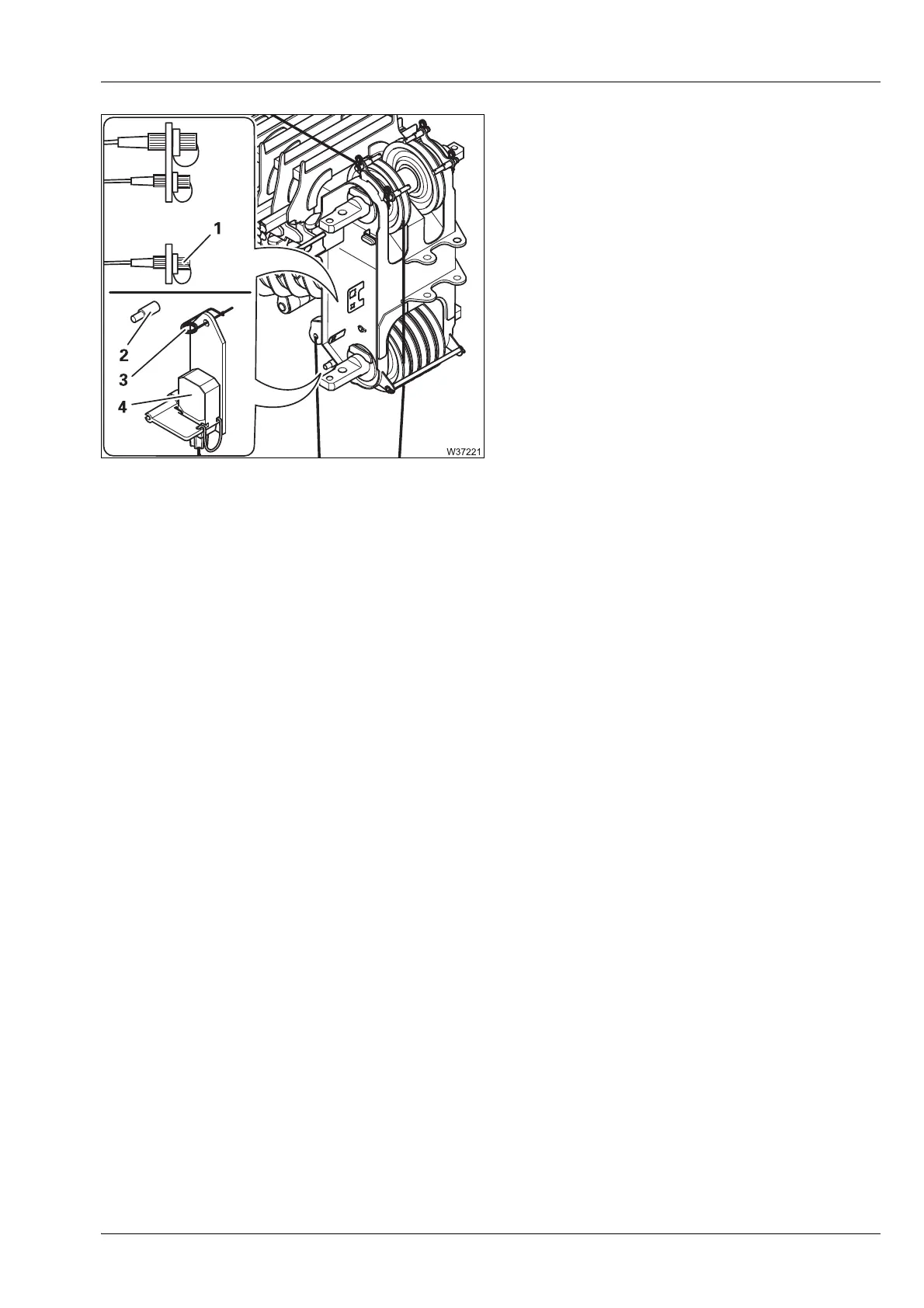

Removing the right lifting limit switch
• Pull out the plug and close the socket with
the protective cap (1).
• Remove the lifting limit switch (4) from the
bracket (2).
• Attach the retaining pin (3) to the lifting limit
switch.
