Rigging work
12.10 Rigging work on the main boom
12 - 148 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

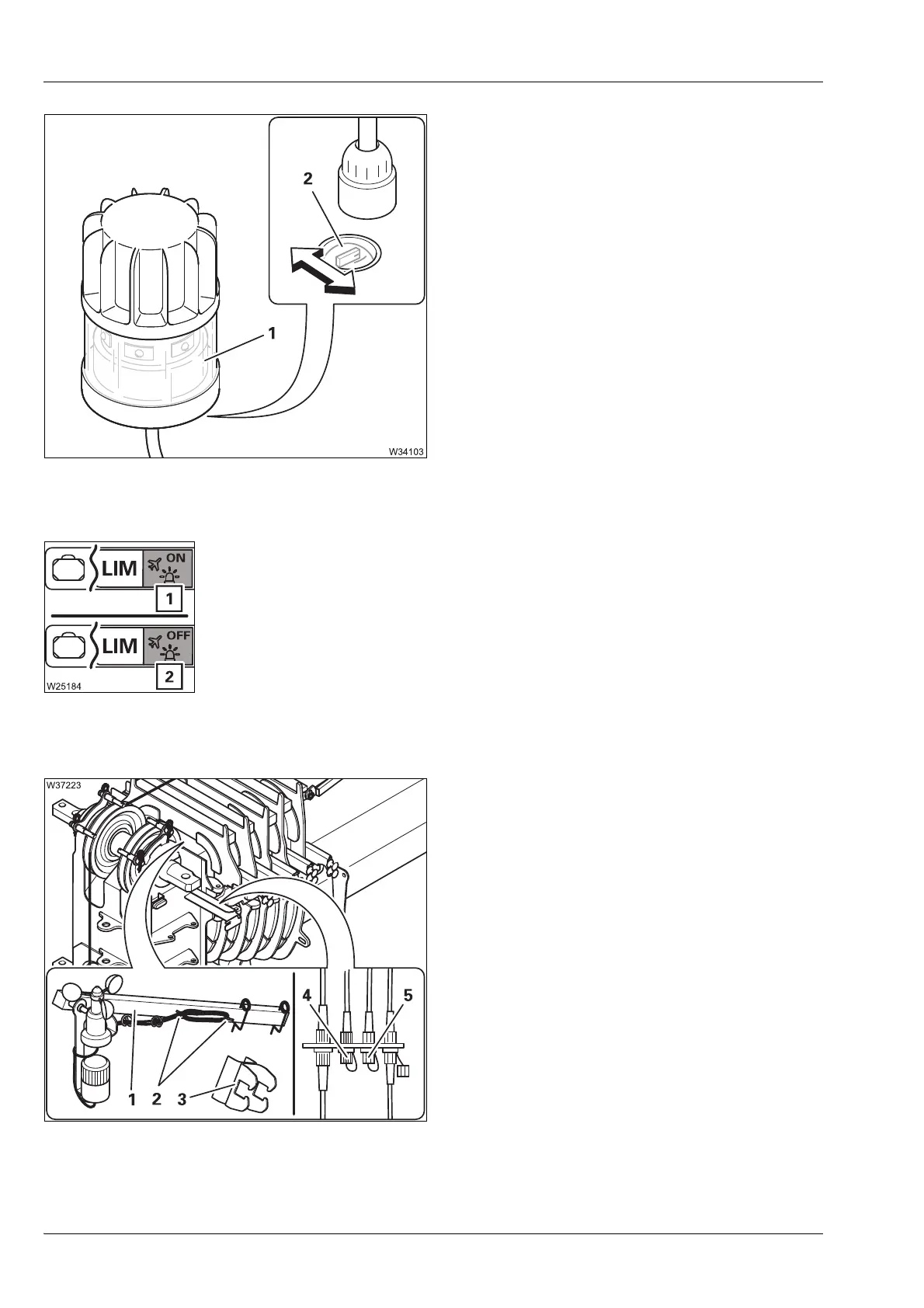

Depending on the additional equipment, the
truck crane can be equipped with a switchable
air traffic control light.
This air traffic control light (1) has
Flashing light
and
Constant light lighting modes.
• Select the desired lighting mode using the
switch (2).
Switching on/off
Removing You must remove the rod with the anemometer/air traffic control light
before driving on the road.
• Switch off the air traffic control light.
• Remove the plug and close the sockets (5)
and (4) with the protective caps.
• Wind the cables on to the clamps (2).
• Take the rod (1) out of clamp (3).
Switch on: Select symbol (1) and confirm – symbol ON is displayed
Switch off: Select symbol (2) and confirm – symbol
OFF is displayed
