Rigging work
12.11 Other rigging work
12 - 160 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

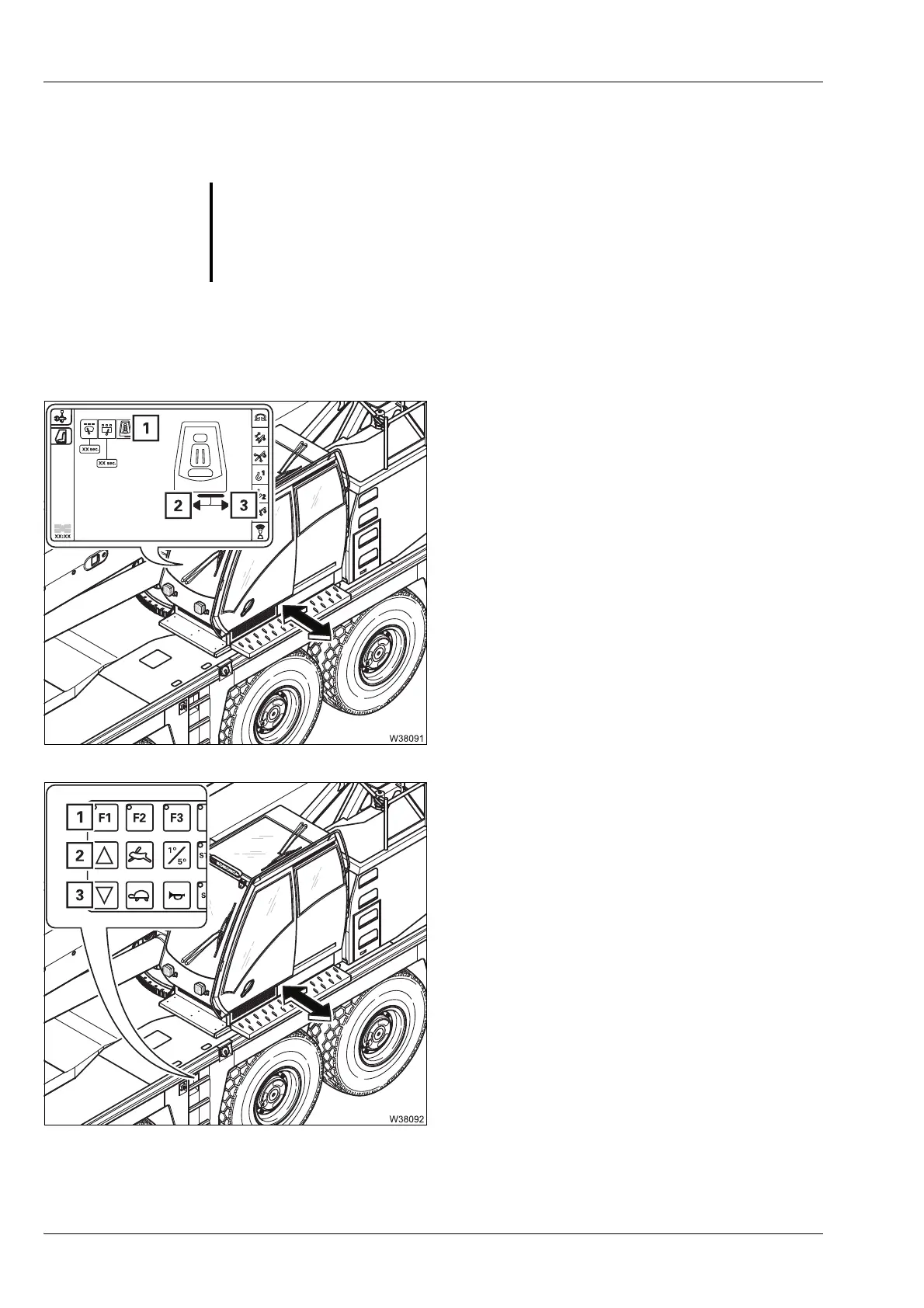

You can also extend the step electrically as additional equipment. The con-
trolling is done using the
Crane cab menu or the control unit of the outrigger.
H
You can only extend the step at the control unit when you are on the oper-
ator side.
In the
Crane cab menu
Select
Extend/retract access ladder as
necessary (1).
Extending
• Select and confirm the symbol (3) – the step
extends.
Retracting
• Select and confirm the symbol (2) – the step
retracts.
On the outrigger control unit
Extend
• Press the buttons (1) and (3) – the step
extends.
Retract
• Press the buttons (1) and (2) – the step
retracts.
G
Risk of accidents by exceeding the permissible overall width
Always retract the step for on-road driving.
When the step is extended, the overall width specified for on-road driving
is exceeded.
