Driving with a rigged truck crane
13.5 Driving from the crane cab
Operating manual 3 302 736 en 13 - 17
GMK4090
xx.xx.xxxx
Selecting the
operating mode
The available operating modes are Crane operation and Driving.
Crane operation

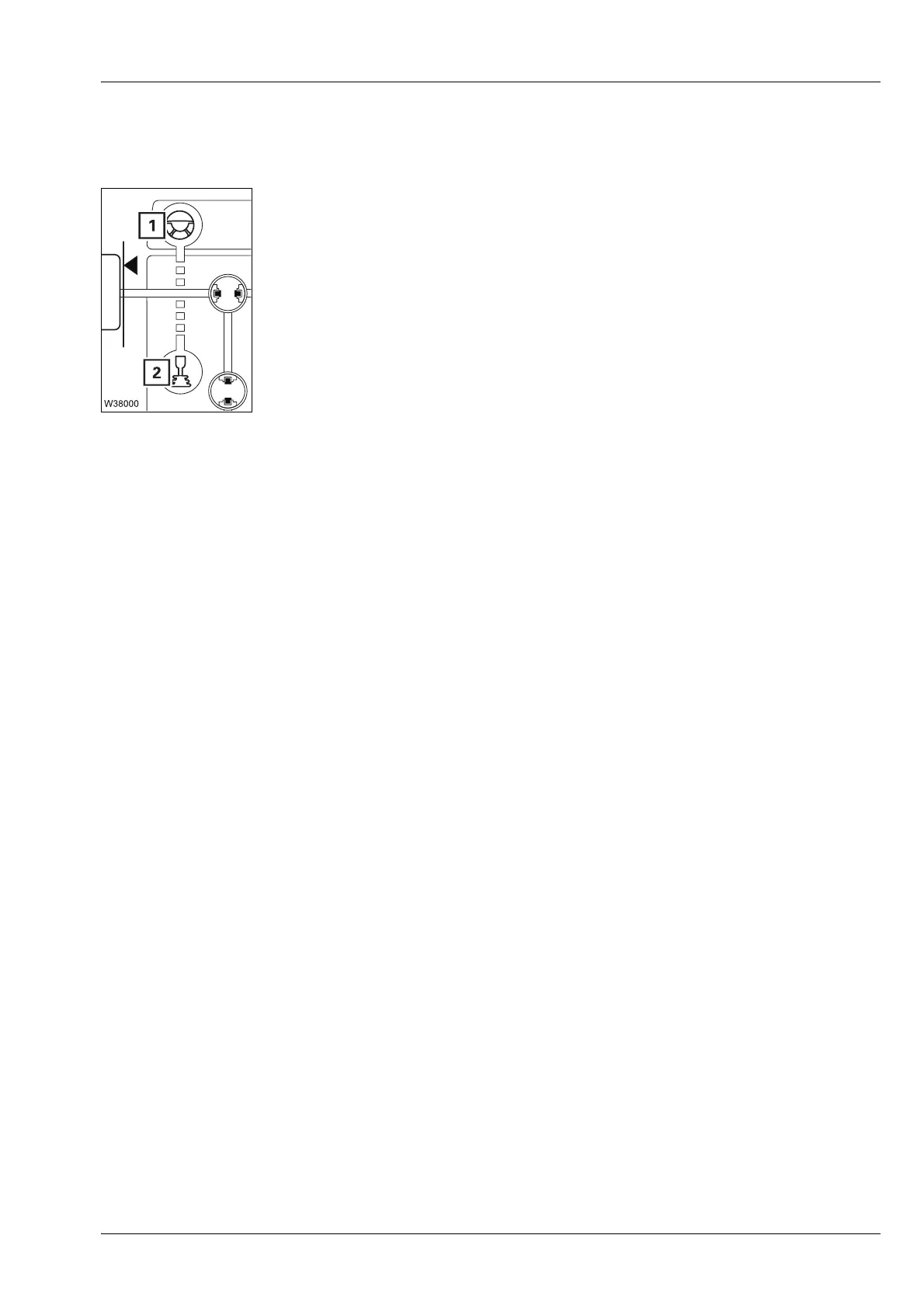

Symbol (1) green – symbol (2) white
In this operating mode, you can perform crane operation in exactly the
same way as when the
Driving menu is closed. This operating mode is
selected when the menu is opened.
Driving
Symbol (1) white – symbol (2) green
In this operating mode, the operating elements for driving are activated and
you can choose to drive with the crane's hydraulic system switched on.
When the crane's hydraulic system is switched on, the crane movements
are released with reduced power (no high-speed mode).
Selecting the operating mode
• Select and confirm the symbol (2) – the active operating mode is dis-
played.
