Driving with a rigged truck crane
13.5 Driving from the crane cab
Operating manual 3 302 736 en 13 - 21
GMK4090
xx.xx.xxxx
Switching the
steering direction
The steering direction switched on is saved and is retained even after a
restart.
The display shows the currently set steering direction.
Switching over
• Select and confirm the desired symbol
H
All illustrations and descriptions in the following sections refer to the steer-
ing direction
Steering wheel. When you switch to the Reversed steering direc-
tion, remember that the wheels will turn in the opposite direction.
Displays when
steering
The current steering angle of the wheels is displayed.

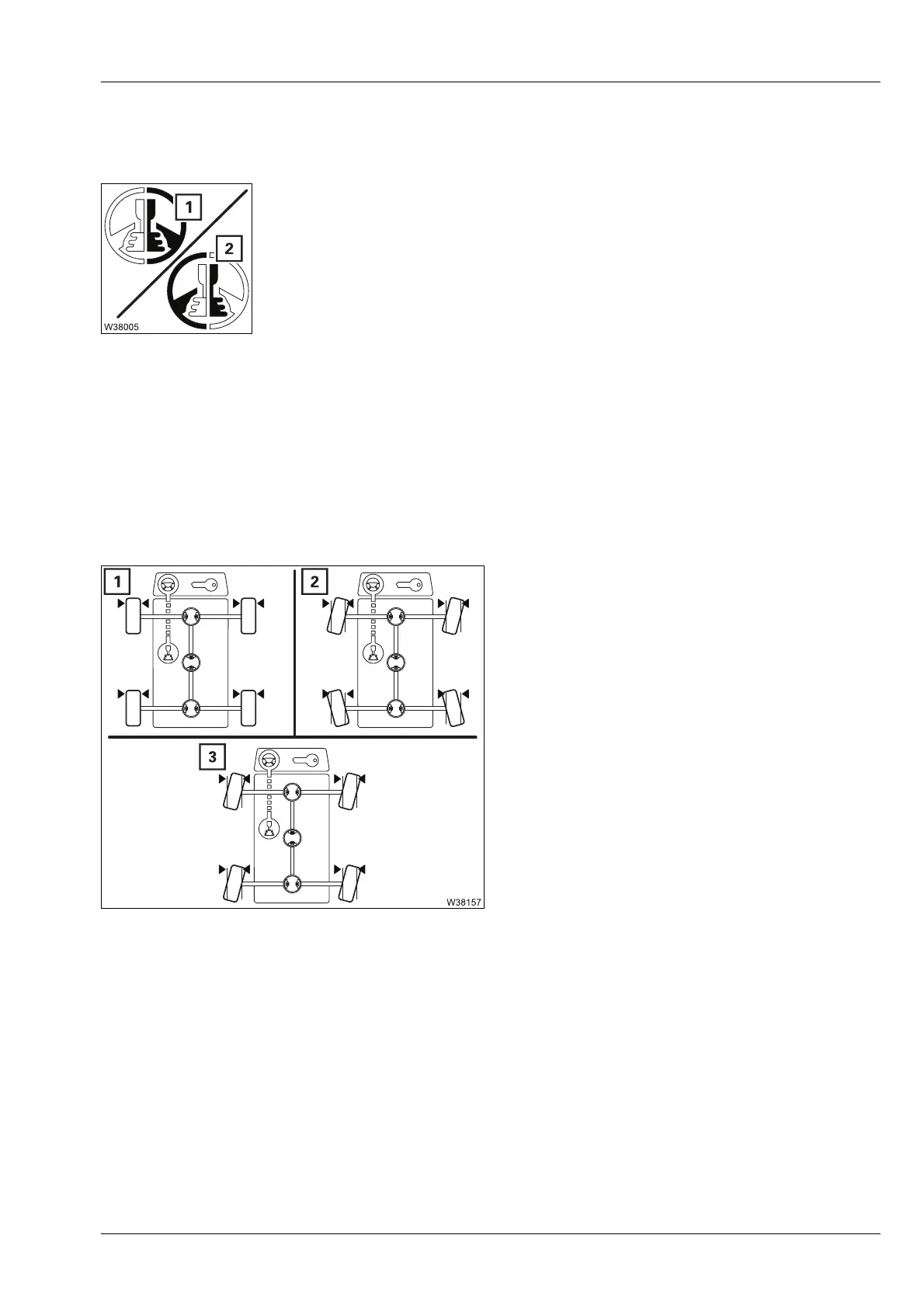

The symbols show the current steering angle:
s
1 Steering direction Steering wheel
2 Steering direction Reversed (compared to steering wheel)
1 Straight ahead position
2 Driving around corners
3 Crab travel mode
