Driving with a rigged truck crane
13.5 Driving from the crane cab
Operating manual 3 302 736 en 13 - 29
GMK4090
xx.xx.xxxx
Switching on

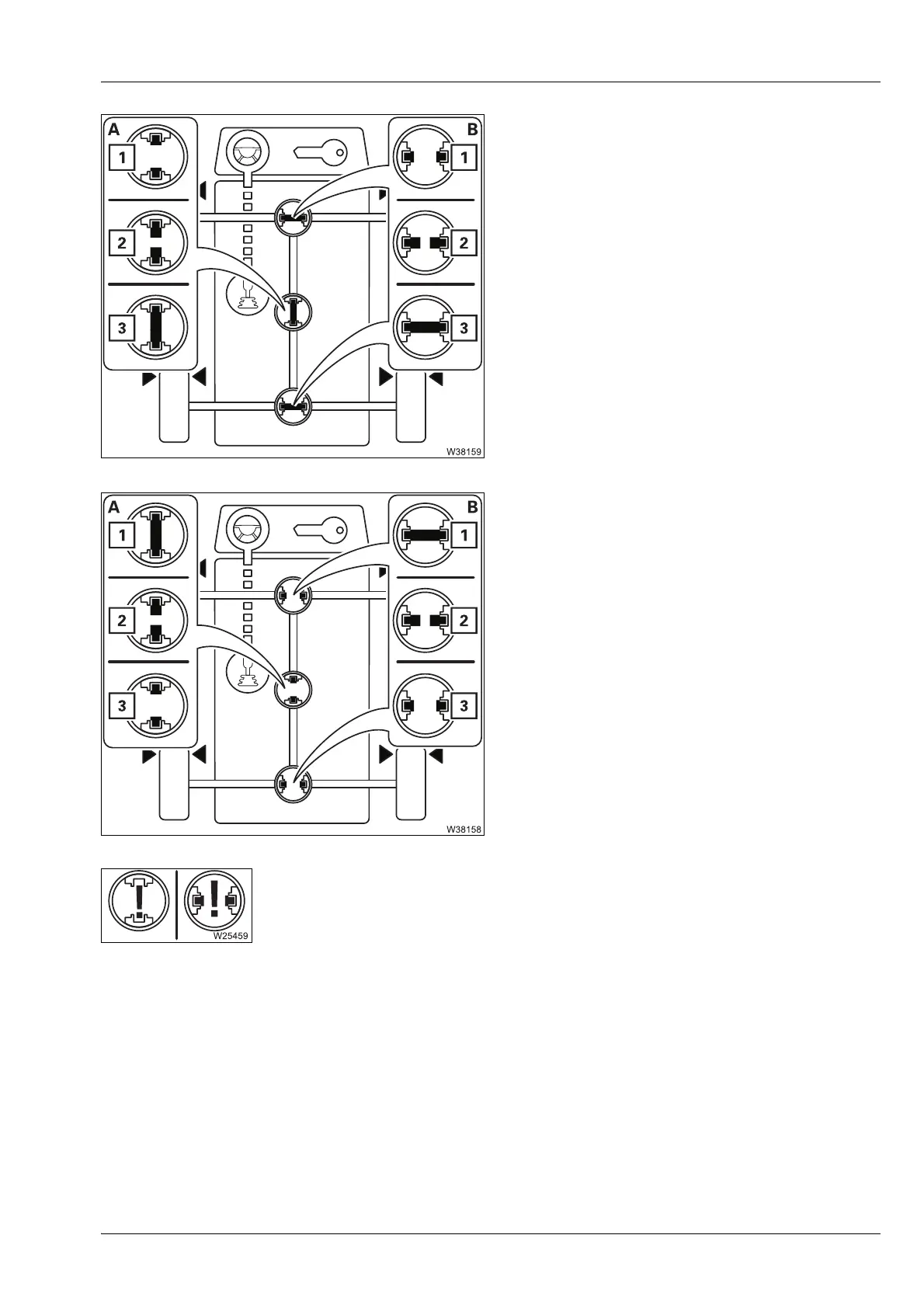

• Select and confirm the symbol (1) for the
– Longitudinal differential locks (A) or
– Transverse differential locks (B).
• Start moving slowly – display:
– First symbol (2) – yellow, then symbol (3)
– red, differential locks on.
Switching off
• Select and confirm the symbol (1) for the
– Longitudinal differential locks (A) or
– Transverse differential locks (B).
Display:
– first symbol (2) – yellow, then symbol (3)
– green, differential locks off.
If symbol (3) is not green then drive back and
forth slowly.
If the error symbol is displayed, contact
Manitowoc Crane Care.
