Malfunctions during crane operation
14.4 Troubleshooting
Operating manual 3 302 736 en 14 - 25
GMK4090
xx.xx.xxxx

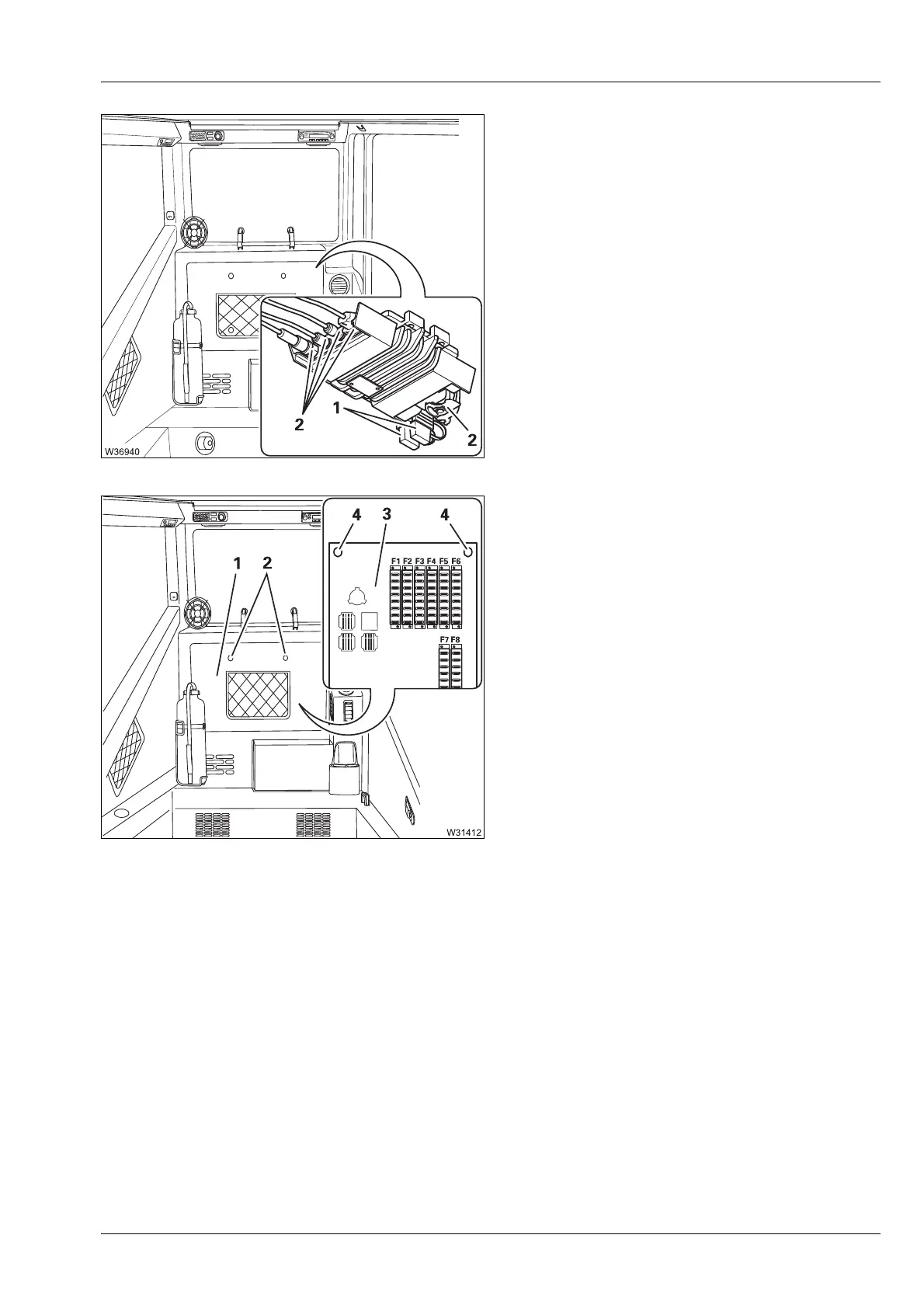

• Check the fuses (1) and replace them if
necessary.
• Check whether the plugs (2) are plugged in:
After checking
• Fold the plate (3) up and secure it with the
screws (4).
• Fasten the cover (1) using the bolts (2).
Designation Amperage
F3401 5 A
F3402 5 A
