Malfunctions during crane operation
14.8 Fuses in the crane cab
Operating manual 3 302 736 en 14 - 73
GMK4090
xx.xx.xxxx

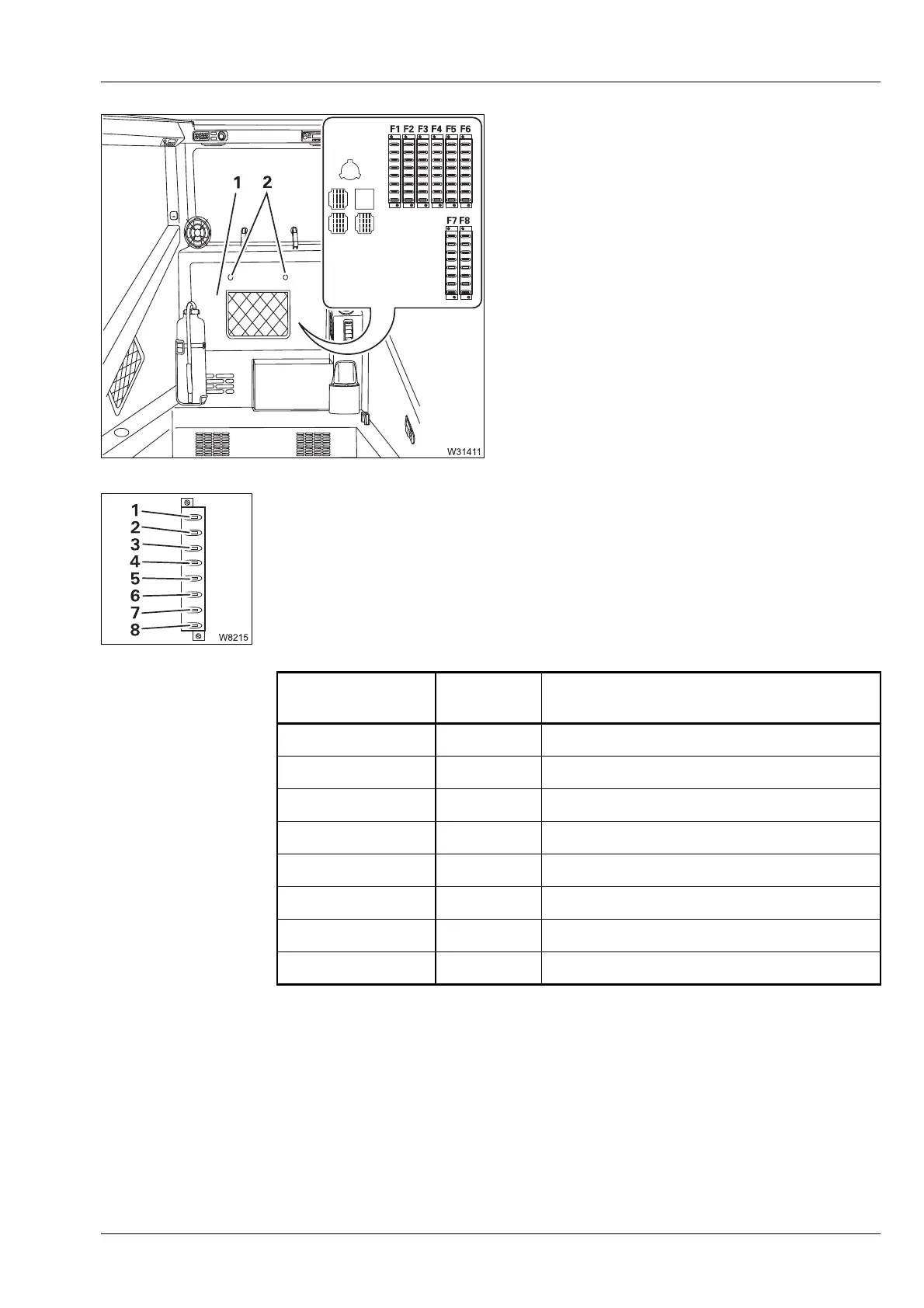

• Loosen the bolts (2) and remove the
cover (1).
The fuse groups F1 to F8 consist of eight fuses
each.
The following tables show the designations of
the individual fuses, including their amperage
and functions.
• Observe the instructions for fuse changes;
à p. 14 - 72.
The designations 1 to 8 in the tables correspond to their order from left to
right (fuse 1 is always the left fuse).
s
Designation Amper-
age (A)
Function
F1/1 15 Control unit UB 1 CCM 10
F1/2 15 Control unit UB 2 CCM 10
F1/3 15 Control unit UB SCM
F1/4 15 Control unit UB IOS 20
F1/5 5 Control unit UB UE IOS 21
F1/6 15 Control unit UB 1 IOS 22
F1/7 15 Control unit UB 2 IOS 22
F1/8 15 Control unit UB 1 IOL 30
