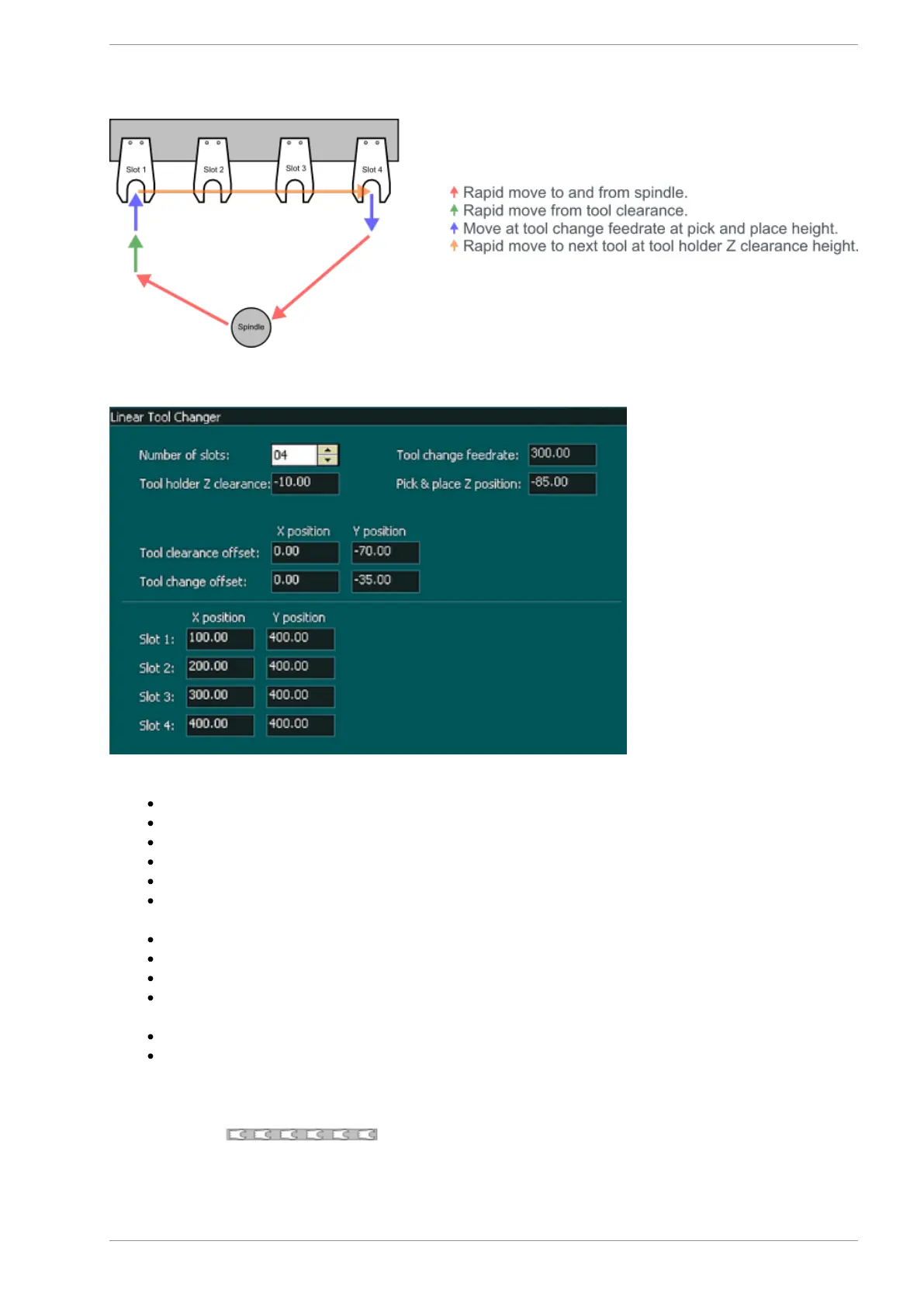

In the following example Tool 1 is in Slot1 and Tool 2 is in Slot 3
Current tool loaded Tool 1
Gcode T2 M06
Spindle rapids to Machine coordinate X100 Y330 (Tool clearance offset coordinate)
Rapid move to Machine coordinate X100 Y365 (Tool Change offset coordinate)
Move at feed rate 300mm/m at a Machine coordinate Z height of Z-85 to X100 Y400 (Slot 1
Coordinate)
Chuck clamp released and Z rises to Machine coordinate Z-10
Rapid move to X300 Y400 (Slot 3 Coordinate)
Z descends to Z-85 and chuck clamp locks
Move at feed rate 300mm/m at a Machine coordinate Z height of Z-85 to X300 Y365 (Tool Change
offset coordinate)
Z-axis ascends maximum height and rapids to original spindle position
Machining resumes.
