Midas PRO SERIES User Manual

DL444 analogue D-type I/O module 385
PRO Series Live Audio Systems
Owner’s Manual

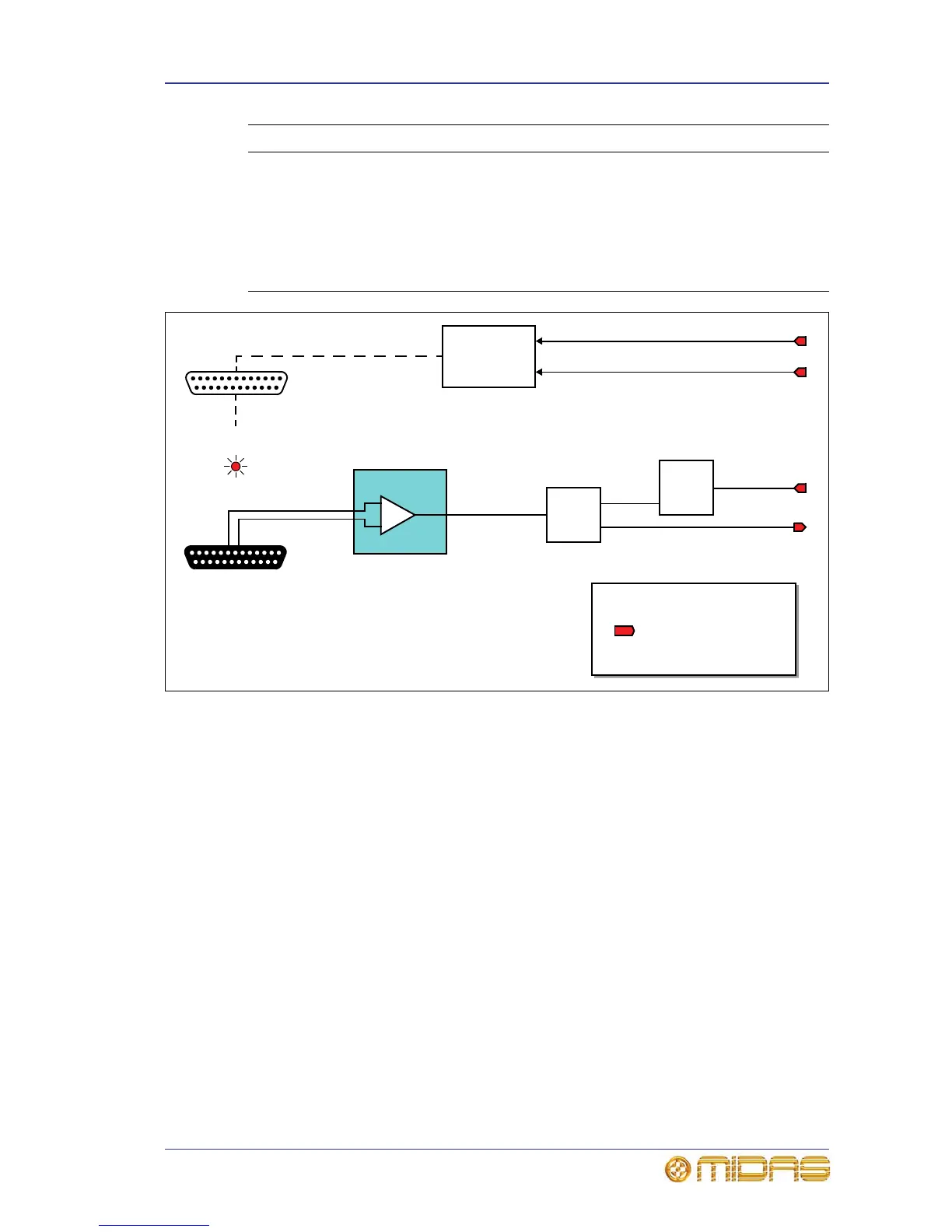

Functional block diagram of the a single (one of eight) analogue input of the DL444 module
4 remote status D-type socket. This socket is for connecting the I/Os to the
16 red LEDs to provide 48V phantom voltage status and mute status for the
inputs and outputs, respectively.
5 inputs D-type socket. This socket connects to up to eight analogue
mic/line inputs.
6 48V LED. There are eight 48V LEDs, which show the whether 48V
phantom voltage is on/off for each of the eight analogue inputs.
Item Description
REMOTE
CONTROL
INTERFACE
A/D
LOCAL
PLL
ADDRESS
DATA
SYSTEM
WORD CLOCK
DIGITAL
OUT
REMOTE +48V
STATUS LED
MIC/LINE INPUT
-2.5dB TO +45dBu
GAIN
“remote status”
CONNECTOR
“inputs”
CONNECTOR
DIGITAL BACKPLANE SIGNALS

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
