386 Appendix E: I/O Modules
PRO Series Live Audio Systems
Owner’s Manual

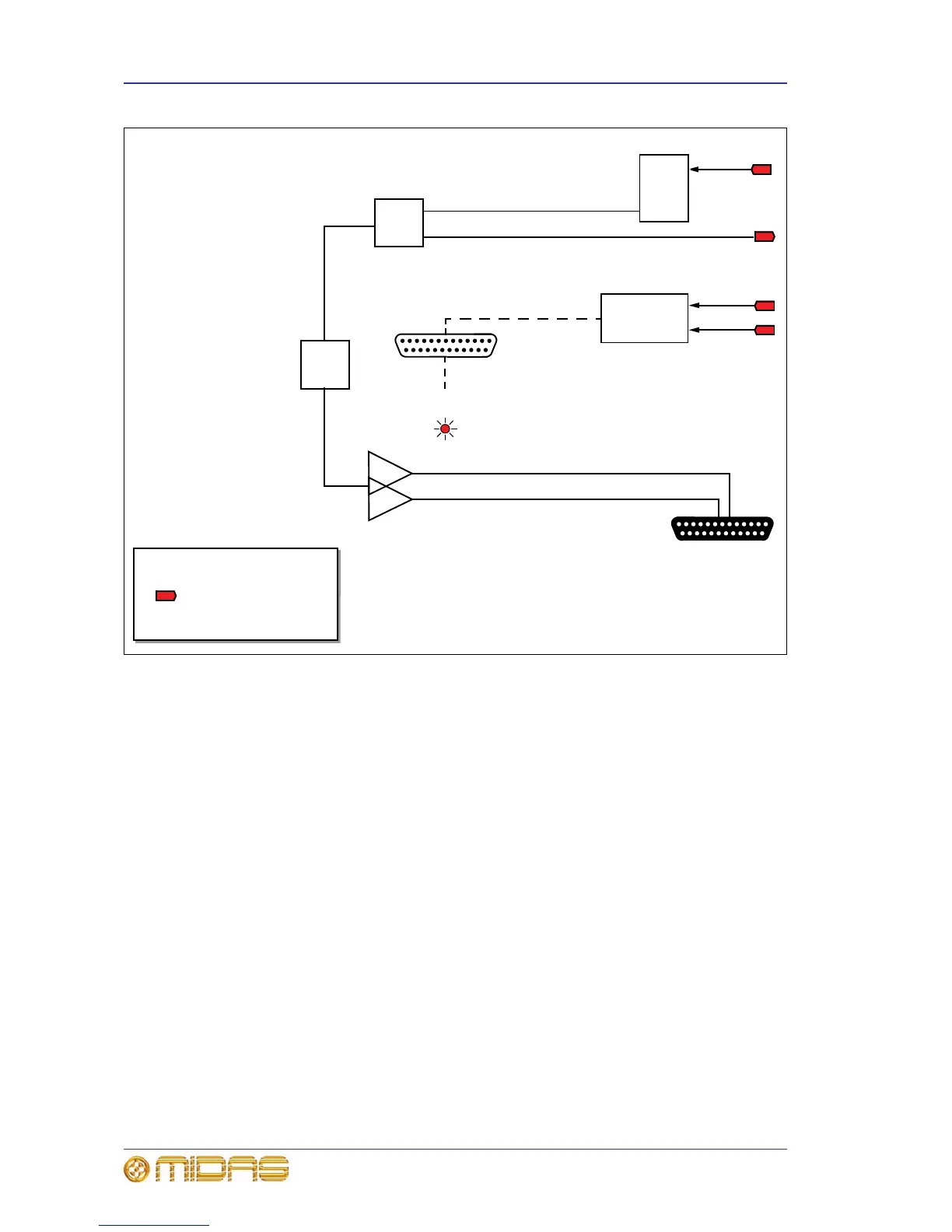

Functional block diagram of a single (one of eight) analogue output of the DL444 module
ADDRESS
DATA
SYSTEM
WORD CLOCK
LOCAL
PLL
D/A
Lo Pass
Filter
DIGITAL
IN
REMOTE
CONTROL
INTERFACE
DIGITAL BACKPLANE SIGNALS
+
-
“outputs”
CONNECTOR
REMOTE MUTE
STATUS LED
“remote status”
CONNECTOR
LINE OUT
LINE OUT
