System components 15
PRO Series Live Audio Systems
Owner’s Manual

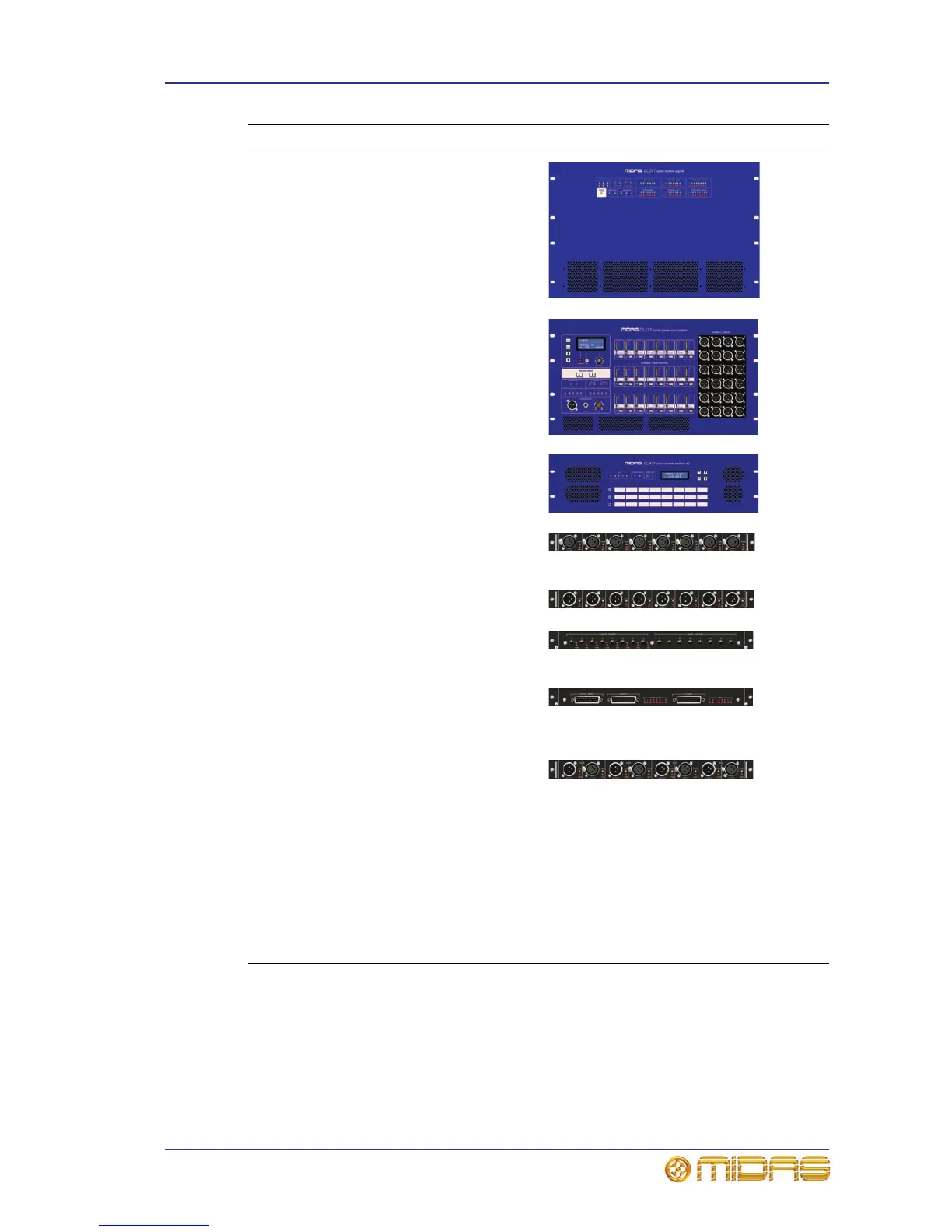

DL371 Audio System Engine This is
populated with five cards, the two empty
slots being blanked off. (If the optional
N+1 redundant DSP module card is
fitted, there will be six cards and one
empty slot.)
DL431 Mic Splitter This is a fixed
configuration I/O unit that has
24 mic/line inputs in a 5-way split.
DL451 Modular I/O This gives up to
24 configurable I/Os in a 3 x 8 XLR
modular format.
DL441 analogue input (mic) module
This is an analogue mic/line input "I"
card.
DL442 analogue output module This
is an analogue output "O" card.
DL443 analogue Jack I/O module
This is an 8-analogue line in and
8-analogue line out “TRS” card.
DL444 8 analogue mic in and 8
analogue line out module This is an
8-analogue mic in and 8-analogue line
out "D Sub" card.
DL452 AES/EBU input and output
module This is an AES/EBU input and
output "D" card.
Interconnecting cable
Interconnecting (N+1) rack Cat 5e
copper cable
N/A
Interconnecting cable
Interconnecting (dual redundant) gigabit
HyperMac Cat 5e copper cable, 100 m
long
N/A
Mains cable N/A
Item Example

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
